992527 (Pro-Turn 348) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 010000 & Above) Seat and Footrest Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

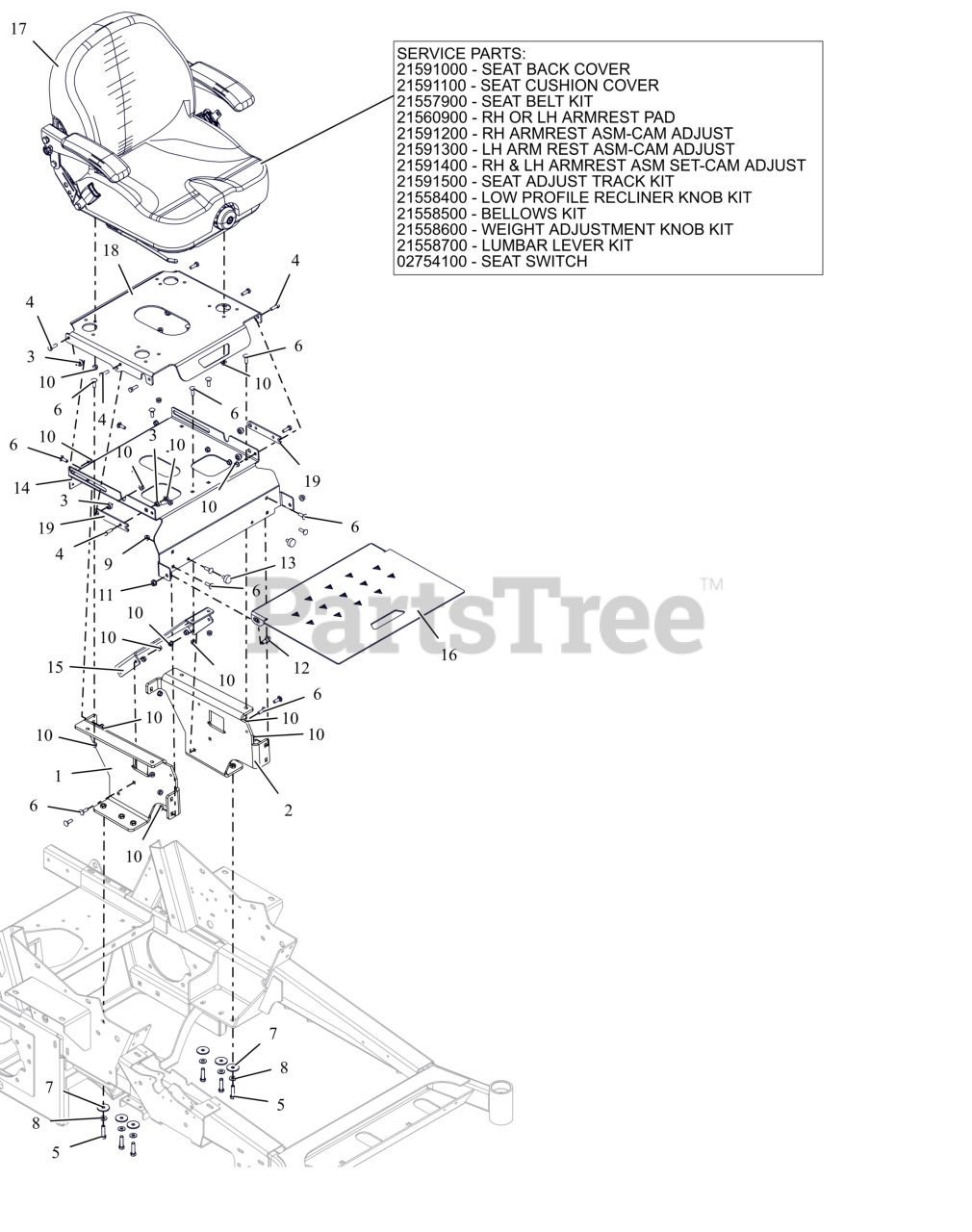

Seat and Footrest Parts Diagram

  • Title

1

Gravely 09674853

BRKT- SEATBOX RH SUPPORT - RED

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 09674953

BRKT- SEATBOX LH SUPPORT

$131.99

$

Usually ships in 4-12 days

0

3

Gravely 05501114

SPCR, BRG .315X.500X.481X.281

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.99

$

In Stock, only 3 left!

0

5

Gravely 05902104

BLT, HEX 0.375-16X1.5 GR8 ZCC

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06401138

WSHR, HDND 0.375X0.875X0.064 ZCC

$3.99

$

In Stock, only 3 left!

0

9

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 10

0

13

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

14

Gravely 09675053

BRKT- SEATBOX ISOLATOR MTG

$166.99

$

Usually ships in 4-12 days

0

15

Gravely 09675151

BRACE- CROSS

$81.99

$

Usually ships in 4-12 days

0

16

Gravely 09675253

FOOTREST

$131.99

$

Usually ships in 4-12 days

0

17

Gravely 09680600

SEAT- FULL SUSPENSION

$963.99

$

Usually ships in 4-12 days

0

17

Gravely 21591000

SEAT BACK COVER

Note: Component Service Part

$336.99

$

Usually ships in 4-12 days

0

17

Gravely 21591100

SEAT CUSHION COVER

Note: Component Service Part

$201.99

$

Usually ships in 4-12 days

0

17

Gravely 21557900

KIT, SEAT BELT

Note: Component Service Part

$93.99

$

Usually ships in 4-12 days

0

17

Gravely 21560900

PAD, ARMREST RH OR LH (HARD)

Note: Component Service Part

$41.99

$

Usually ships in 4-12 days

0

17

Gravely 21591200

RH ARMREST ASM - CAM ADJUST

Note: Component Service Part

$81.99

$

Usually ships in 0 days

0

17

Gravely 21591300

LH ARM REST ASM - CAM ADJUST

Note: Component Service Part

$81.99

$

Usually ships in 0 days

0

17

Gravely 21591400

RH & LH ARMREST ASM SET - CAM ADJUST

Note: Component Service Part

$

$

Currently unavailable

17

Gravely 21591500

SETA ADJUST TRACK KIT

Note: Component Service Part

$109.99

$

Usually ships in 4-12 days

0

17

Gravely 21558400

KIT, LOW PROFILE RECLINER KNOB

Note: Component Service Part

$44.99

$

Usually ships in 4-12 days

0

17

Gravely 21558500

KIT, BELLOWS

Note: Component Service Part

$84.99

$

Usually ships in 4-12 days

0

17

Gravely 21558600

KIT, WEIGHT ADJUSTMENT KNOB

Note: Component Service Part

$42.99

$

Usually ships in 4-12 days

0

17

Gravely 21558700

KIT, LUMBAR LEVER

Note: Component Service Part

$35.99

$

Usually ships in 4-12 days

0

17

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.99

$

In Stock, Qty 20+

0

18

Gravely 09697253

BRKT, SEATBOX TILT UP (RED)

$79.99

$

Usually ships in 0 days

0

19

Gravely 09697353

BRKT- SEATBOX TILT UP PIVOT

$11.99

$

Usually ships in 4-12 days

0
