992527 (Pro-Turn 348) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 020000 & Above) Deck, Spindles, Belts and Blades - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

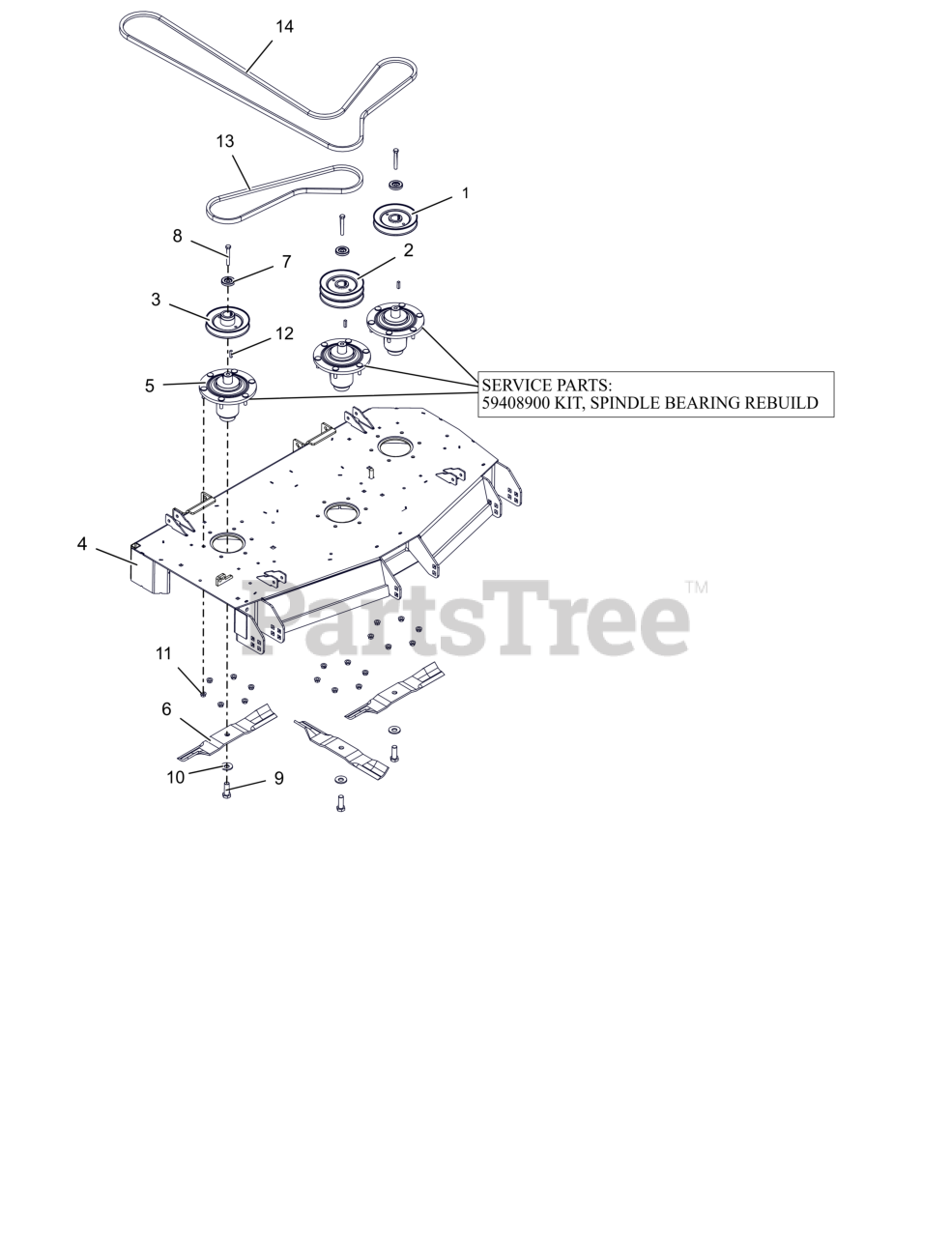

Deck, Spindles, Belts and Blades - 48" Parts Diagram

  • Title

1

Gravely 07355200

PULLEY, SGL - 1.18IDX5.74OD BLK

$

$

Currently unavailable

2

Gravely 07355100

PULLEY, DBL - 1.18IDX5.74OD BLK

$

$

Currently unavailable

3

Gravely 07355300

PULLEY, SGL - 1.18IDX5.74OD BLK

$

$

Currently unavailable

4

Gravely 59231500

WLDMT, 48 INCH SIDE DISCH DECK (RED) W/SAFETY DECALS

$

$

Currently unavailable

5

Gravely 59409800

KIT, SPINDLE ASM W/FASTENERS

$

$

Currently unavailable

5

Gravely 59408900

KIT, SPINDLE BEARING REBUILD KIT

Note: Service Component Part

$

$

Currently unavailable

6

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 30226600

RETAINER, SHEAVE

$

$

Currently unavailable

8

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

13

Gravely 07200035

V-BELT, B-COGGED

$55.99

$

In Stock, Qty 11

0

14

Gravely 07200729

V-BELT, HB RAW EDGE EPDM

$115.99

$

In Stock, only 2 left!

0
