992532 (Pro-Turn 352) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 045000 & Above) Deck, Spindles, Belts and Blades - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

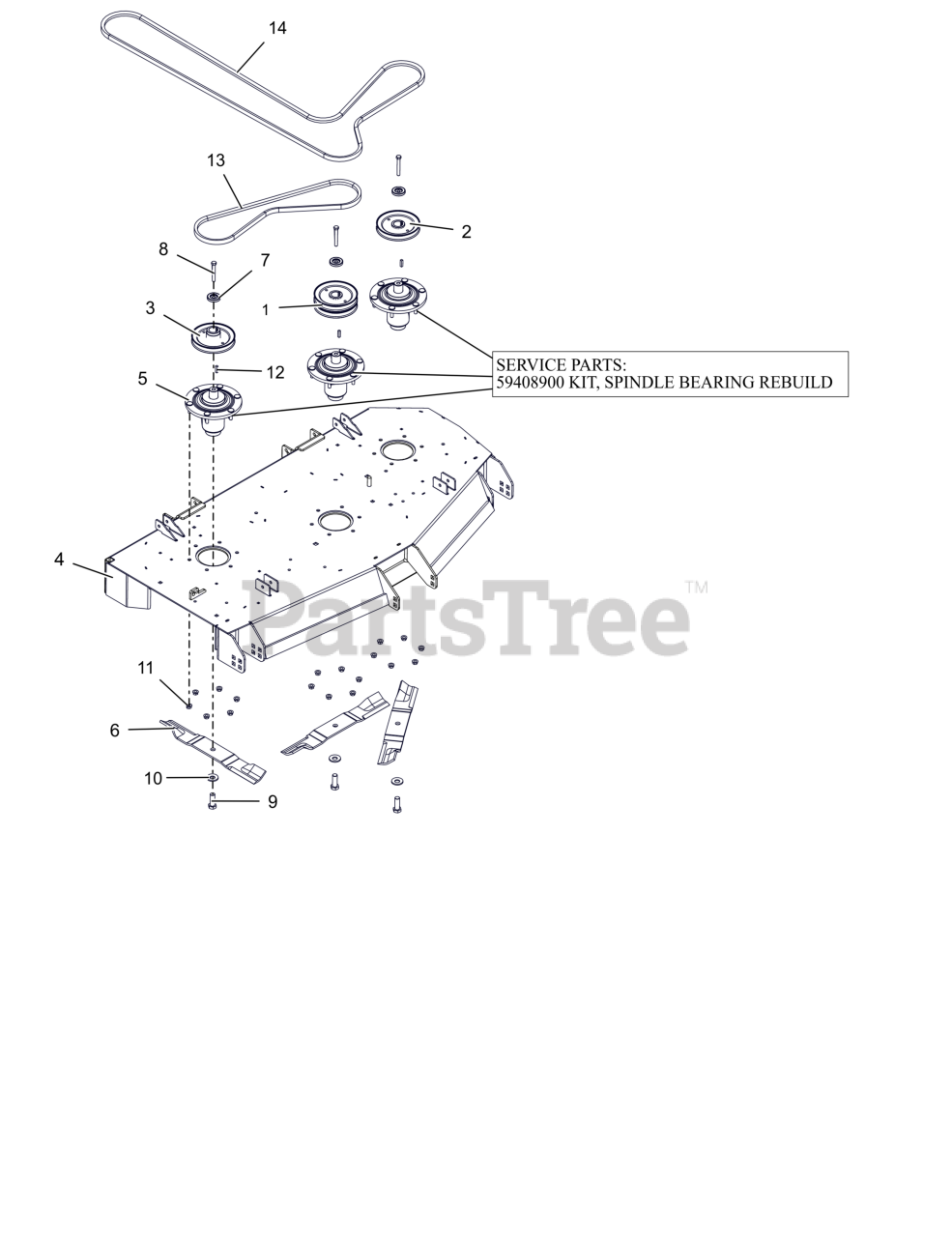

Deck, Spindles, Belts and Blades - 52" Parts Diagram

  • Title

1

Gravely 07353900

PULLEY, DBL - 1.18IDX5.75OD ZCC

$

$

Currently unavailable

2

Gravely 07354000

PULLEY, SGL - 1.18IDX5.75OD ZCC

$

$

Currently unavailable

3

Gravely 07354100

PULLEY, SGL - 1.18IDX5.75OD ZCC

$

$

Currently unavailable

4

Gravely 59231600

WLDMT, 52 INCH SIDE DISCH DECK (RED) W/SAFETY DECALS

$

$

Currently unavailable

5

Gravely 59409800

KIT, SPINDLE ASM W/FASTENERS

$

$

Currently unavailable

5

Gravely 59408900

KIT, SPINDLE BEARING REBUILD KIT

Note: Spindle Service Component

$

$

Currently unavailable

6

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 30226600

RETAINER, SHEAVE

$

$

Currently unavailable

8

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

13

Gravely 07200036

V-BELT, B-COGGED

$63.99

$

In Stock, Qty 20+

0

14

Gravely 07200904

V-BELT, B SECTION

$120.99

$

Usually ships in 4-12 days

0
