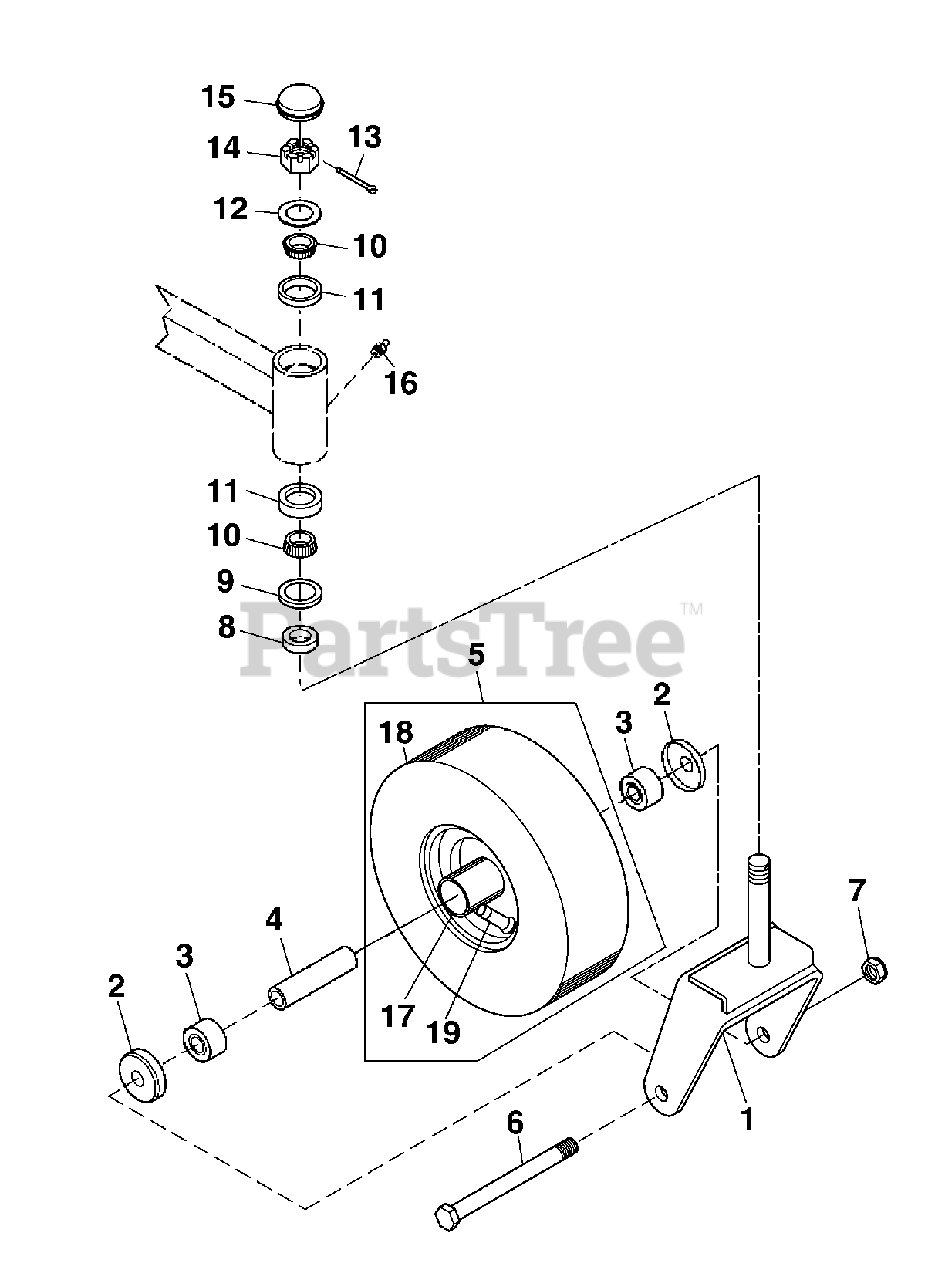

992600 (GCKW2352S) - Great Dane Chariot 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) front caster Parts Diagram

Chariot 52" Zero-Turn Mower, 23hp Kawasaki

front caster Parts Diagram

  • Title

1

Ariens 00200334

WLDT, YOKE CASTER S/O

$

$

Not available

2

Ariens TCU14490

CAP, WHEEL

$

$

Not available

3

Ariens AA21840

BALL BEARING

$

$

Not available

4

Ariens TCU13871

SPACER

$

$

Not available

5

Ariens TCA13769

WHEEL/TIRE ASSEM - CASTER

$139.99

$

Usually ships in 4-12 days

0

6

Ariens 19M7978

SCREW, HEX HEAD, METRIC

$

$

Not available

7

Ariens 14M7276

NUT,ISO4032,M16X2-10-ZN

$

$

Not available

8

Ariens TCU17863

SPACER, CASTER

$

$

Not available

9

Ariens E14625

SEAL, WHEEL BEARING

$16.99

$

Usually ships in 4-12 days

0

10

Ariens JD8933

CONE BEARING
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

11

Ariens 00145553

CUP, 1.00 ROLLER BEARING

$

$

Not available

12

Ariens 24H1801

WASHER,JDS24-1.016X1.5X.134-ST

$

$

Not available

13

Ariens 11M7083

PIN,COTTER,DIN94,3.2X50-ST-ZN

$

$

Not available

14

Ariens A12188

NUT, 1-14 CASTLE Y

$

$

Not available

15

Ariens M135582

CAP, DUST
(Superseded to 05117700)

$6.49

$

In Stock, only 2 left!

0

16

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

Usually ships in 4-12 days

0

17

Ariens TCU13604

RIM - 6" FRONT CASTER

$

$

Not available

18

Ariens TCU15970

TIRE 13 X 5.00-5, 4 PLY

$

$

Not available

19

Ariens AM30795

TIRE VALVE W/CAP-PUR

$

$

Not available
