992600 (GCKW2352S) - Great Dane Chariot 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) fuel delivery system Parts Diagram

Chariot 52" Zero-Turn Mower, 23hp Kawasaki

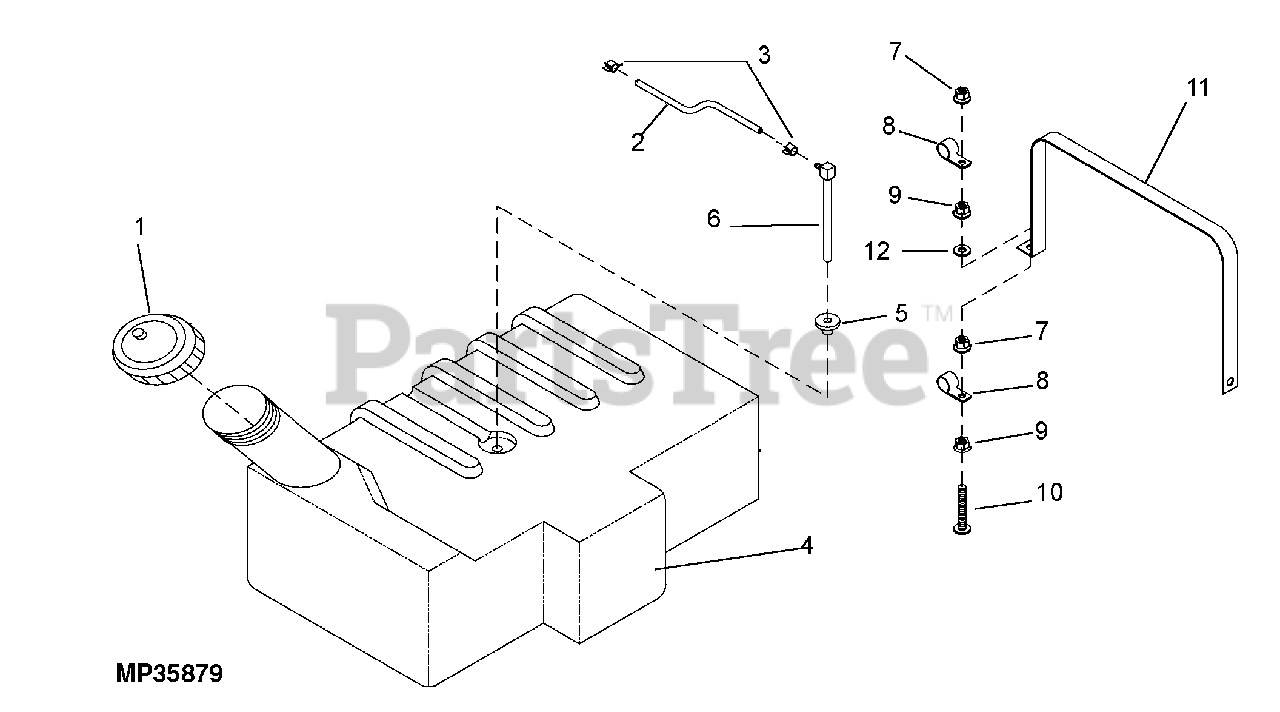

fuel delivery system Parts Diagram

  • Title

1

Ariens 00181251

CAP, FUEL S/O

$24.99

$

In Stock, Qty 10

0

2

Ariens TCU21265

HOSE, 1/4" ID LOW PERM FUEL 50

$

$

Not available

3

Ariens R56101

CLIP

$

$

Not available

4

Ariens GDA10012

TANK, FUEL - 8 GAL

$

$

Not available

5

Ariens D18144

OBS, REPLACED BY 181208O

$

$

Not available

6

Ariens GDU10026

PICKUP, FUEL

Note: (INCLUDES M145626)

$

$

Not available

7

Ariens D14081

LOCKNUT, 5/16-18 NYLOC Y

Note: (5/16")

$

$

Not available

8

Ariens E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

9

Ariens N10213

NUT,5/16-18 UNC-2B HX FLG SRTD

Note: (5/16")

$

$

Not available

10

Ariens D14235

BOLT, 5/16-18X2.50 CRG 5 Y

Note: (5/16"X 2-1/2")

$

$

Not available

11

Ariens GDU10028

STRAP, FUEL TANK

$

$

Not available

12

Ariens 24H1776

WASHER, 5/16 X 3/4 FLAT

$

$

Not available
