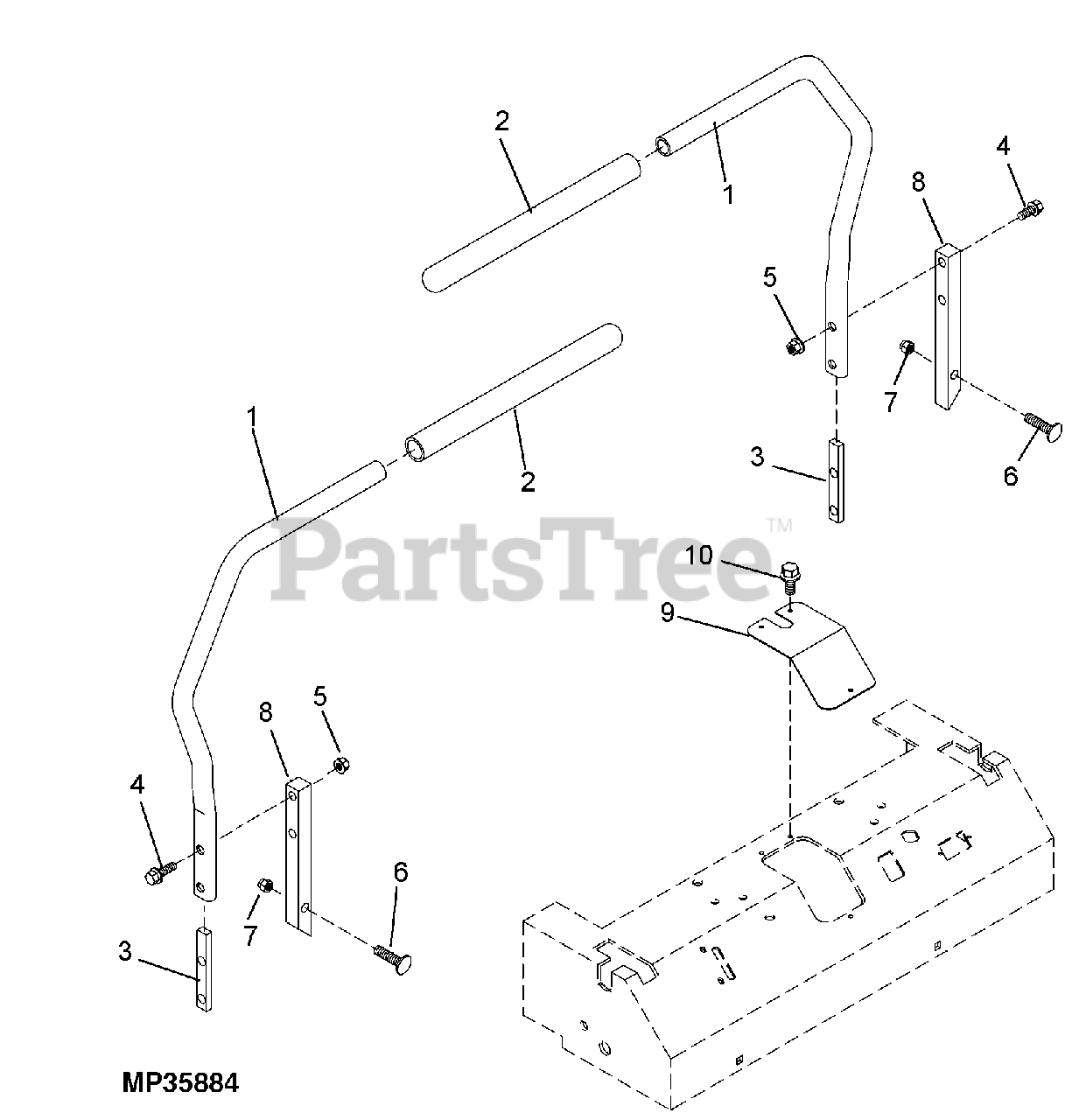

992600 (GCKW2352S) - Great Dane Chariot 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) over the lap control assembly Parts Diagram

Chariot 52" Zero-Turn Mower, 23hp Kawasaki

over the lap control assembly Parts Diagram

  • Title

1

Ariens TCU14989

TUBE CONTROL ARMS

$

$

Not available

2

Ariens M131171

GRIP, FOAM

$

$

Not available

3

Ariens GDU10047

SPACER

$

$

Not available

4

Ariens 19M8320

SCREW, FLANGED, METRIC

$

$

Not available

5

Ariens 14M7518

LOCKNUT,FL,ISO7044,M10X1.5-10-

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 03M7195

BOLT,RH,SQNECK,JDS137,M10X1.5X

$

$

Not available

7

Ariens M85516

LOCK NUT M10

$

$

Not available

8

Ariens TCU13271

ARM, CONTROL - SQUARE

$

$

Not available

9

Ariens GDU10275

COVER, CONSOLE

$

$

Not available

10

Ariens 37M7059

SCREW,SELFT,FL,JDS145,M5X.8X12

$

$

Not available
