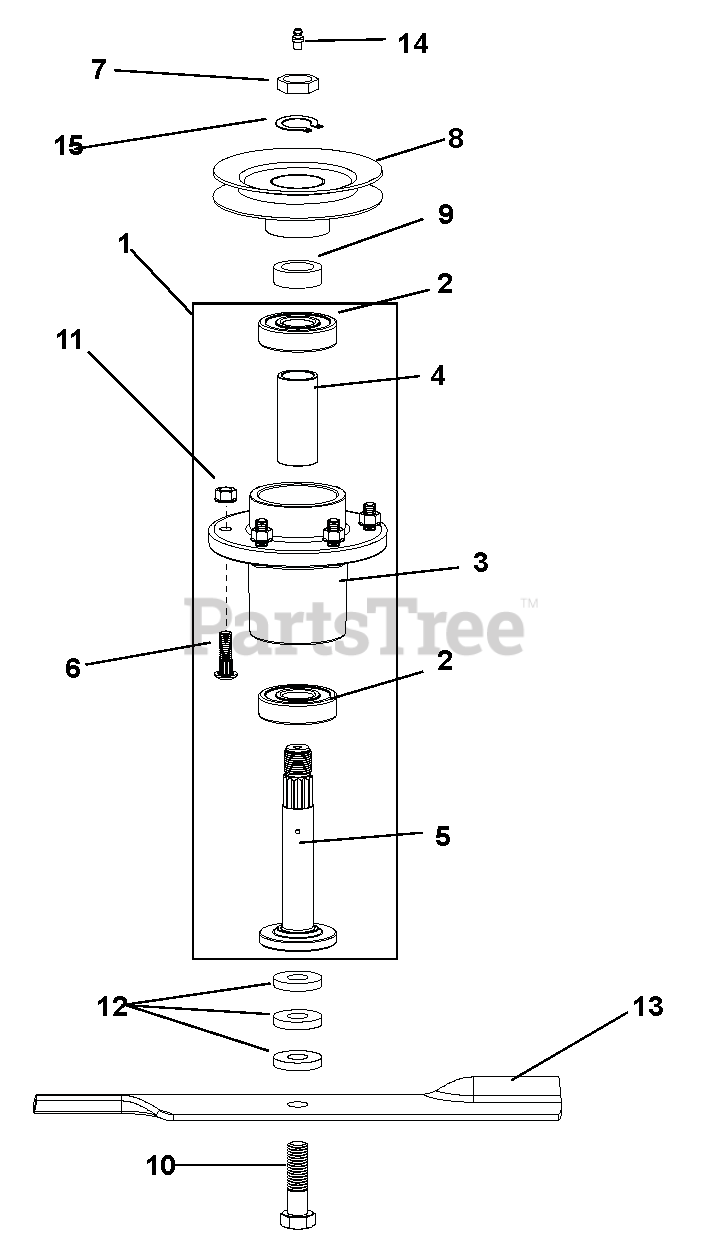

992600 (GCKW2352S) - Great Dane Chariot 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) spindle Parts Diagram

Chariot 52" Zero-Turn Mower, 23hp Kawasaki

spindle Parts Diagram

  • Title

1

Ariens 00200262

ASSY, SPINDLE S/O

Note: Includes Items 2, 3, 4, 5, 7, 10, 14, 15

$307.99

$

Usually ships in 4-12 days

0

2

Ariens 00200046

BEARING, 6305LLC

$30.99

$

In Stock, only 2 left!

0

3

Ariens 00200042

HOUSING, SPINDLE W/STUDS

$100.99

$

Usually ships in 4-12 days

0

4

Ariens 00200044

SPACER, 1.250X1.000X2.780

$32.99

$

Usually ships in 4-12 days

0

5

Ariens 00200196

SHAFT, SPINDLE 3/4-16

$

$

Not available

6

Ariens 00200045

BOLT, 3/8-16X1.25RDHD RIBNKS/O

$7.99

$

Usually ships in 4-12 days

0

7

Ariens 00967333

NUT, 3/4-16 FLANGE GR8 Y
(Superseded to 06500031)

Note: (Special)

$4.99

$

In Stock, Qty 16

0

8

Ariens D18209

PULLEY, SMALL W/TALL HUB

$97.99

$

In Stock, only 1 left!

0

8

Ariens D18084

SPLINE, SPINDLE PULLEY OFFSET
(Superseded to 07329667)

$103.99

$

In Stock, only 1 left!

0

8

Ariens D18211

HUB, LARGE PULLEY/ TALL
(Superseded to 07328467)

$121.99

$

In Stock, only 1 left!

0

9

Ariens D13024

SPACER, SPINDLE TOP-PULLEY

$15.99

$

In Stock, only 3 left!

0

10

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.99

$

In Stock, Qty 7

0

11

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

12

Ariens 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$7.99

$

In Stock, only 4 left!

0

13

Ariens 00878100

16.5" BLADE, 48" DECK
(Superseded to GDU10230)

$30.99

$

In Stock, Qty 5

0

13

Ariens 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

$33.99

$

In Stock, Qty 20+

0

14

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

15

Ariens 00200263

RING RETAINER S/O

$7.99

$

Usually ships in 4-12 days

0
