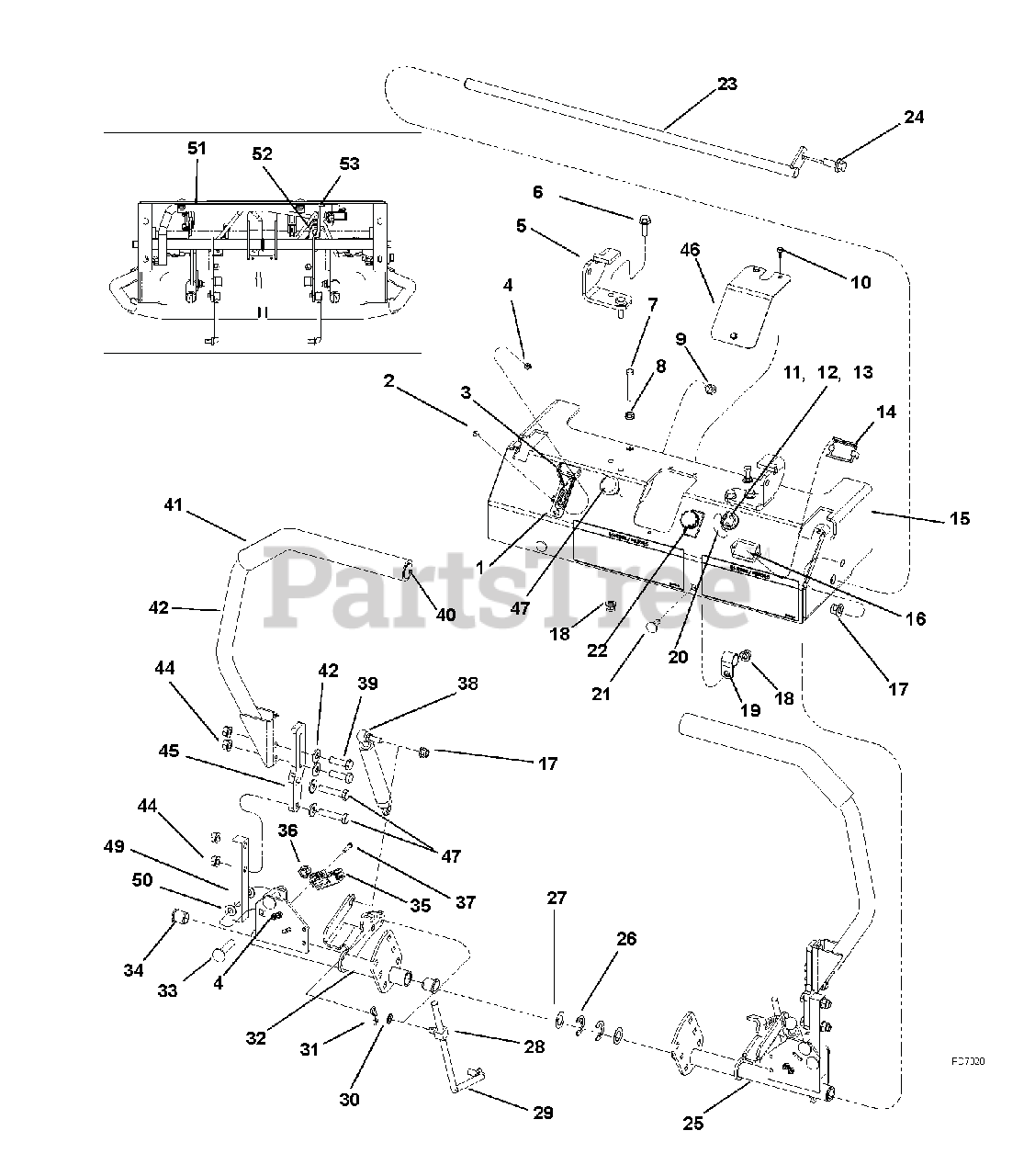

992610 (GCHKW2352S) - Great Dane Chariot 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) Steering Levers Parts Diagram

Chariot 52" Zero-Turn Mower, 23hp Kawasaki

Steering Levers Parts Diagram

  • Title

1

Ariens D28167

DECAL, CONSOLE

$

$

Not available

2

Ariens 21H1158

SCREW,.164X.500 ZN RD HD MACH

$

$

Not available

3

Ariens 00200591

CABLE, THROTLE 56.5"

$38.99

$

In Stock, only 2 left!

0

4

Ariens M63431

#8.32 ELASTIC STOP NUT

$

$

Not available

5

Ariens 03867651

BRACKET, LH, SEAT PLATE

$

$

Not available

5

Ariens 03867751

BRACKET, RH, SEAT PLATE

$

$

Not available

6

Ariens 19M7867

SCREW,HEX,FL,JDS123,M8X1.25X25

$

$

Not available

7

Ariens D14133

CAP SCREW, HEX HEAD

$

$

Not available

8

Ariens N10217

SPINLOCK NUT - 1/4

$

$

Not available

9

Ariens 14H1080

NUT, .375 UNF2B HEX JDS14 8 ZN

$

$

Not available

10

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.99

$

Usually ships in 4-12 days

0

11

Ariens TCU17401

KEY, IGNITION A880

$8.49

$

Usually ships in 4-12 days

0

12

Ariens M110159

NUT, KNURLED

$

$

Not available

13

Ariens TCA15075

SWITCH, IGNITION KEY

$39.99

$

In Stock, only 2 left!

0

14

Ariens TCU13098

CLIP, ZTRAK HOURMETER RETAININ

$

$

Not available

15

Ariens 03867351

PLATE, CONSOLE GDANE

$

$

Not available

16

Ariens AM129887

METER, HOUR - LCD

$

$

Not available

17

Ariens 14M7400

LOCKNUT,FL,ISO7043,M10X1.5-10-

$

$

Not available

18

Ariens 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

19

Ariens E53830

P-CLIP, .750 INSULATED

$4.99

$

Usually ships in 4-12 days

0

20

Ariens M127610

LABEL, IGNITION KEY

$

$

Not available

21

Ariens 03M7184

BOLT, M8X1.25X20 CRG 8.8 Y

$

$

Not available

22

Ariens AM118802

SWITCH, PTO (PULL/PUSH)

Note: (PULL/PUSH)

$28.99

$

In Stock, only 1 left!

0

23

Ariens TCA13253

PIVOT,CONTROL SHAFT-PLATED

$

$

Not available

24

Ariens 19M7785

SCREW,HEX,FL,JDS123,M10X1.5X25

$

$

Not available

25

Ariens 03867551

WLDT, PIVOT CONTROL LH BLCK

$

$

Not available

26

Ariens P46402

RING, RETAINING

$

$

Not available

27

Ariens 00200397

WASHER, .627X1.09X.030 THST Y

$

$

Not available

28

Ariens D33002

SWIVEL, 3/8-24

$12.99

$

Usually ships in 4-12 days

0

29

Ariens TCU17400

ROD, CONTROL

$

$

Not available

30

Ariens 24M7388

SHIM, CIRCULAR

$

$

Not available

31

Ariens J16931

PIN, HAR .094X1.53 5/16-1/2 Y

$

$

Not available

32

Ariens 03867451

WLDT, PIVOT CONTROL RH BLCK

$

$

Not available

33

Ariens 03M7195

BOLT,RH,SQNECK,JDS137,M10X1.5X

$

$

Not available

34

Ariens M44508

BUSHING, NYLON

$

$

Not available

35

Ariens 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$21.99

$

In Stock, only 2 left!

0

36

Ariens 14M7517

LOCKNUT, M10X1.50 NYLOC Y

$

$

Not available

37

Ariens D14288

SCREW, 8-32X .75 PAN PHL Y

$

$

Not available

38

Ariens TCA15322

ABSORBER, ASM. WITH BALL STUD

$

$

Not available

39

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$2.49

$

In Stock, Qty 20+

0

40

Ariens 00180639

PLUG, 7/8" END

$

$

Not available

41

Ariens 00180617

FOAM GRIP

$

$

Not available

42

Ariens 03867151

WLDT, CONTROL LEVER PAINTED

$

$

Not available

43

Ariens 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

44

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

45

Ariens 03818251

PLATE, HANDLE HEIGHT

$

$

Not available

46

Ariens 03865351

COVER, CONSOLE

$

$

Not available

47

Ariens D38146

CABLE, CHOKE57.0"

$

$

Not available

48

Ariens 00960049

BOLT, 3/8-16X1.75 HEX 5 Y
(Superseded to 05958500)

$2.99

$

In Stock, Qty 20+

0

49

Ariens 03866900

ARM, CONTROL CONSOLE

$

$

Not available

50

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$1.49

$

In Stock, Qty 20+

0

51

Ariens GDA10037

WIRING HARNESS

$417.99

$

Usually ships in 4-12 days

0

52

Ariens 24M7349

WASHER,M21X37X3 DIN125T2 300HV

$

$

Not available

53

Ariens 00967001

CABLE TIE, .31 X 14.6 - BLACK

$

$

Not available
