992700 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000172 & Above) Engine And Drive Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

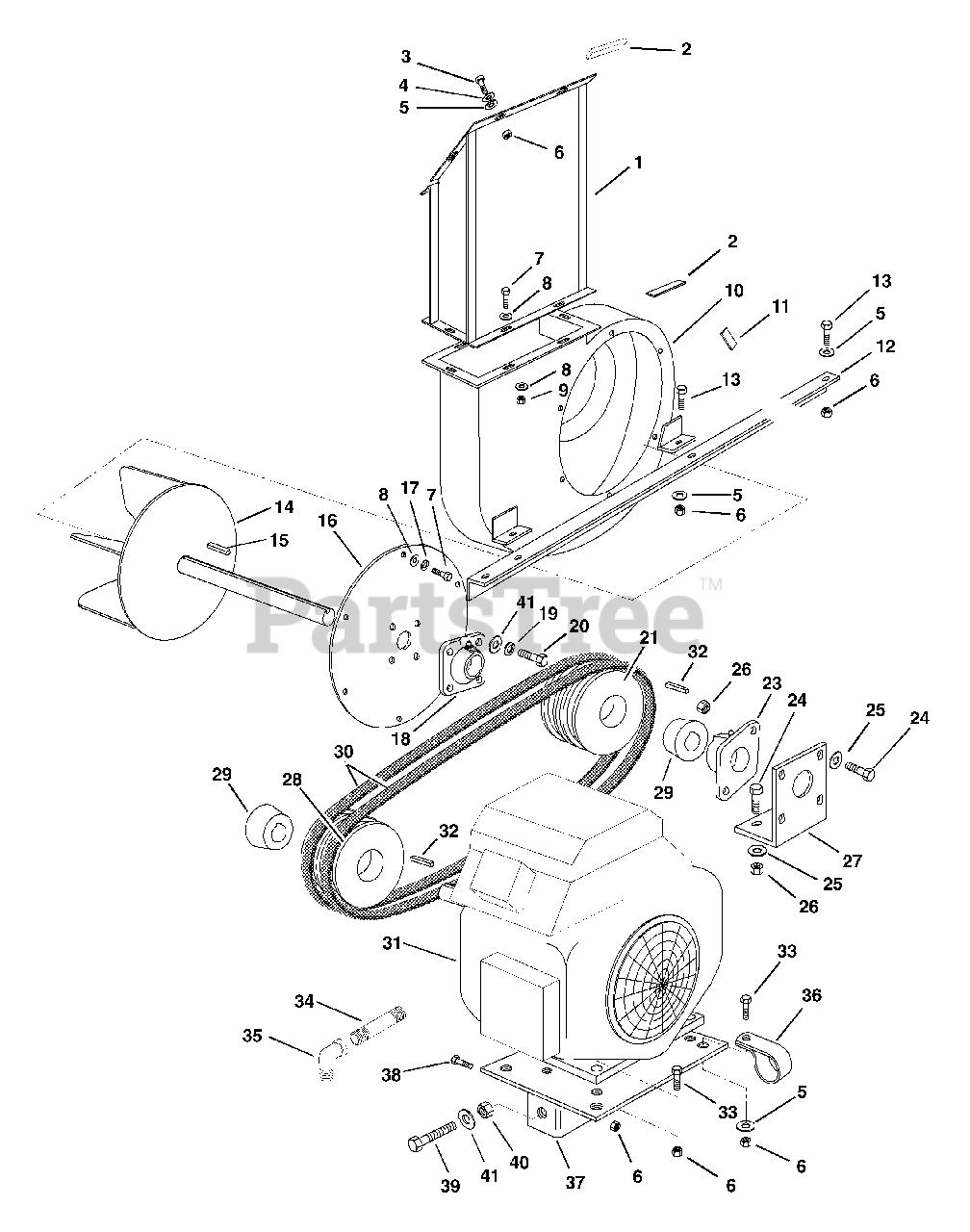

Engine And Drive Parts Diagram

  • Title

1

Gravely 04203653

Discharge Chute Weldment

$

$

Not available

2

Gravely 00915900

Gasket

$

$

Not available

3

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

4

Gravely 06436400

Washer-Flat-Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 14

0

5

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

8

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04200653

Blower Weldment
(Superseded to 02074553)

$

$

Not available

11

Gravely 00916400

Gasket
(Superseded to 02072000)

$

$

Not available

12

Gravely 04202653

Blower Support Beam

$

$

Not available

13

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04200700

Fan
(Superseded to 02075600)

$782.99

$

Usually ships in 4-12 days

0

15

Gravely 06605600

Key-Square .38 x .38 x 2.00

$

$

Not available

16

Gravely 04200553

Fan Cover Weldment
(Superseded to 02074353)

$

$

Not available

17

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05418600

Bearing

$96.99

$

Usually ships in 4-12 days

0

19

Gravely 06309300

Washer-Lock .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

20

Gravely 05963800

Bolt-Hex .44-14 x 1.25 Grade 5

$2.99

$

In Stock, only 1 left!

0

21

Gravely 07315300

Pulley - V 2G 3V 6.5 Taper Lock
(Superseded to 07300310)

$162.99

$

In Stock, only 1 left!

0

22

Gravely 04201900

Bushing, Driven Sheave
(Superseded to 05500439)

$68.99

$

In Stock, only 1 left!

0

23

Gravely 05418500

Bearing, 2-Bolt
(Superseded to 05400234)

$96.99

$

Usually ships in 4-12 days

0

24

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

25

Gravely 06442000

Washer-Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

26

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

27

Gravely 04202451

Bearing Holder
(Superseded to 05400251)

$

$

Not available

28

Gravely 07315400

Pulley - V 2G 3V 5.5 Taper Lock
(Superseded to 07300311)

$

$

Not available

29

Gravely 04201800

Bushing, Drive Sheave
(Superseded to 05500438)

$62.99

$

Usually ships in 4-12 days

0

30

Gravely 07218300

V-Belt (Matched Set of 2)
(Superseded to 07200329)

Note: (Matched Set of 2)

$74.99

$

Usually ships in 4-12 days

0

31

Gravely 08242800

Engine-18 HP Kohler Command

Note: (Model 700)

$

$

Not available

31

Gravely 08256900

Engine-18 HP Robin Pro Vac

Note: (Model 701)

$

$

Not available

32

Gravely 06603400

Key-Square .25 x .25 x 1.25 SAE

$3.99

$

In Stock, only 1 left!

0

33

Gravely 05957900

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

34

Gravely 03475800

Nipple
(Superseded to 07000830)

$17.99

$

Usually ships in 4-12 days

0

35

Gravely 07023500

Elbow .375-18 NPTF

$

$

Not available

36

Gravely 06909400

P-Clamp

$3.49

$

In Stock, Qty 11

0

37

Gravely 09271700

Engine Base Weldment
(Superseded to 09271751)

$

$

Not available

38

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

39

Gravely 05962200

Bolt-Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

40

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

41

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 15

0
