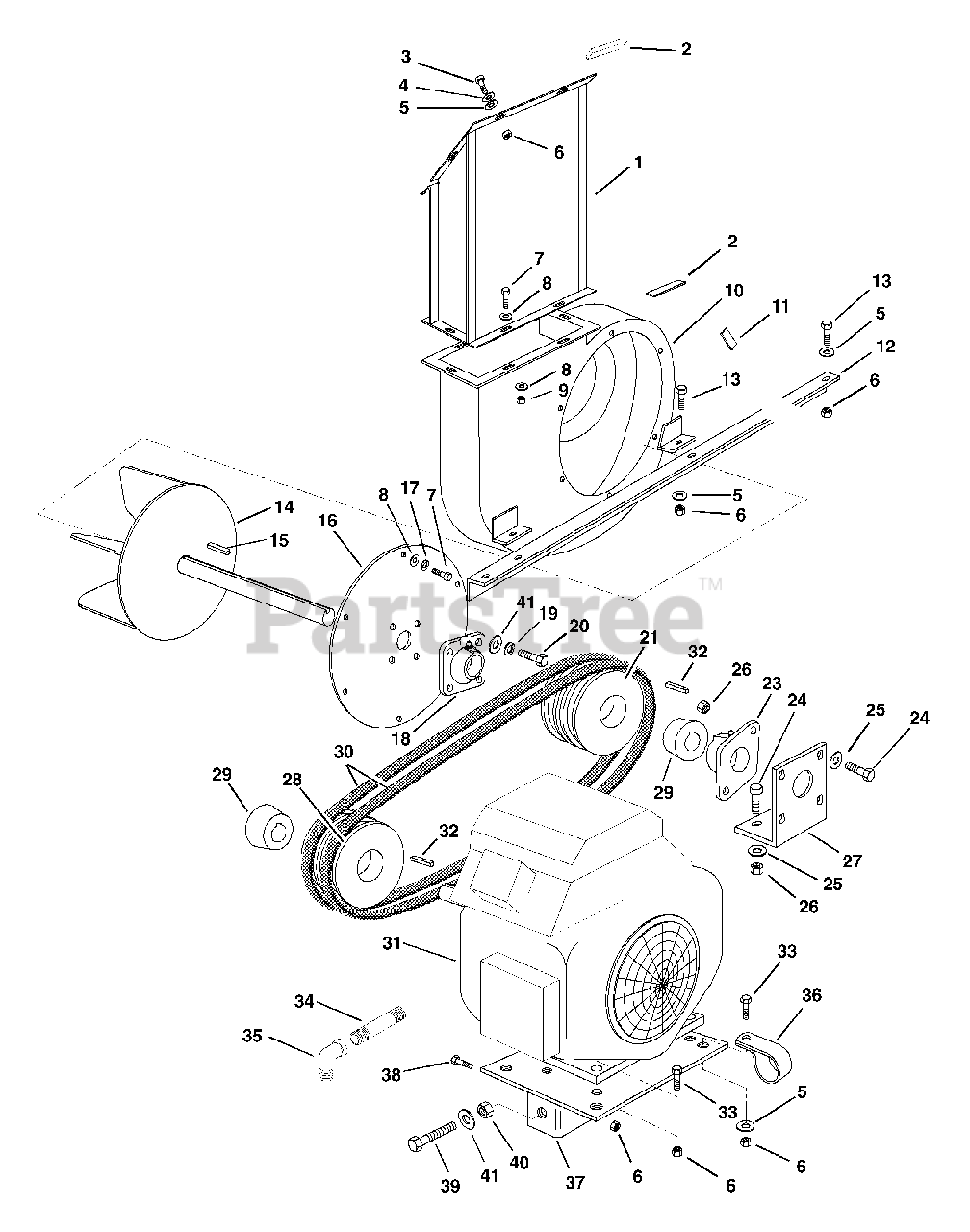

992700 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000172 & Above) Engine And Drive Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

Engine And Drive Parts Diagram

  • Title

1

Gravely 04203653

DISCHARGE CHUTE WELDMENT
(Superseded to 04203600)

$

$

Not available

2

Gravely 00915900

GASKET

$

$

Not available

3

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

4

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 04200653

BLOWER WELDMENT -- LOCKE
(Superseded to 02074553)

$

$

Not available

11

Gravely 00916400

GASKET-FOAM W/ADHESIVE BACK
(Superseded to 02072000)

$

$

Not available

12

Gravely 04202653

BLOWER SUPPORT BEAM
(Superseded to 04202600)

$

$

Not available

13

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04200700

FAN
(Superseded to 02075600)

$798.99

$

Usually ships in 4-12 days

0

15

Gravely 06605600

KEY-STR .38X2.0X.38

$

$

Not available

16

Gravely 04200553

FAN COVER WELDMENT
(Superseded to 02074353)

$

$

Not available

17

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05418600

BRG 4 BLT

$106.99

$

Usually ships in 4-12 days

0

19

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

21

Gravely 07315300

PLY-V 2G 3V 6.5 TAPER LOCK
(Superseded to 07300310)

$162.99

$

In Stock, only 1 left!

0

22

Gravely 04201900

DRIVEN SHEAVE BUSHING
(Superseded to 05500439)

$

$

Not available

23

Gravely 05418500

BRG 2 BLT
(Superseded to 05400234)

$106.99

$

Usually ships in 4-12 days

0

24

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

25

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

27

Gravely 04202451

BEARING HOLDER
(Superseded to 05400251)

$

$

Not available

28

Gravely 07315400

PLY-V 2G 3V 5.6 TAPER LOCK
(Superseded to 07300311)

$

$

Not available

29

Gravely 04201800

DRIVE SHEAVE BUSHING
(Superseded to 05500438)

$

$

Not available

30

Gravely 07218300

V-BELT MATCHED SET OF TWO
(Superseded to 07200329)

Note: (Matched Set of 2)

$75.99

$

Usually ships in 4-12 days

0

31

Gravely 08242800

ENG 18HP KOHLER COMD. PS-62556

Note: (Model 700)

$

$

Not available

Gravely 08256900

ENGINE 18HP ROBIN EH650DA7510

Note: (Model 701)

$

$

Not available

32

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

33

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

34

Gravely 03475800

NIPPLE
(Superseded to 07000830)

$18.99

$

Usually ships in 4-12 days

0

35

Gravely 07023500

ELBOW .375-18 NPTF

$

$

Not available

36

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0

37

Gravely 09271700

BASE-ENGINE WELD ASSY
(Superseded to 09271751)

$

$

Not available

38

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

39

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

40

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

41

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0
