992700 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000172 & Above) Scoop Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

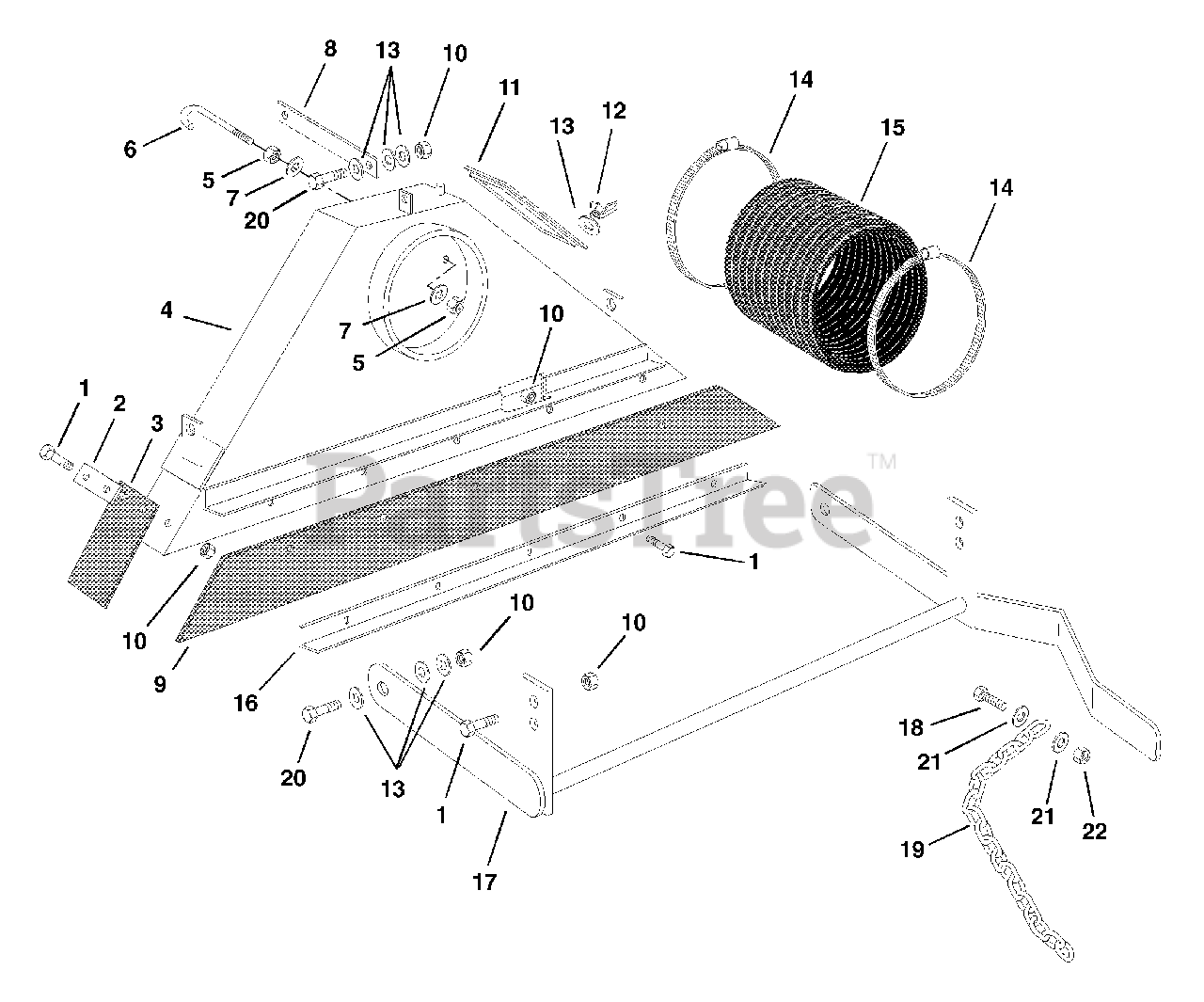

Scoop Parts Diagram

  • Title

1

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 04203751

End, Bolting Strip
(Superseded to 02083851)

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 04205600

Flex Skirt End Cap
(Superseded to 02085300)

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 04200853

Scoop Weldment

$

$

Not available

5

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 04205800

J-Bolt
(Superseded to 05900613)

$

$

Not available

7

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

8

Gravely 04203351

Scoop Stabilizer Brace
(Superseded to 02083251)

$

$

Not available

9

Gravely 04203500

Flex Skirt-Front
(Superseded to 02952300)

$102.99

$

Usually ships in 4-12 days

0

9

Gravely 04205700

Flex Skirt-Rear
(Superseded to 02085400)

$

$

Not available

10

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 04200953

Scoop Side Cover

$

$

Not available

12

Gravely 040028

Nut-Wing .375-16
(Superseded to 06502300)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

14

Gravely 06943500

Clamp, Hose #200 13 inch
(Superseded to 02085700)

$

$

Not available

15

Gravely 04202900

Flex Hose
(Superseded to 02078700)

$

$

Not available

16

Gravely 04201051

Retainer Strip
(Superseded to 02077651)

$60.99

$

Usually ships in 4-12 days

0

17

Gravely 04201251

Scoop Lift Weldment
(Superseded to 02077751)

$

$

Not available

18

Gravely 04204200

Bolt-Hex .44-14 x 1.25 Grade 5
(Superseded to 02084000)

$15.99

$

Usually ships in 4-12 days

0

19

Gravely 04205000

10 Link 1/4 inch Chain
(Superseded to 02084900)

$

$

Not available

20

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 6

0

21

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 16

0

22

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0
