Parts Home > Gravely > Blowers & Vacuums > 992700 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000172 & Above) > Trailer Frame And Wheels

992700 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000172 & Above)

Pro-Vac Vacuum, 18hp Kohler Command

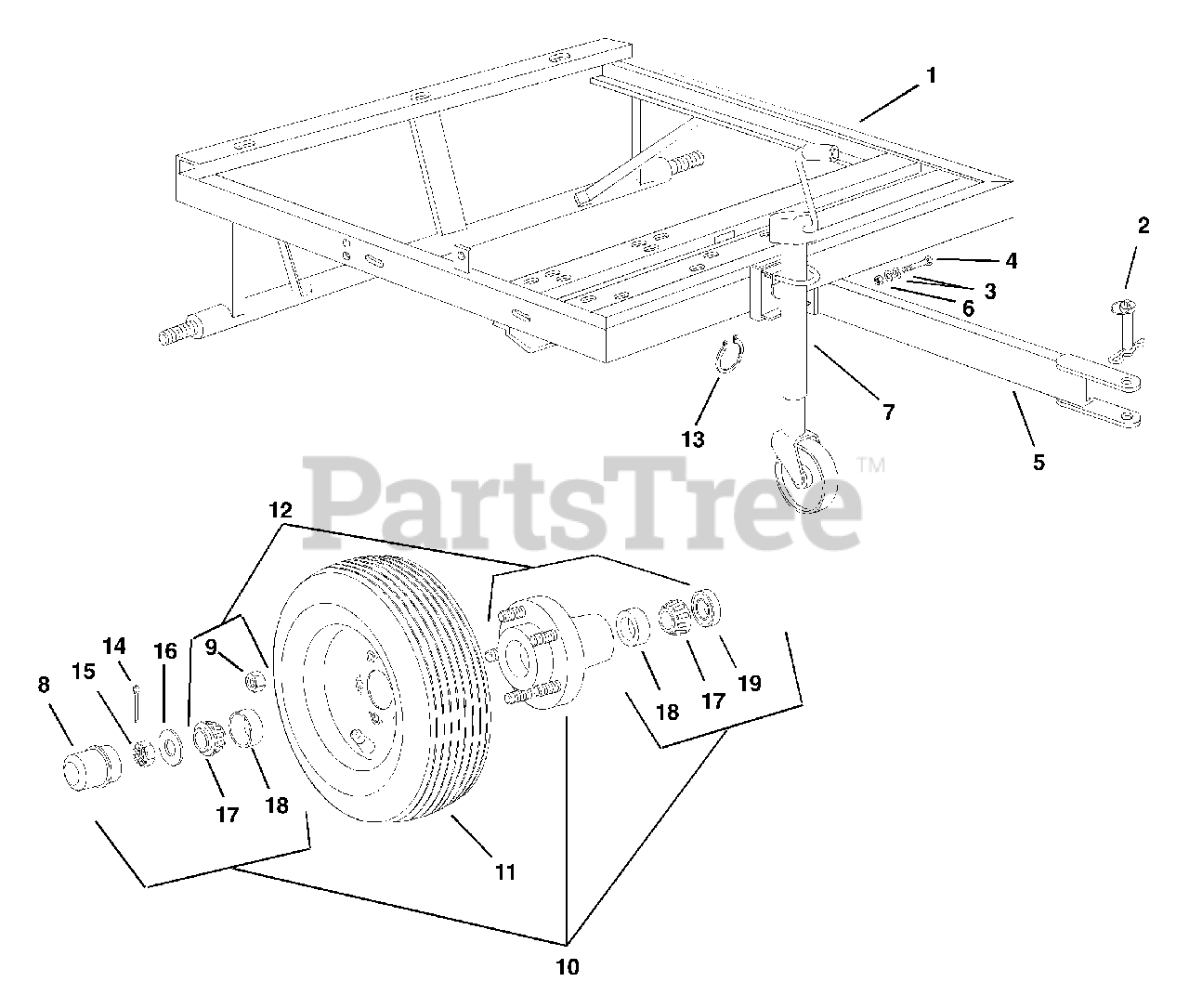

992700 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000172 & Above) > Parts Diagrams (7) > Trailer Frame And Wheels

  • Title
09270600

1

Frame-Trailer Weldment

Part# 09270600 (Superseded to 02088453)

OEM Warranty Repair Part for Gravely

Not available

09200100

2

Hitch Pin, 1.00

Part# 09200100 (Superseded to 02087300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

06442900

3

Washer-Flat-Steel .688 x 1.75 x .134

Part# 06442900

OEM Warranty Repair Part for Gravely

Not available

05963900

4

Bolt-Hex .62-11 x 3.00 Grade 5

Part# 05963900 (Superseded to 05900922)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

04200251

5

Tongue Weldment

Part# 04200251

OEM Warranty Repair Part for Gravely

Not available

06535300

6

Nut-Locking-Center .62-11

Part# 06535300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

04201300

7

Jack

Part# 04201300

OEM Warranty Repair Part for Gravely

Not available

04207700

8

Dust Cap

Part# 04207700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

59200200

9

Kit, Wheel Nut

Part# 59200200

OEM Warranty Repair Part for Gravely

Not available

59200100

10

Kit, Hub Complete 1050 Vac

Part# 59200100

Note: (Contains Items 8, 12, 14-16)

OEM Warranty Repair Part for Gravely

Not available

07136200

11

Tire & Wheel Assembly

Part# 07136200

OEM Warranty Repair Part for Gravely

Not available

04201400

12

Hub Assembly

Part# 04201400

OEM Warranty Repair Part for Gravely

Not available

05717900

13

Ring-Retaining-External 2.5000 x .078

Part# 05717900

OEM Warranty Repair Part for Gravely

Not available

06712600

14

Pin-Cotter .12 x 1.25

Part# 06712600

OEM Warranty Repair Part for Gravely

Not available

06519000

15

Nut-Slotted 1.00-14

Part# 06519000

OEM Warranty Repair Part for Gravely

Not available

06427900

16

Washer-Flat-Steel 2.00 x 1.12 x .148

Part# 06427900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05404700

17

Cone, Bearing

Part# 05404700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.71

05404600

18

Bearing, Cup

Part# 05404600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

05614300

19

Seal

Part# 05614300 (Superseded to 05600313)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48
