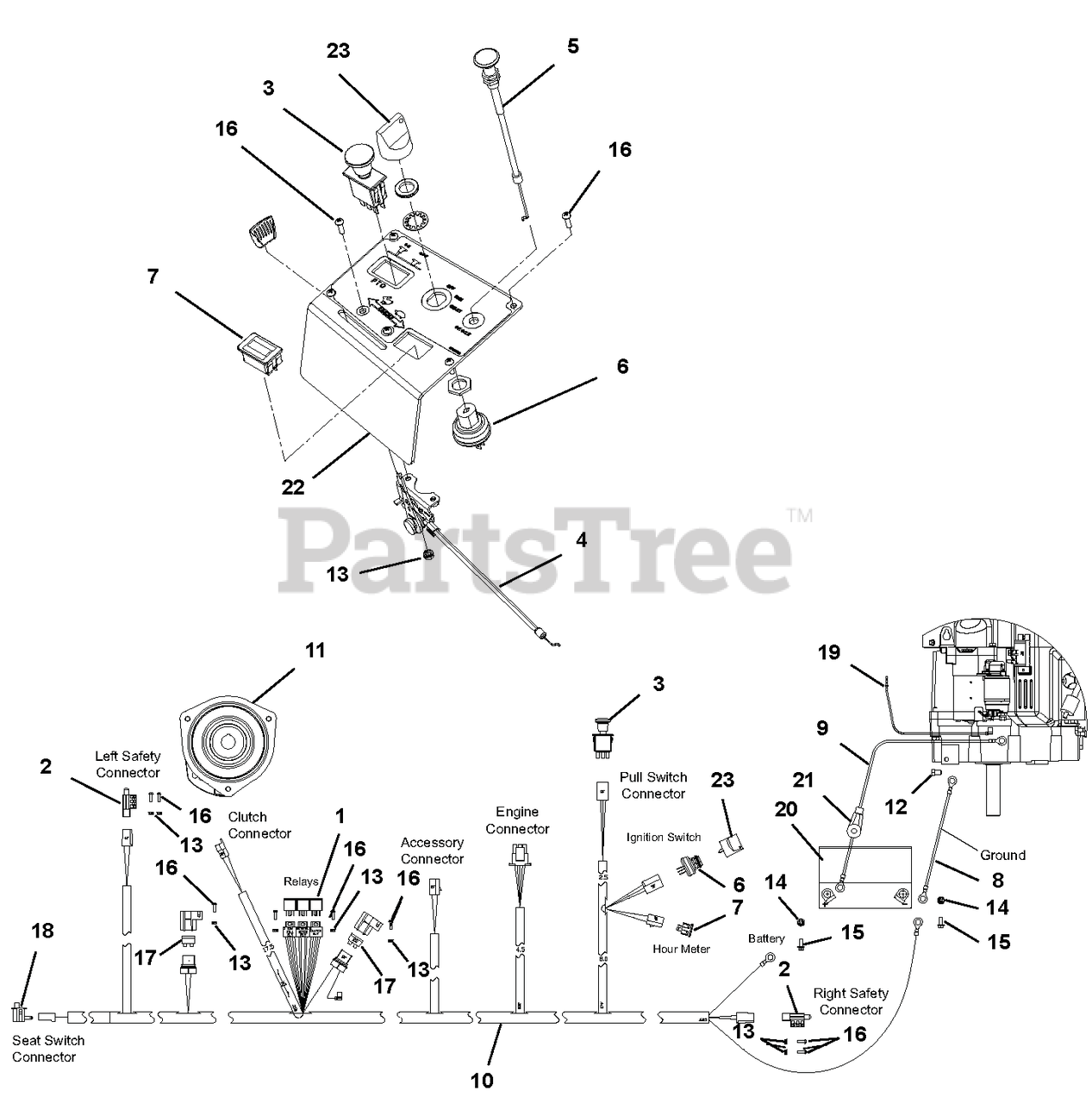

992806 (2754 S) - Ariens Pro-Zoom 54" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Zoom 54" Zero-Turn Mower, 27hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Ariens 00102770

RELAY, ISO MINI ELEC.

$21.99

$

In Stock, only 1 left!

0

2

Ariens 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$20.99

$

Usually ships in 4-12 days

0

3

Ariens 00136574

SWITCH, PTO ENGAGEMENT

Note: (Serial Number 101 - 2499)

$28.99

$

In Stock, only 1 left!

0

3

Ariens 04311800

SWITCH, CLUTCH (WITH GRAPHIC)

Note: (Serial Number 2500 and up)

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 03858700

THROTLE CABLE, 40" WITH DETENT

Note: (Serial Number 101 - 2499)

$59.99

$

In Stock, only 1 left!

0

4

Ariens 06900412

CABLE, PRO-CONTROL

Note: (Serial Number 2500 and up)

$60.99

$

In Stock, only 4 left!

0

5

Ariens 00180273

CABLE, CHOKE 48.0"

Note: (Serial Number 101 - 2499)

$52.99

$

In Stock, only 1 left!

0

5

Ariens 06900411

CABLE, PRO-CONTROL THROTTLE

Note: (Serial Number 2500 and up)

$48.99

$

In Stock, only 2 left!

0

5

Ariens 07500132

KNOB-CONTROL-BLACK .38-16X.50

Note: NOT SHOWN

$11.99

$

In Stock, Qty 5

0

6

Ariens 00464000

SWITCH, IGNITION
(Superseded to 04331600)

Note: (Includes item 23)

$42.99

$

In Stock, Qty 11

0

7

Ariens 00192296

METER, HOUR - LCD ALT. (ENM)

Note: (Serial Number 101 - 2499)

$68.99

$

Usually ships in 4-12 days

0

7

Ariens 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

Note: (Serial Number 2500 and up)

$22.99

$

In Stock, only 1 left!

0

8

Ariens AA201019

CABLE, BATTERY - 25" GROUND

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

10

Ariens 03798600

WIRE HARNESS

$

$

Not available

11

Ariens 00180923

CLUTCH, ELECT-OGURA, GT3.5

$491.99

$

Usually ships in 4-12 days

0

12

Ariens 00961281

BOLT, M8X1.25X14 HEX 8.8 Y
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 00130923

NUT, 10-24 KEPS Y
(Superseded to 06500704)

Note: (Serial Number 101 - 2499)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (Serial Number 2500 and up)

$0.99

$

In Stock, only 4 left!

0

14

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

15

Ariens 06006127

SCR-HEX-FLNG .25-20 X .625 G2

$

$

Not available

16

Ariens 00967340

SCREW, 10-24X.625 PAN PHL MACY

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

Note: (Serial Number 2500 and up)

$2.99

$

In Stock, Qty 12

0

16

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (Serial Number 2500 and up)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00191262

FUSE, 20 AMP BLADE S/O

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.49

$

In Stock, Qty 20+

0

19

Ariens 03286700

LEAD - STARTER SOLENOID

$9.49

$

In Stock, only 1 left!

0

20

Ariens 00181779

BATTERY, 12V-U1-CCA400MIN

$

$

Not available

21

Ariens 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

22

Ariens 03816551

PLATE, CONTROL PANEL

Note: (Serial Number 101 - 2499)

$

$

Not available

22

Ariens 03961651

PANEL, CONTROL

Note: (Serial Number 2500 and up)

$51.99

$

Usually ships in 4-12 days

0

23

Ariens 09287000

KEY, W/ SHIELD

$15.99

$

In Stock, Qty 20+

0
