992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 000110) Wheels And Brake Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

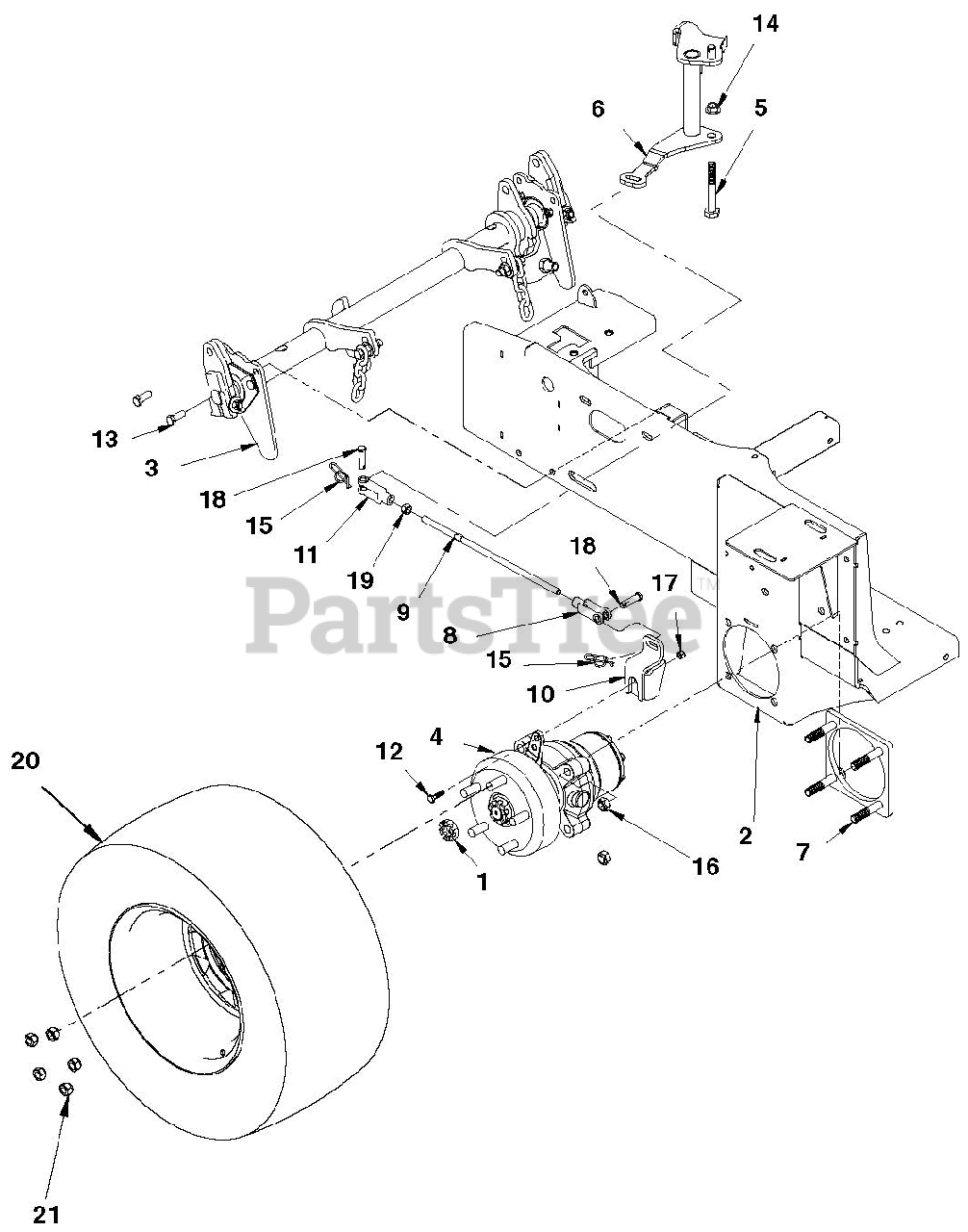

Wheels And Brake Parts Diagram

  • Title

1

Ariens 00191625

NUT, 1-20 SPECIAL CASTLE S/O

$

$

Not available

2

Ariens 03850400

FRAME WITH DECALS ACM

$

$

Not available

3

Rear Lift Rod Assembly

Note: (See "Lift Rod")

$

$

Not available

4

Ariens 00181513

MOTOR, LH HYDRO GEAR WHEEL

$2690.99

$

Usually ships in 4-12 days

0

4

Ariens 00181512

MOTOR, RH HYDRO GEAR WHEEL

$

$

Not available

5

Ariens 00180354

BRG, FLG .502X.629X.421

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 03833951

WLDT, LH PARK BRAKE CONTROL

$97.99

$

Usually ships in 4-12 days

0

6

Ariens 03833751

WLDT, RH PARK BRAKE CONTROL

$97.99

$

Usually ships in 4-12 days

0

7

Ariens 03819751

WLDT, WHEEL MOTOR PLATE

$

$

Not available

8

Ariens 00180968

YOKE, 3/8-24 LH ADJUSTABLE

$16.99

$

Usually ships in 4-12 days

0

9

Ariens 00180981

ROD, STRAIGHT PARK BRAKE CONTR

$26.99

$

Usually ships in 4-12 days

0

10

Ariens 03819651

WLDT, BRAKE ARM EXTENSION

$

$

Not available

11

Ariens 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$16.99

$

Usually ships in 4-12 days

0

12

Ariens 00960002

BOLT, 1/4-20X1.00 HEX 5 Y
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

13

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 00960119

BOLT, 1/2-13X2.75 HEX 5 Y
(Superseded to 05965500)

$5.49

$

Usually ships in 4-12 days

0

15

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 00960504

NUT, 1/2-13 STD HEX GR5 Y
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

17

Ariens 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

18

Ariens 00967013

PIN, CVS .375X1.38X1.14 Y
(Superseded to 06820300)

$

$

Not available

19

Ariens 00967054

NUT, 3/8-24 STD HEX Y
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

20

Ariens 00180235

TIRE/WHEEL ASSY, 24X11.50-12

$288.99

$

Usually ships in 4-12 days

0

20

Ariens 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

$250.99

$

Usually ships in 4-12 days

0

20

Ariens 00181342

RIM, 12X8.5
(Superseded to 00180235)

$288.99

$

Usually ships in 4-12 days

0

21

Ariens 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0
