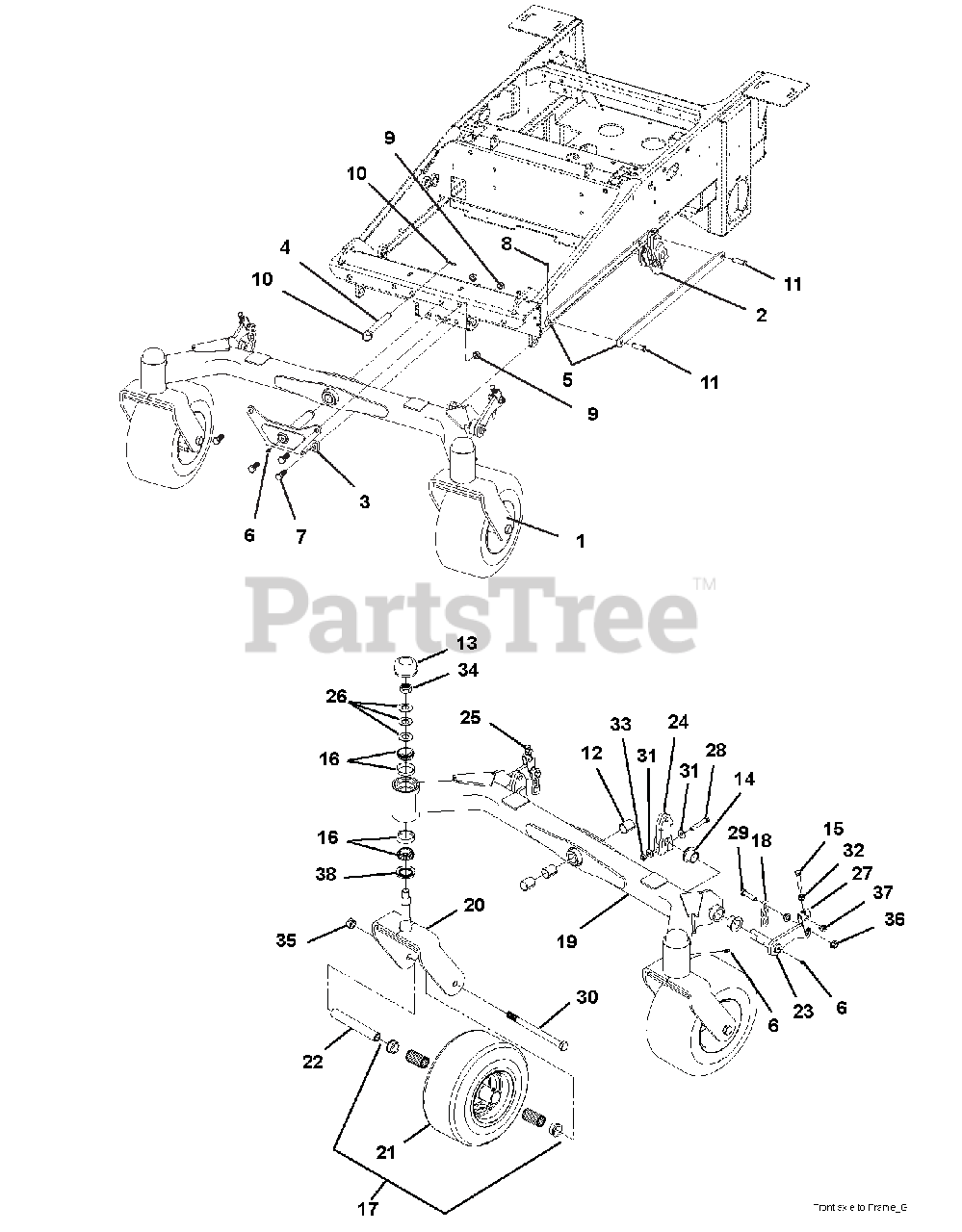

992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000111 & Above) Front Axle, Casters and Wheels Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

Front Axle, Casters and Wheels Parts Diagram

  • Title

1

Front Axle Frame Assembly (see view at bottom of p. 16 for individual componen

Note: (see view at bottom of p. 16 for individual components)

$

$

Not available

2

Ariens 00180085

ASSY, REAR LIFT ROD

$630.99

$

Usually ships in 4-12 days

0

3

Ariens 03819159

WLDT, FRONT AXLE BRACKET

$271.99

$

Usually ships in 4-12 days

0

4

Ariens 00180830

PIN, MFG .625X5.00X4.38 XDRL Y

$64.99

$

Usually ships in 4-12 days

0

5

Ariens 03814451

PLATE, CONNECTOR LINK

$53.99

$

Usually ships in 4-12 days

0

6

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 00960113

BOLT, 1/2-13X1.25 HEX 5 Y
(Superseded to 05958900)

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 00967354

RING, RUE .500 X .062 X 1.420

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, only 2 left!

0

10

Ariens 00967057

RING, WIRE - .080 X 1.25

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 06821700

PIN-CLEV .50X1.50X1.27 YWZC

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 00105591

BEARING, SLV 1.00X1.13X1.25

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 00105596

CAP, SPINDLE

$11.99

$

In Stock, only 2 left!

0

14

Ariens 00130885

BRG, FLG 1.00X1.25X.944

$7.99

$

Usually ships in 4-12 days

0

15

Ariens 00967396

BOLT, 3/8-16X2.25 HEX 5 FLTD Y

$

$

Not available

16

Ariens 00145555

BRG ASSY, 1IN DIA SPINDLE

$25.99

$

In Stock, Qty 14

0

17

Ariens 03872700

KIT, BEARINGS & CAPS 1.00"

Note: (does not include tire and rim)

$63.99

$

In Stock, only 2 left!

0

18

Ariens TCA12790

CHAIN, IMPLEMENT HOLD (3-LINK)

$

$

Not available

19

Ariens 03815759

WLDT, FRONT AXLE

$851.99

$

Usually ships in 4-12 days

0

20

Ariens 03821359

WLDT, Z FRONT WHEEL FORK

$238.99

$

Usually ships in 4-12 days

0

21

Ariens 00180256

ASSY, TIRE & RIM - 13/6.50X6

Note: (includes item

$125.99

$

In Stock, Qty 5

0

21

Ariens 07100242

TIRE/WHEEL ASSY 13X5-6(RIBBED)

Note: (includes item 17)

$143.99

$

Usually ships in 4-12 days

0

22

Ariens 00180257

TUBE, FRONT TIRE AXLE

$77.99

$

Usually ships in 4-12 days

0

23

Ariens 03815851

WLDT, LH FRONT PIVOT

$97.99

$

Usually ships in 4-12 days

0

23

Ariens 03815951

WLDT, RH FRONT PIVOT

$86.99

$

Usually ships in 4-12 days

0

24

Ariens 03815151

WLDT, FRONT PIVOT CLAMP

$93.99

$

Usually ships in 4-12 days

0

25

Ariens 00181566

ASSY, DECK LEVELER

Note: (Includes items 15, 27, 32 and 37)

$56.99

$

Usually ships in 4-12 days

0

26

Ariens 00180992

WASHER, .750X1.50X.072 BLVL U

$5.99

$

Usually ships in 4-12 days

0

27

Ariens 03816051

LINK, U-BRACKET

$

$

Not available

28

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

29

Ariens 05901337

BOLT, 7/16-14 X 2.00 HEX5SPC Y

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 05984700

BLT-HEX .62-11X8.5 GR5 YWZC

$11.99

$

In Stock, only 1 left!

0

31

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

32

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

33

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 06500031

LOCKNUT, 3/4-16 CROWN GR 8 Y

$3.99

$

In Stock, Qty 12

0

35

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

36

Ariens 06530004

NUT-FLANGED WHIZ .438-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 00967395

NUT, 3/8-16 SQUARE Y

$2.99

$

Usually ships in 4-12 days

0

38

Ariens 00145552

SEAL, BRG 1.00 ROLLER

$10.99

$

In Stock, Qty 16

0
