992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000111 & Above) Hydraulics Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

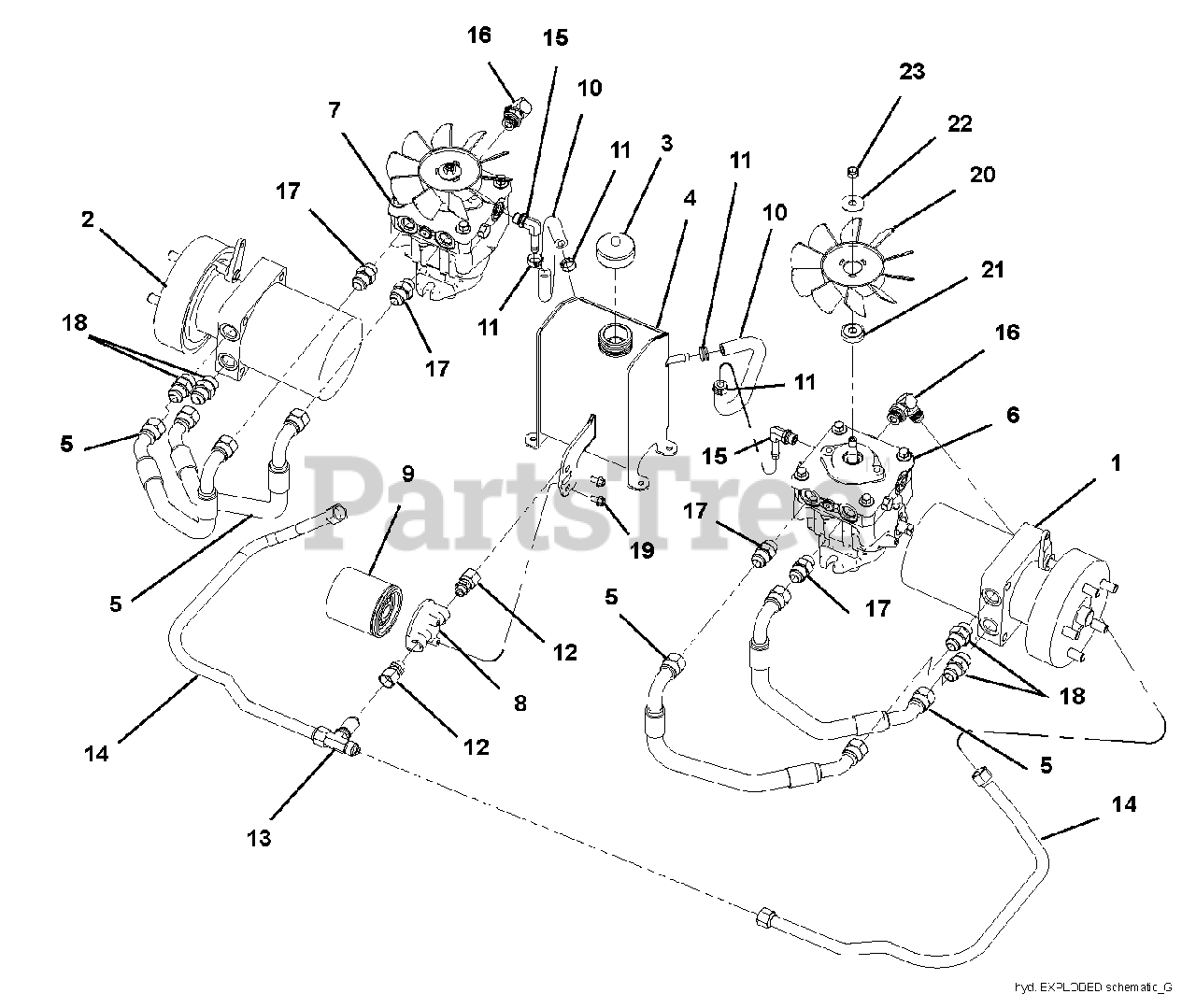

Hydraulics Parts Diagram

  • Title

1

Ariens 00181513

MOTOR, LH HYDRO GEAR WHEEL

Note: (Serial Number 101 - 2499)

$2690.99

$

Usually ships in 4-12 days

0

Ariens 00180236

MOTOR, LH WHEEL

Note: (Serial Number 2500 and up)

$1187.99

$

Usually ships in 4-12 days

0

2

Ariens 00181512

MOTOR, RH HYDRO GEAR WHEEL

Note: (Serial Number 101 - 2499)

$

$

Not available

Ariens 00180237

MOTOR, RH WHEEL

Note: (Serial Number 2500 and up)

$

$

Not available

3

Ariens 00181210

CAP, OIL RESIVOIR W/FREE FLOW

$17.99

$

In Stock, only 1 left!

0

4

Ariens 03819851

WLDT, OIL TANK

$

$

Not available

5

Ariens 00180652

HOSE, HYD-10 -10FJIC90/45 18

$144.99

$

Usually ships in 4-12 days

0

6

Ariens 00180831

PUMP, HYDRO LH PR-2HDD

$1194.99

$

Usually ships in 4-12 days

0

7

Ariens 00180832

PUMP, HYDRO RH PR-2KDD

$983.99

$

Usually ships in 4-12 days

0

8

Ariens 00180908

HEAD, OIL FILTER

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 00180909

FILTER, 25 MICRON

$56.99

$

Usually ships in 4-12 days

0

10

Ariens 00180935

HOSE, HYD 3/8 X 12.50

$

$

Not available

11

Ariens 00180947

CLAMP, HOSE - 11/16 SPRING

$

$

Not available

12

Ariens 00181031

FTG, ADP 9/16-18MORX3/4-16FJIC

$

$

Not available

13

Ariens 00181032

FTG, TUN 3/4-16JIC

$

$

Not available

14

Ariens 00181035

HOSE, HYD-8 -12FJIC 29

$25.99

$

Usually ships in 4-12 days

0

15

Ariens D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

16

Ariens D14196

FTG, 90 ADP JIC-ORB 6801-08-08

$6.49

$

Usually ships in 4-12 days

0

17

Ariens 00313290

FTG, ADP 3/4MORX7/8MJIC

$10.99

$

Usually ships in 4-12 days

0

18

Ariens 00313392

FTG, ADP 7/8-14MORX7/8-14FJIC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens AA963000

BOLT, 1/4-20X.500 WSH 5 Y

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 00180993

FAN, BDP16 PLASTIC COOLER

$21.99

$

In Stock, Qty 6

0

21

Ariens 00180994

HUB, BDP16 FAN

$22.99

$

In Stock, only 2 left!

0

22

Ariens 00180995

WASHER, .375X1.25X.072 BLVL U

$10.99

$

Usually ships in 4-12 days

0

23

Ariens 00964066

LOCKNUT, 3/8-24 CROWN Y
(Superseded to 06512300)

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 00181371

LEVER S/0

Note: (Serial Number 2499 and up (Parker))

$

$

Not available

25

Ariens 00181066

KIT, MOTOR SEAL - DF280 S/O

Note: (Serial Number 2499 and up (Parker))

$

$

Not available

26

Ariens 00181903

LEVER, BRAKE HYDRO GEAR S/O
(Superseded to 21544006)

Note: (Serial Number 101 - 2499)

$

$

Not available

27

Ariens 00181565

Seal, Kit Wheel Motors, Hydro-Gear (Serial Number 101 - 2499)

Note: (Serial Number 101 - 2499)

$

$

Not available
