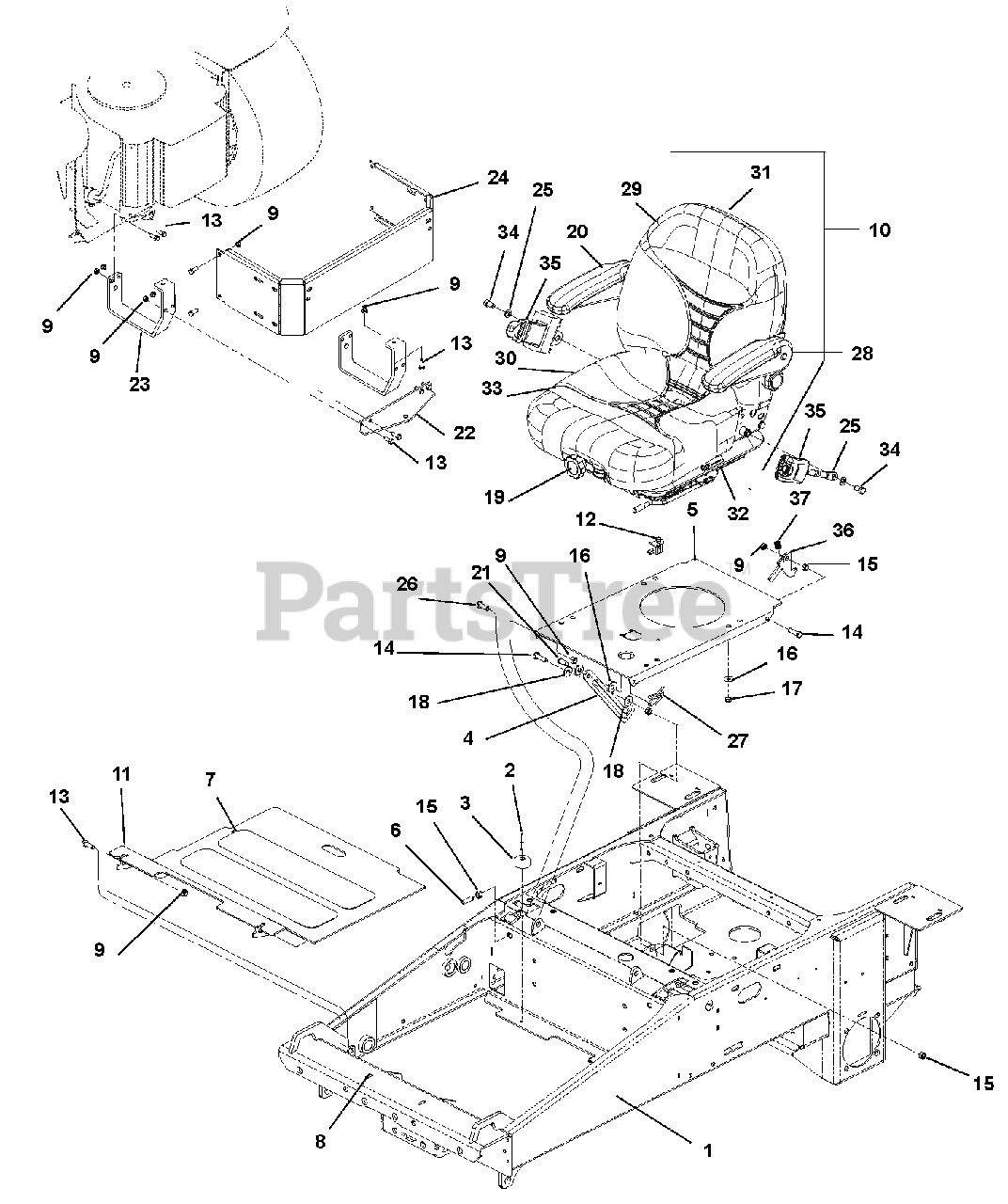

992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000111 & Above) Seat, Foot plate and Bumper Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

Seat, Foot plate and Bumper Parts Diagram

  • Title

1

Ariens 03850400

FRAME WITH DECALS ACM

Note: (Serial Number 101 - 2499)

$

$

Not available

1

Ariens 56496003

ASSY, FRAME WIH DECALS PROZOOM

Note: (Serial Number 2500 and up)

$

$

Not available

2

Ariens AA968100

RIVET, 3/16 X .500 POP ST

$

$

Not available

3

Ariens 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$4.49

$

Usually ships in 4-12 days

0

4

Ariens 00180391

BAR, SEAT LOCK

$

$

Not available

5

Ariens 03817459

PLATE, SEAT

$67.99

$

Usually ships in 4-12 days

0

6

Ariens 00962903

SET SCREW, 3/8-16X1.25 SK CUP
(Superseded to 06006002)

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 00180658

TAPE, NON-SLIP - 4.00 X 18.00

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 00180659

TAPE, NON-SLIP - 2.50 X 21.50

$

$

Not available

9

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

$905.99

$

Usually ships in 4-12 days

0

11

Ariens 03817359

WLDT, FOOT PLATE

$103.99

$

Usually ships in 4-12 days

0

12

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.49

$

In Stock, Qty 20+

0

13

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

15

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

Usually ships in 4-12 days

0

17

Ariens 06530800

NUT-CROWN .312-18 YWZC

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

19

Ariens 59208000

KIT-SEAT KNOB

$33.99

$

Usually ships in 4-12 days

0

20

Ariens 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

21

Ariens 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 4 left!

0

22

Ariens 03817259

PLATE, HITCH

$

$

Not available

23

Ariens 03771859

ARM, HITCH SUPPORT

$96.99

$

Usually ships in 4-12 days

0

24

Ariens 03792259

PLATE, REAR BUMPER

Note: (Serial Number 101 - 2499)

$

$

Not available

24

Ariens 04307500

PLATE, GRAVELY BUMPER

Note: (Serial Number 2500 and up)

$

$

Not available

25

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

26

Ariens 07070119

BLT-SHLDR .5X1.06X.38-16 SLD 5

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0

28

Ariens 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

29

Ariens 59208800

KIT-BACK CUSHION-LIGHT GRAY

$423.99

$

Usually ships in 4-12 days

0

30

Ariens 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$258.99

$

In Stock, only 3 left!

0

31

Ariens 59208100

KIT-SEAT BACK PANEL

$175.99

$

Usually ships in 4-12 days

0

32

Ariens 59207900

KIT-SEAT SLIDE

$

$

Not available

33

Ariens 59207800

KIT-SPRING AND SADDLE

$175.99

$

In Stock, only 1 left!

0

34

Ariens 05918400

@BLT-HEX .44-20X.75 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

35

Ariens 00181572

ASSY, SEAT BELT

$107.99

$

Usually ships in 4-12 days

0

36

Ariens 03841451

LATCH, SEAT

$9.49

$

Usually ships in 4-12 days

0

37

Ariens 00160176

SPRING, COM .600X.056X.875 Y

$9.49

$

Usually ships in 4-12 days

0
