992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

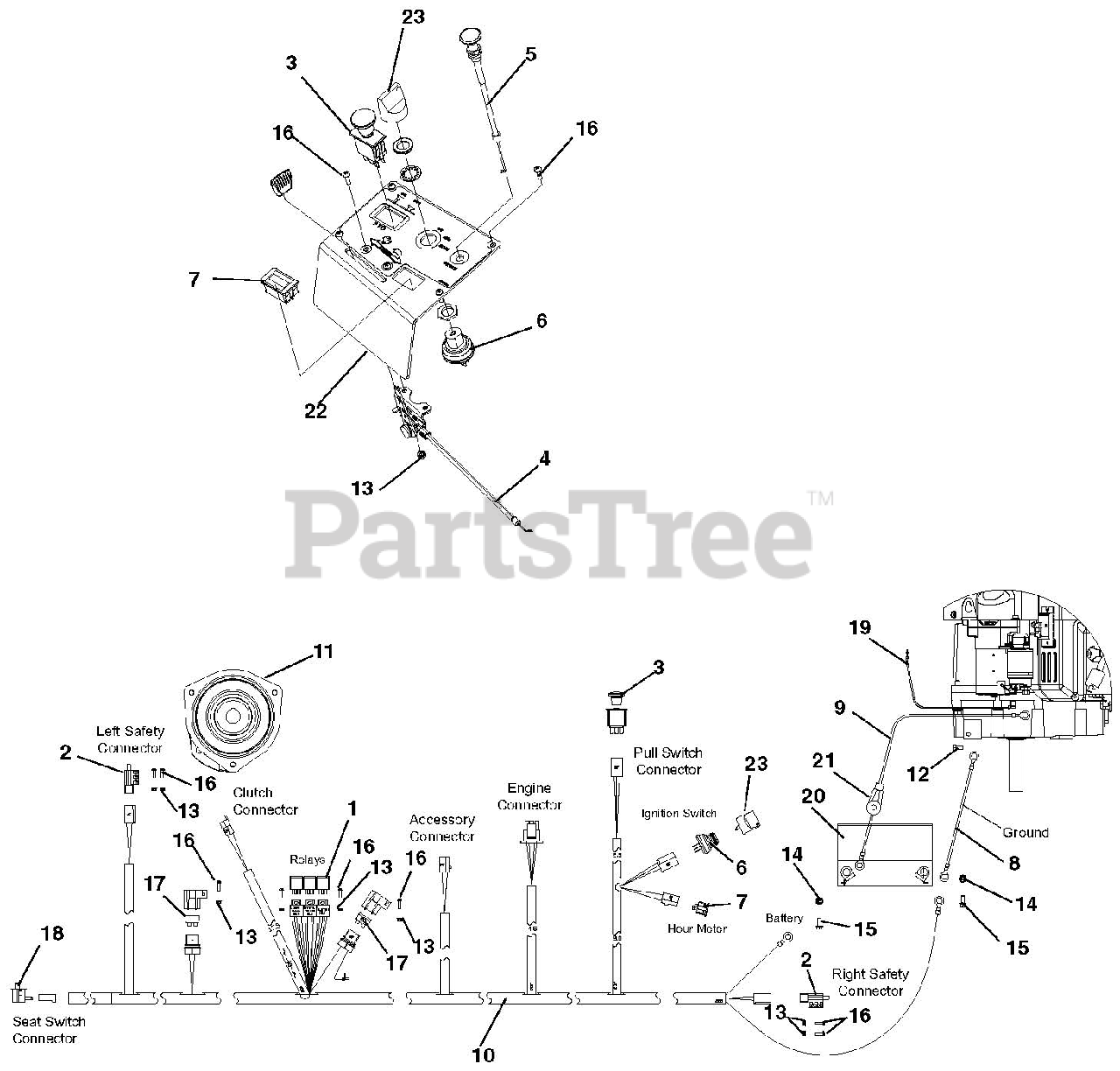

Electrical System Parts Diagram

  • Title

1

Ariens 00102770

RELAY, ISO MINI ELEC.

$21.99

$

In Stock, only 1 left!

0

2

Ariens 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$20.99

$

Usually ships in 4-12 days

0

3

Ariens 00136574

SWITCH, PTO ENGAGEMENT

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 03858700

THROTLE CABLE, 40" WITH DETENT

$59.99

$

In Stock, only 1 left!

0

5

Ariens 00180273

CABLE, CHOKE 48.0"

$52.99

$

In Stock, only 1 left!

0

6

Ariens 00464000

SWITCH, IGNITION
(Superseded to 04331600)

Note: (Includes item 23)

$42.99

$

In Stock, Qty 9

0

7

Ariens 00192296

METER, HOUR - LCD ALT. (ENM)

$68.99

$

Usually ships in 4-12 days

0

8

Ariens AA201019

CABLE, BATTERY - 25" GROUND

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

10

Ariens 03798600

WIRE HARNESS

$

$

Not available

11

Ariens 00180923

CLUTCH, ELECT-OGURA, GT3.5

$491.99

$

Usually ships in 4-12 days

0

12

Ariens 00961281

BOLT, M8X1.25X14 HEX 8.8 Y
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 00130923

NUT, 10-24 KEPS Y
(Superseded to 06500704)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

15

Ariens 00963001

PLATE, ENGINE MOUNT

$

$

Not available

16

Ariens 00967340

SCREW, 10-24X.625 PAN PHL MACY

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 00191262

FUSE, 20 AMP BLADE S/O

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.49

$

In Stock, Qty 15

0

19

Ariens 03286700

LEAD - STARTER SOLENOID

$9.49

$

In Stock, only 1 left!

0

20

Ariens 00181779

BATTERY, 12V-U1-CCA400MIN

$

$

Not available

21

Ariens 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

22

Ariens 03816551

PLATE, CONTROL PANEL

$

$

Not available

23

Ariens 09287000

KEY, W/ SHIELD

$15.99

$

In Stock, Qty 20+

0
