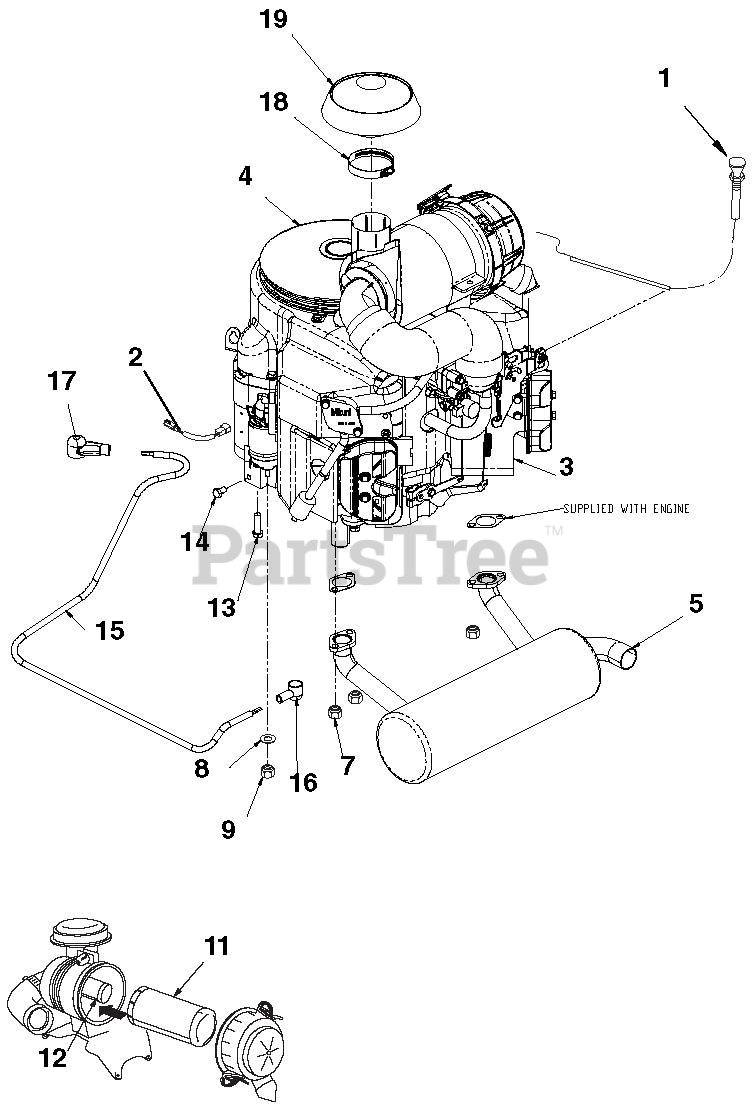

992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Engine And Exhaust Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

Engine And Exhaust Parts Diagram

  • Title

1

Ariens 00180273

CABLE, CHOKE 48.0"

$56.99

$

In Stock, only 2 left!

0

2

Ariens 03286700

LEAD - STARTER SOLENOID

$10.99

$

Usually ships in 4-12 days

0

3

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

4

Ariens 08200327

ENGINE, KAWASAKI FX751 (27HP)

Note: (992807)

$

$

Not available

4

Ariens 08200328

ENGINE, KAWASAKI FX850 (31HP)

Note: (992808)

$

$

Not available

5

Ariens 01057000

MUFFLER - 31HP KAWASAKI VERT.

$277.99

$

Usually ships in 4-12 days

0

6

Ariens 03798600

WIRE HARNESS

$

$

Not available

7

Ariens 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 00961603

WASHER, M8 SPRG LOCK Y
(Superseded to 06318200)

$0.99

$

Usually ships in 4-12 days

0

9

Ariens 00961553

NUT, M8X1.25 HEX GR8.8 Y
(Superseded to 06538600)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 21536100

PLUG, SPARK

Note: (not illustrated)

$3.99

$

In Stock, Qty 20+

0

11

Ariens 21545400

ELEMENT-OUTER - KAWASAKI

$36.99

$

In Stock, Qty 20+

0

12

Ariens 21545300

ELEMENT-INNER - KAWASAKI

$48.99

$

In Stock, only 4 left!

0

13

Ariens 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 00961281

BOLT, M8X1.25X14 HEX 8.8 Y
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

16

Ariens 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 9

0

17

Ariens 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

18

Ariens 06900339

CLAMP, HOSE 2.75 DIA WORM

$12.99

$

Usually ships in 4-12 days

0

19

Ariens 03820900

RAIN CAP, AIR CLEANER (2.5")

$79.99

$

In Stock, only 2 left!

0
