992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Lift Rod Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

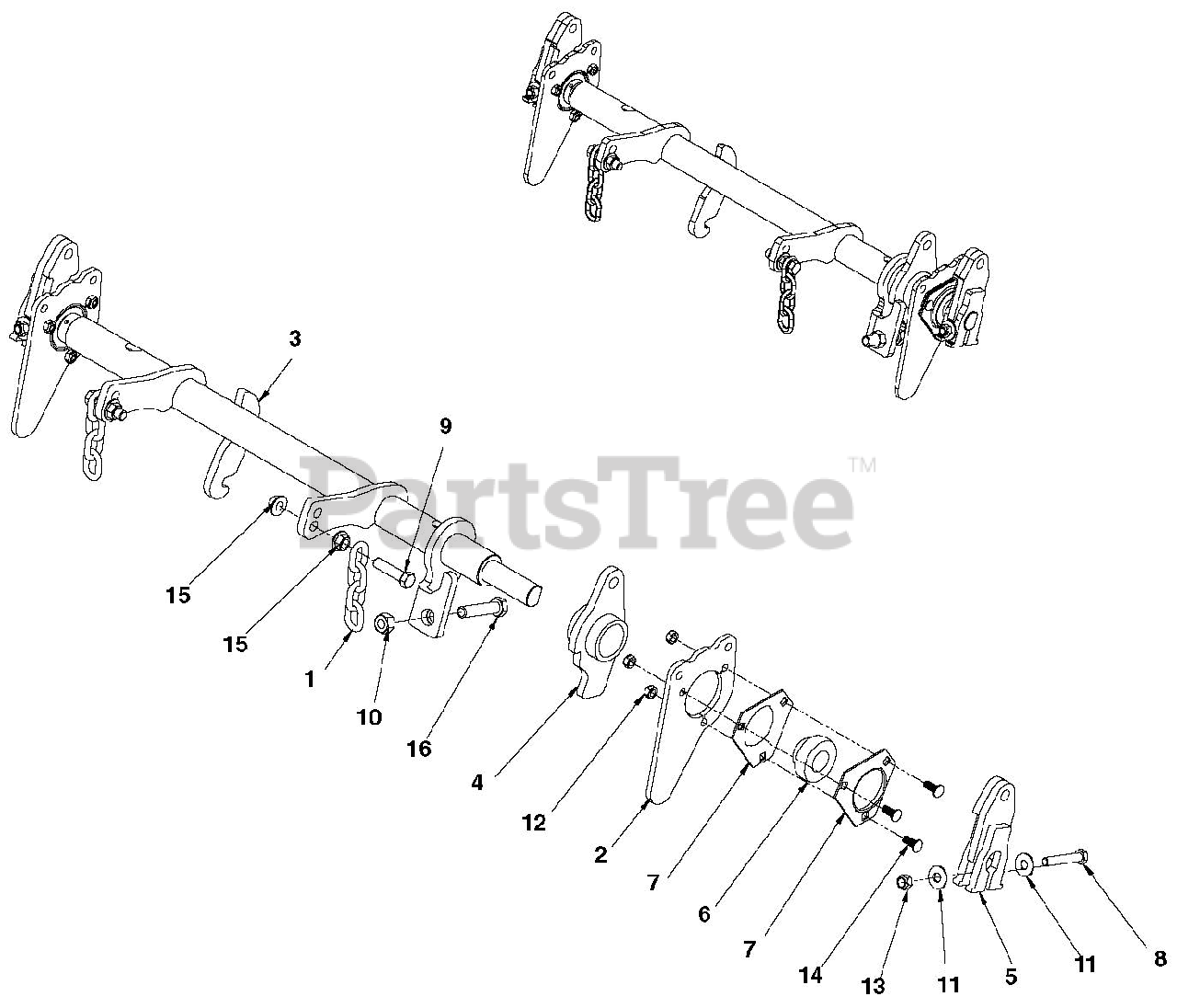

Lift Rod Parts Diagram

  • Title

1

Ariens 03845600

CHAIN, 4 LINKS 1/4" GR70 Y

$

$

Not available

2

Ariens 03814751

BALL BEARING PLATE

$29.99

$

Usually ships in 4-12 days

0

3

Ariens 03814851

WLDT, CENTER LIFT

$

$

Not available

4

Ariens 03815051

WLDT, HOC ROTATION ADJUSTMENT

$

$

Not available

5

Ariens 03815151

WLDT, FRONT PIVOT CLAMP

$96.99

$

Usually ships in 4-12 days

0

6

Ariens 00251060

BEARING, SET SCREW COLLAR

$48.99

$

Usually ships in 4-12 days

0

7

Ariens 00251061

FLANGE, BEARING 52MM-3T-YZP

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 00960051

BOLT, 3/8-16X2.25 HEX 5 Y
(Superseded to 05962900)

$4.99

$

In Stock, Qty 20+

0

9

Ariens 00960082

BOLT, 7/16-14X1.75 HEX 5 Y
(Superseded to 05982100)

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 00960504

NUT, 1/2-13 STD HEX GR5 Y
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

11

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

14

Ariens 00967152

BOLT, 5/16-18X.750 CRG 5 Y
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 00967342

LOCKNUT, 7/16-14 WHIZ Y
(Superseded to 06530004)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 00967341

BOLT, 1/2-13X2.25 HEX 5 FLTD Y

$3.99

$

Usually ships in 4-12 days

0
