992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

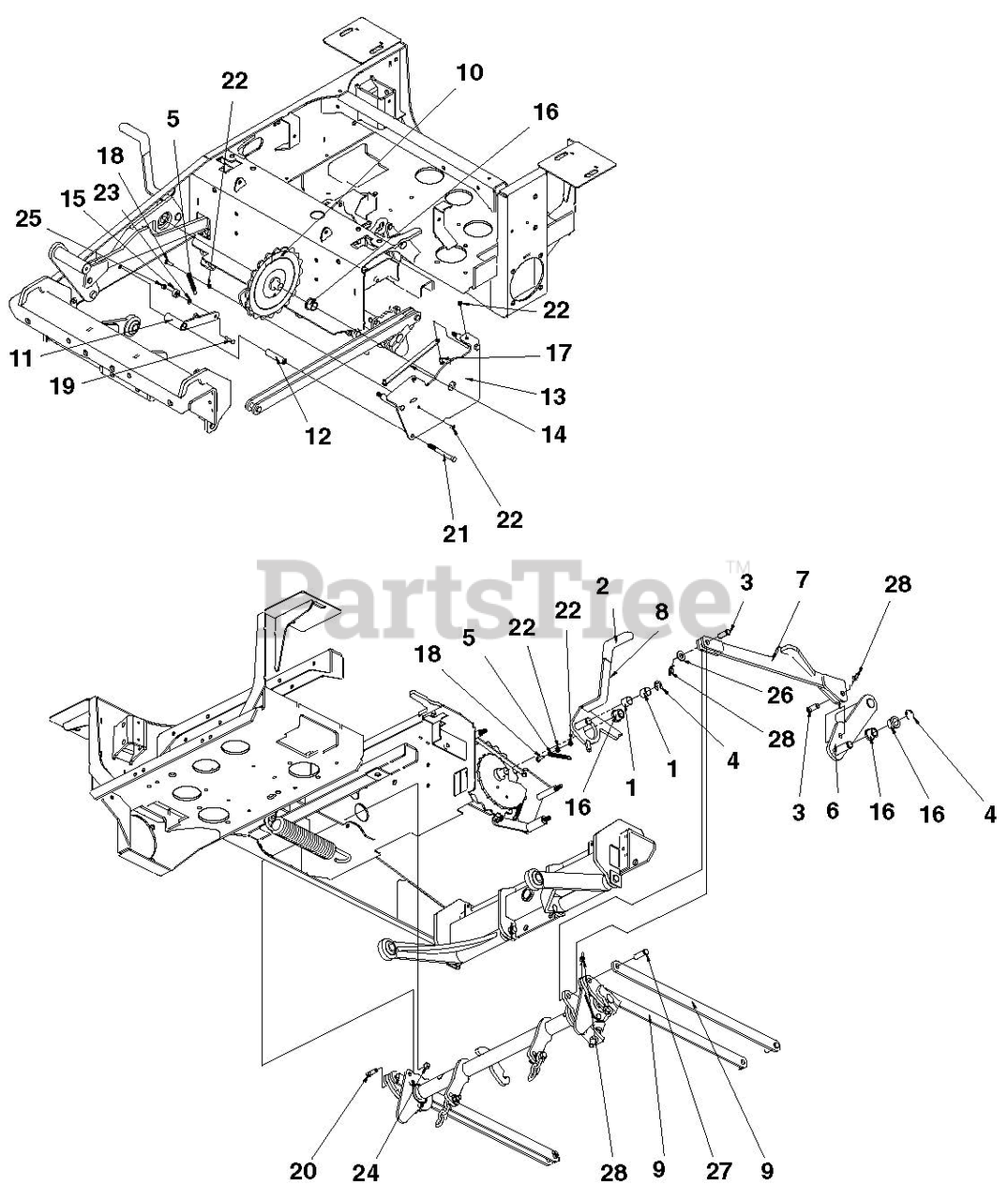

Mower Deck Lift Parts Diagram

  • Title

1

Ariens 00105546

BRG, SLV .753X.878X.750

$7.49

$

In Stock, Qty 6

0

2

Ariens 00105593

GRIP, RUBBER LEVER

$

$

Not available

3

Ariens 00110330

PIN, CVS .500X1.25X1.02 Y
(Superseded to 06821600)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 00130886

E-RING, .750 X .050 Y
(Superseded to 05700134)

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 00135292

SPRING, EXT .375X.055X2.25 Y

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 03814251

WLDT, FOOT ARM

$101.99

$

Usually ships in 4-12 days

0

7

Ariens 03814151

WLDT, FOOT CONNECTOR

$

$

Not available

8

Ariens 03814351

WLDT, TRANSPORTATION LOCK

$54.99

$

Usually ships in 4-12 days

0

9

Ariens 03814451

PLATE, CONNECTOR LINK

$54.99

$

Usually ships in 4-12 days

0

10

Ariens 00181261

ASSY, CAM CONTROL W/DECALS S/O

$

$

Not available

11

Ariens 00181338

WLDT, ARM

$38.99

$

Usually ships in 4-12 days

0

12

Ariens 00181389

TUBE, RD .625 X .120 X 2.53 Y

$29.99

$

Usually ships in 4-12 days

0

13

Ariens 03799959

PLATE, HOC INDICATOR

$79.99

$

Usually ships in 4-12 days

0

14

Ariens 03800059

PLATE, FINGER GUARD

$20.99

$

Usually ships in 4-12 days

0

15

Ariens 00191185

BRG, BAL .250X.688X.313

$10.99

$

Usually ships in 4-12 days

0

16

Ariens 00252126

BUSHING, .750 X 1.00 X .750

$12.99

$

Usually ships in 4-12 days

0

17

Ariens AA960000

BOLT, 1/4-20X.500 HEX 5 Y
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

18

Ariens 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

19

Ariens 00960002

BOLT, 1/4-20X1.00 HEX 5 Y
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

20

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 00960056

BOLT, 3/8-16X3.50 HEX 5 Y
(Superseded to 05960900)

$4.99

$

In Stock, Qty 20+

0

22

Ariens AA960500

NUT, 1/4-20 STD HEX GR5 Y

$

$

Not available

23

Ariens 00961701

WASHER, M6 REG FLAT Y
(Superseded to 06449100)

$

$

Not available

24

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

25

Ariens 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

26

Ariens 00964505

WASHER, .500X1.00X.105 FLAT Y
(Superseded to 06441900)

$1.49

$

Usually ships in 4-12 days

0

27

Ariens 00967196

PIN, CVS .500X1.50X1.27 Y
(Superseded to 06821700)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 00967354

RING, RUE .500 X .062 X 1.420

$3.99

$

Usually ships in 4-12 days

0
