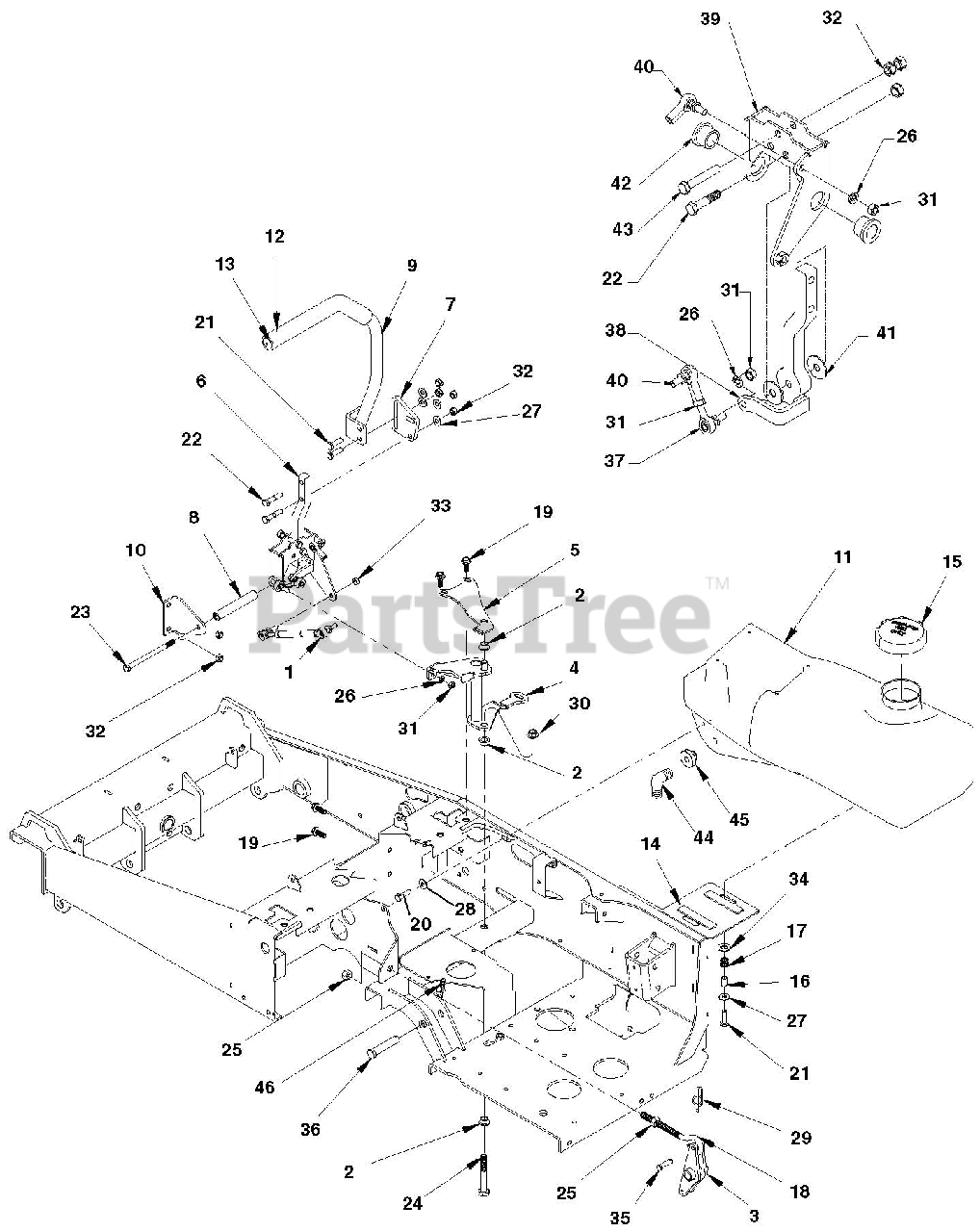

992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Steering Controls And Fuel Tank Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

Steering Controls And Fuel Tank Parts Diagram

  • Title

1

Ariens 00180231

DAMPNER, STEERING CONTROL

$

$

Not available

2

Ariens 00180354

BRG, FLG .502X.629X.421

$6.49

$

Usually ships in 4-12 days

0

3

Ariens 03814551

WLDT, SPRING PIVOT

$49.99

$

Usually ships in 4-12 days

0

4

Ariens 03833751

WLDT, RH PARK BRAKE CONTROL

$97.99

$

Usually ships in 4-12 days

0

4

Ariens 03833951

WLDT, LH PARK BRAKE CONTROL

$97.99

$

Usually ships in 4-12 days

0

5

Ariens 03818951

EAR, RH BRAKE PIVOT

$

$

Not available

5

Ariens 03819051

EAR, LH BRAKE PIVOT

$40.99

$

Usually ships in 4-12 days

0

6

Ariens 03816151

WLDT, RH STEERING BAR

$174.99

$

Usually ships in 4-12 days

0

6

Ariens 03816351

WLDT, LH STEERING BAR

$182.99

$

Usually ships in 4-12 days

0

7

Ariens 03818251

PLATE, HANDLE HEIGHT

$

$

Not available

8

Ariens 00180543

TUBE, RD .750 X .179 X 4.69 Y

$

$

Not available

9

Ariens 00181349

ASSY, RH STEERING HANDLE

$

$

Not available

9

Ariens 00181350

ASSY, LH STEERING HANDLE

$

$

Not available

10

Ariens 03819200

PLATE, BENT

$

$

Not available

11

Ariens 03793900

TANK, RH MIDMOUNT BLANK W/CAP
(Superseded to 00191392)

Note: (Includes items 15, 44, 45)

$

$

Not available

11

Ariens 03793800

TANK, LH MIDMOUNT BLANK W/CAP

Note: (Includes items 15, 44, 45)

$

$

Not available

12

Ariens 00180617

FOAM GRIP

$37.99

$

In Stock, only 2 left!

0

13

Ariens 00180639

PLUG, 7/8" END

$

$

Not available

14

Ariens 00180897

FOAM, .125 X .750 X 4.00

$

$

Not available

15

Ariens 00181251

CAP, FUEL S/O

$24.99

$

In Stock, Qty 10

0

16

Ariens 03821551

SPACER, GAS TANK ATTACHMENT

$30.99

$

Usually ships in 4-12 days

0

17

Ariens 00181027

SPRING, COM .660 X .067 X .625

$6.49

$

Usually ships in 4-12 days

0

18

Ariens 00250356

EYEBOLT, 1/2-13X1.00X4.50 FL Y

$14.99

$

Usually ships in 4-12 days

0

19

Ariens 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

21

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.99

$

In Stock, only 2 left!

0

22

Ariens 00960049

BOLT, 3/8-16X1.75 HEX 5 Y
(Superseded to 05958500)

$1.99

$

In Stock, only 3 left!

0

23

Ariens 00960063

BOLT, 3/8-16X5.50 HEX 5 Y
(Superseded to 05982000)

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 00960119

BOLT, 1/2-13X2.75 HEX 5 Y
(Superseded to 05965500)

$5.49

$

Usually ships in 4-12 days

0

25

Ariens 00960504

NUT, 1/2-13 STD HEX GR5 Y
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

26

Ariens AA960601

WASHER, .313 MED SPRG LOCK Y
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.99

$

Usually ships in 4-12 days

0

30

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, Qty 11

0

31

Ariens 00964003

NUT, 5/16-24 STD HEX GR5 Y

$

$

Not available

32

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

33

Ariens 00964047

LOCKNUT, M8-1.25 CROWN Y
(Superseded to 06549300)

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 00964505

WASHER, .500X1.00X.105 FLAT Y
(Superseded to 06441900)

$1.49

$

In Stock, only 1 left!

0

35

Ariens 00967013

PIN, CVS .375X1.38X1.14 Y
(Superseded to 06820300)

$

$

Not available

36

Ariens 00967249

PIN, CVS .625X3.00X2.77 Y
(Superseded to 06823200)

$6.49

$

Usually ships in 4-12 days

0

37

Ariens 00180249

BALL JOINT, RH 5/16 MALE W/STD

$

$

Not available

38

Ariens 03816151

WLDT, RH STEERING BAR

$174.99

$

Usually ships in 4-12 days

0

38

Ariens 03816351

WLDT, LH STEERING BAR

$182.99

$

Usually ships in 4-12 days

0

39

Ariens 03816251

WLDT, HANDLE CONTROL RH

$

$

Not available

39

Ariens 03816451

WLDT, HANDLE CONTROL LH

$

$

Not available

40

Ariens 00180606

BALL JOINT, RH 5/16 FMAL W/STD

$

$

Not available

41

Ariens 00180961

WASHER, .400X1.27X.062 NYLON

$2.49

$

Usually ships in 4-12 days

0

42

Ariens 00252126

BUSHING, .750 X 1.00 X .750

$12.99

$

Usually ships in 4-12 days

0

43

Ariens 00960051

BOLT, 3/8-16X2.25 HEX 5 Y
(Superseded to 05962900)

$4.99

$

In Stock, Qty 20+

0

44

Ariens 00191605

FTG, 90 1/4HOSE X 1/2HOSE S/O

$10.99

$

In Stock, only 1 left!

0

45

Ariens 00181208

GROMMET, RUBBER TANK S/O
(Superseded to 00387300)

$9.99

$

In Stock, Qty 13

0

46

Ariens 00967356

RING, RUE .625 X .072 X 1.690

$3.99

$

Usually ships in 4-12 days

0
