993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) BATTERY AND FUEL TANK Parts Diagram

Pro-Chip Chipper, 18hp Kohler

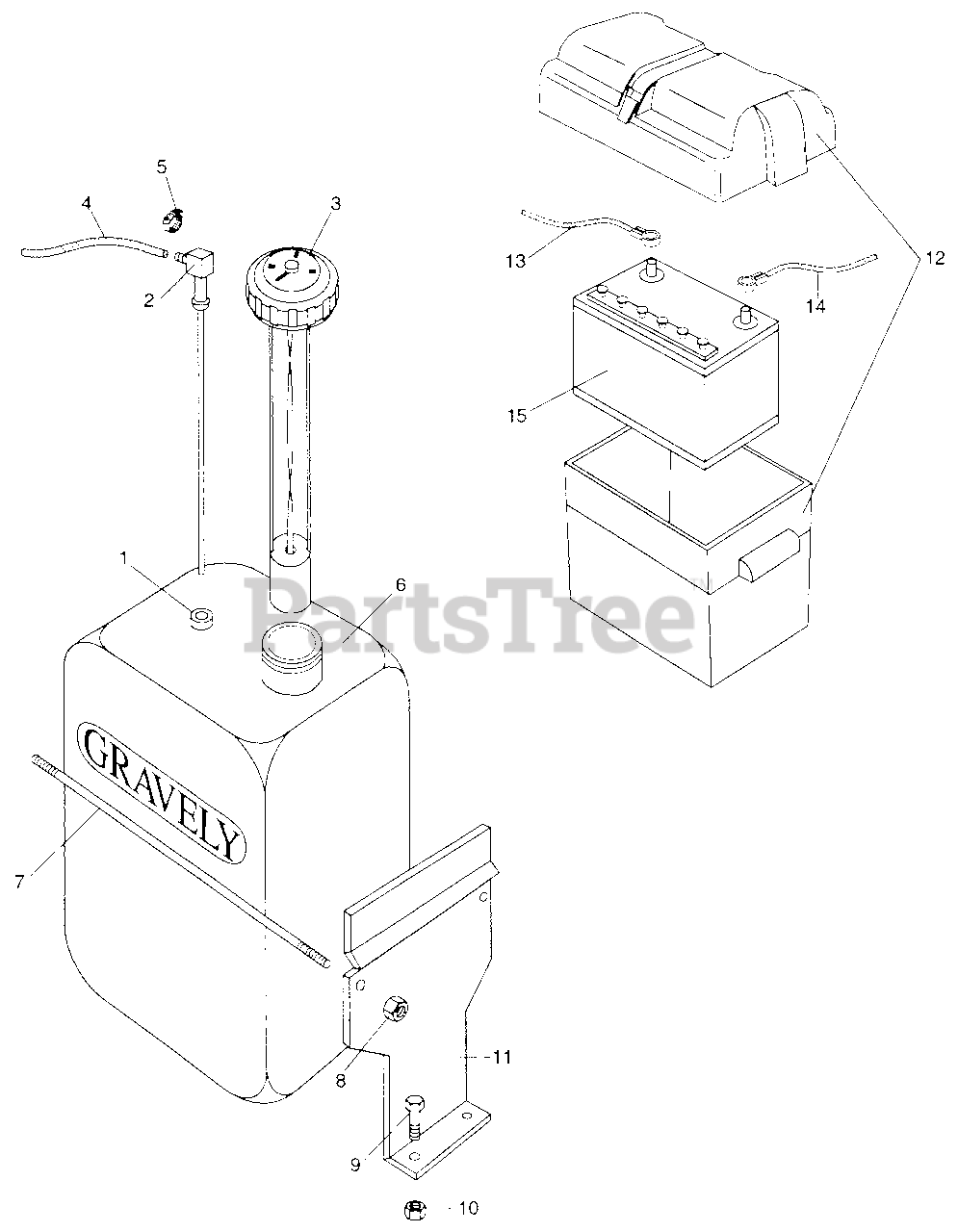

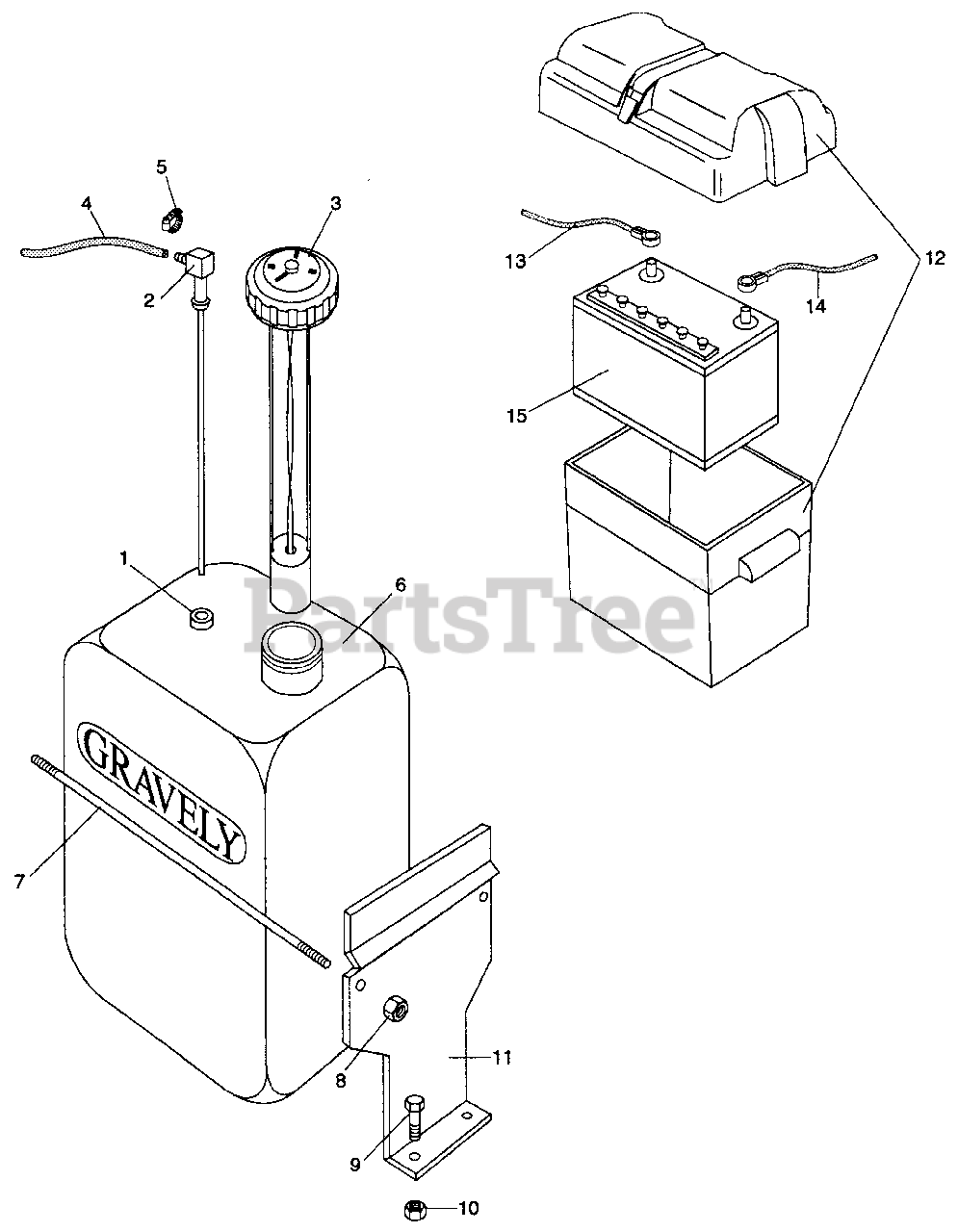

BATTERY AND FUEL TANK Parts Diagram

  • Title

1

Gravely 075114

BUSHING
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 089831

FTG, TANK
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 089832

GA, FUEL
(Superseded to 02087200)

$

$

Not available

4

Gravely 009243

GAS LINE - BULK
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 069243

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 089830

TANK, FUEL
(Superseded to 04315300)

$419.99

$

Usually ships in 4-12 days

0

7

Gravely 089895

ROD, TANK

$

$

Not available

8

Gravely 065066

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

9

Gravely 059266

BLT-HEX .31-18X.88 PL GR 5
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 065062

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 089879

WLDMT, TANK BRACKET
(Superseded to 08987900)

$

$

Not available

12

Gravely 093052

BATTERY BOX,(COVER & STRAP)
(Superseded to 09305200)

Note: (COVER & STRAP)

$

$

Not available

13

Gravely 093042

BATTERY CABLE(-)
(Superseded to 09304200)

Note: (-)

$

$

Not available

14

Gravely 093043

BATTERY CABLE(+)
(Superseded to 09304300)

Note: (+)

$

$

Not available

15

Gravely 093051

BATTERY MARINE TYPE
(Superseded to 09305100)

$

$

Not available
