993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) FLYWHEEL AND HOUSING Parts Diagram

Pro-Chip Chipper, 18hp Kohler

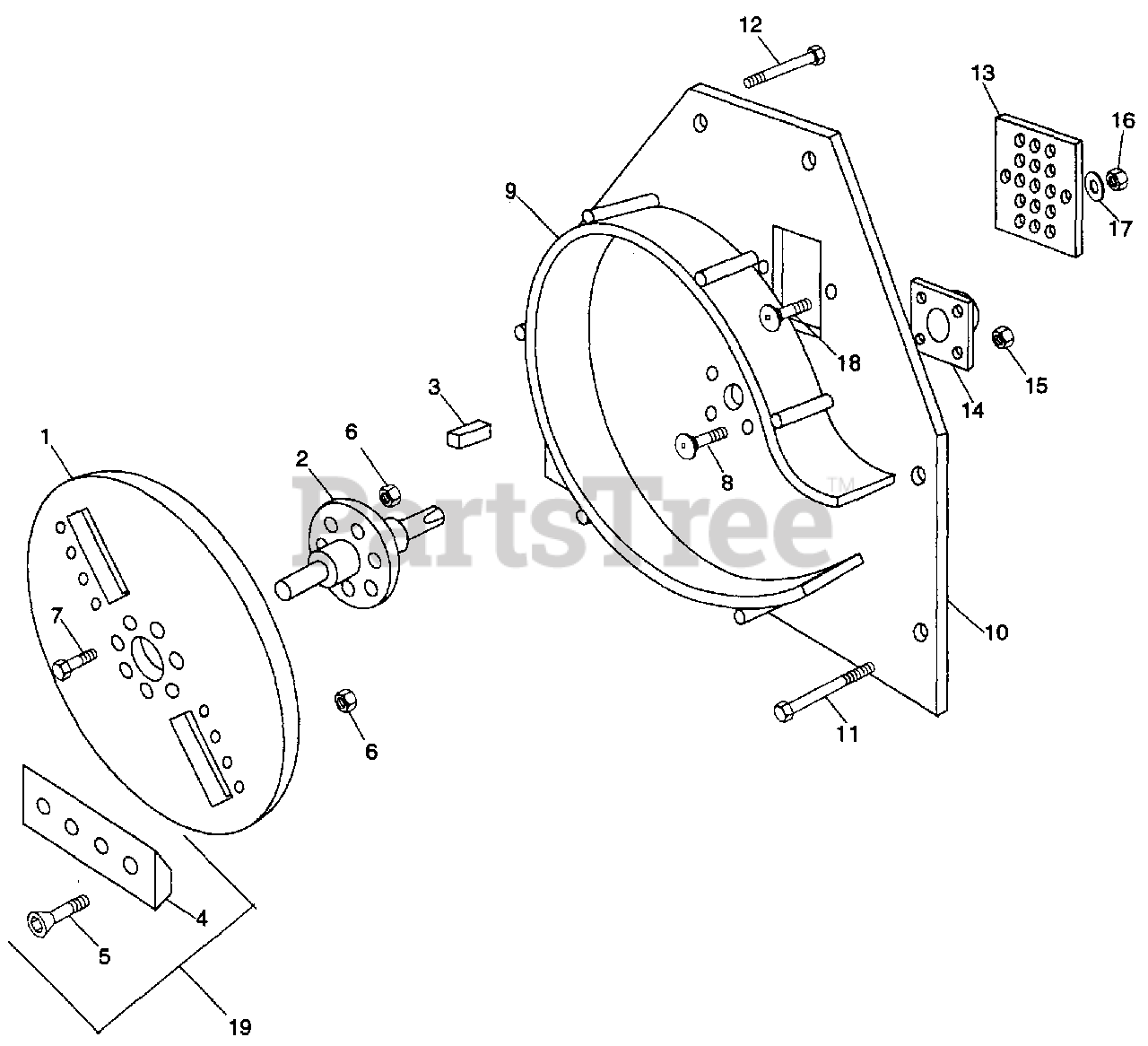

FLYWHEEL AND HOUSING Parts Diagram

  • Title

1

Gravely 093023

FLYWHEEL
(Superseded to 09302300)

$1429.99

$

Usually ships in 4-12 days

0

2

Gravely 093022

SHAFT-FLYWHEEL
(Superseded to 09302200)

$

$

Not available

3

Gravely 066056

KEY-STR .38X2.0X.38
(Superseded to 06605600)

$

$

Not available

4

Gravely 093026

CHIPPER KNIFE SET 210/PTO
(Superseded to 59304100)

$

$

Not available

5

Gravely 059248

BLT-FL-SKH.50-13X1.75 GR8 BP&O
(Superseded to 05924800)

$

$

Not available

6

Gravely 065127

NUT-LK-CONE .50-13 GR C YWZC
(Superseded to 06528200)

$3.99

$

In Stock, Qty 5

0

7

Gravely 059235

BLT-HEX M10 X 1.5X75 YWZC
(Superseded to 05969700)

$

$

Not available

8

Gravely 070097

BLT-LUG .50-20X1.50 BRZC
(Superseded to 07009700)

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 04100853

DRUM STRAP WELDMENT

$

$

Not available

10

Gravely 04100953

BLOWER SIDE L.H.

$

$

Not available

11

Gravely 059247

BLT-HEX .38-16X6.00 GR5 YWZC
(Superseded to 05966000)

$

$

Not available

12

Gravely 059254

BLT-HEX .38-16X5.50 GR5 YWZC
(Superseded to 05982000)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 04103153

INSPECTION PLATE

$

$

Not available

14

Gravely 093021

BRG-FLG 1.500X4X2.047
(Superseded to 09302100)

$

$

Not available

15

Gravely 065172

NUT-LK-TOP .50-20 GR C YWZC
(Superseded to 06517200)

$

$

Not available

16

Gravely 065018

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 063004

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

18

Gravely 070098

BLT-CARR SPLRIB.38-16X1.0GR5PL
(Superseded to 07009800)

$

$

Not available

19

Gravely 541004

CHIPPER KNIFE SET 210/PTO

$

$

Not available
