993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) TRAILER Parts Diagram

Pro-Chip Chipper, 18hp Kohler

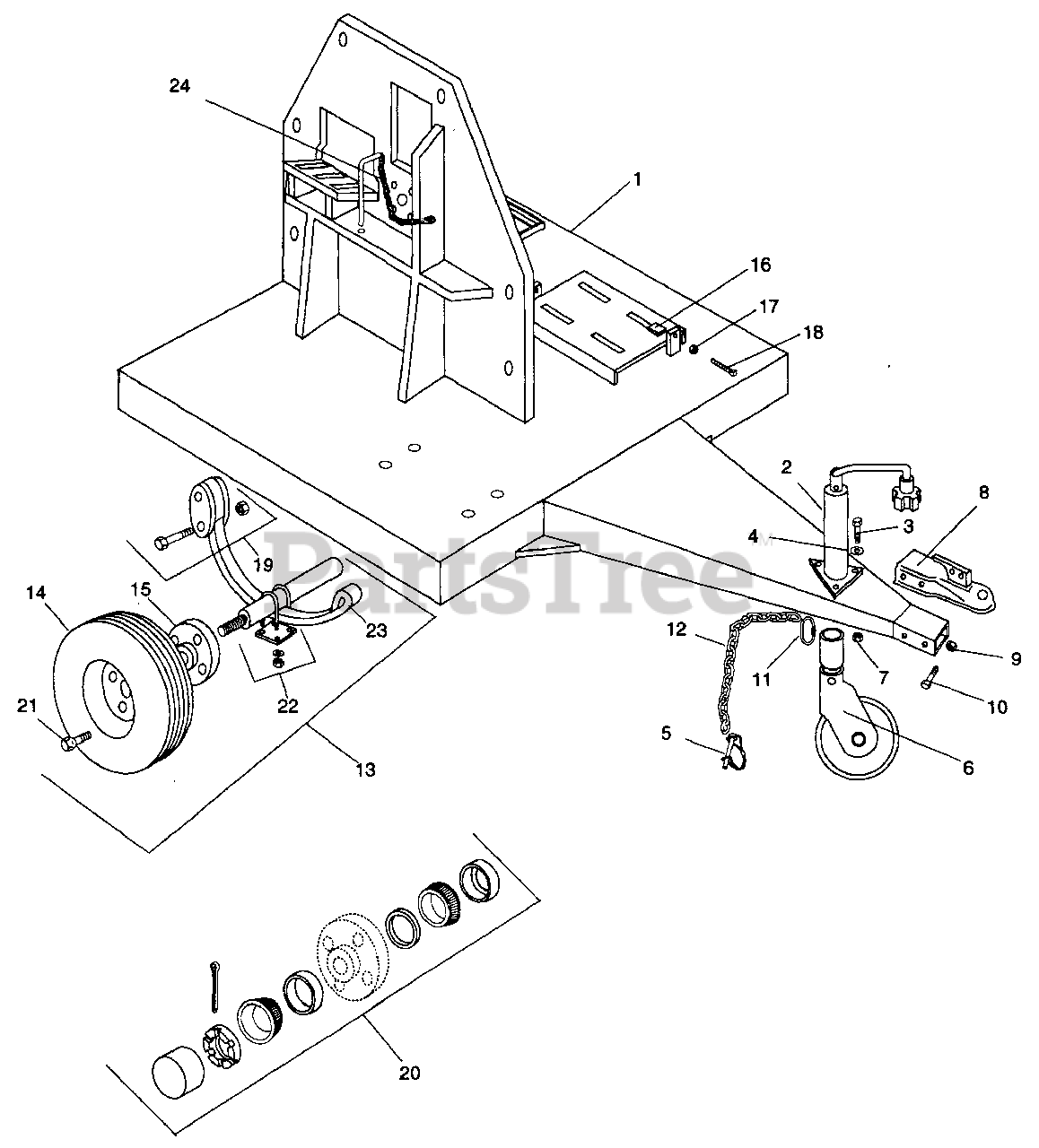

TRAILER Parts Diagram

  • Title

1

Gravely 4100153

TRAILER BED

$

$

Not available

2

Gravely 093017

JACK ASSEMBLY
(Superseded to 09301700)

$

$

Not available

3

Gravely 059244

BLT-HEX .44-20X1.25 GR5 YWZC
(Superseded to 05964800)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 064008

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 093020

QUICK LATCH PIN JACK WHEEL
(Superseded to 09302000)

$

$

Not available

6

Gravely 093019

SWIVEL WHEEL
(Superseded to 09301900)

$

$

Not available

7

Gravely 065082

NUT-LK-CROWN .437-14 PL
(Superseded to 06508200)

$

$

Not available

8

Gravely 093001

COUPLER 2" BALL TYPE
(Superseded to 09300100)

$

$

Not available

9

Gravely 065197

NUT-LK-CTR-JAM .50-13 YWZC(ND)
(Superseded to 06519700)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 059457

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.49

$

In Stock, only 2 left!

0

11

Gravely 093003

QUICK LINK 5/16" SAFETY TYPE
(Superseded to 09300300)

$

$

Not available

12

Gravely 093002

SAFETY CHAIN
(Superseded to 09300200)

$

$

Not available

13

Gravely 093009

AXLE-TRAILER, COMPLETE TW50
(Superseded to 09353300)

Note: (LESS TIRE)

$392.99

$

Usually ships in 4-12 days

0

14

Gravely 071197

T/WHL ASSY
(Superseded to 07119700)

$

$

Not available

15

Gravely 093010

HUB-WHEEL SERVICE ASSY
(Superseded to 09301000)

$

$

Not available

16

Gravely 04104253

ENGINE ADJUSTMENT BLOCK

$

$

Not available

17

Gravely 065018

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 060041

BLT-HEX .38-16X3.50 FTD YWZC
(Superseded to 05967800)

$

$

Not available

19

Gravely 593003

HARDWARE,KIT LUG BOLT DEXTER
(Superseded to 59300300)

$

$

Not available

20

Gravely 593001

BRG-REPLACEMENT ASSY
(Superseded to 05417300)

$

$

Not available

21

Gravely 593002

WHEEL, BOLT KIT DEXTER AXLE
(Superseded to 59300200)

$

$

Not available

22

Gravely 593004

SPRING-AXLE,SERVICE ASSY
(Superseded to 09301100)

$

$

Not available

23

Gravely 093011

SPRING-AXLE,SERVICE ASSY
(Superseded to 09301100)

$

$

Not available

24

Gravely 093030

PIN-ARBOR SHAFT LOCK
(Superseded to 59305300)

$

$

Not available
