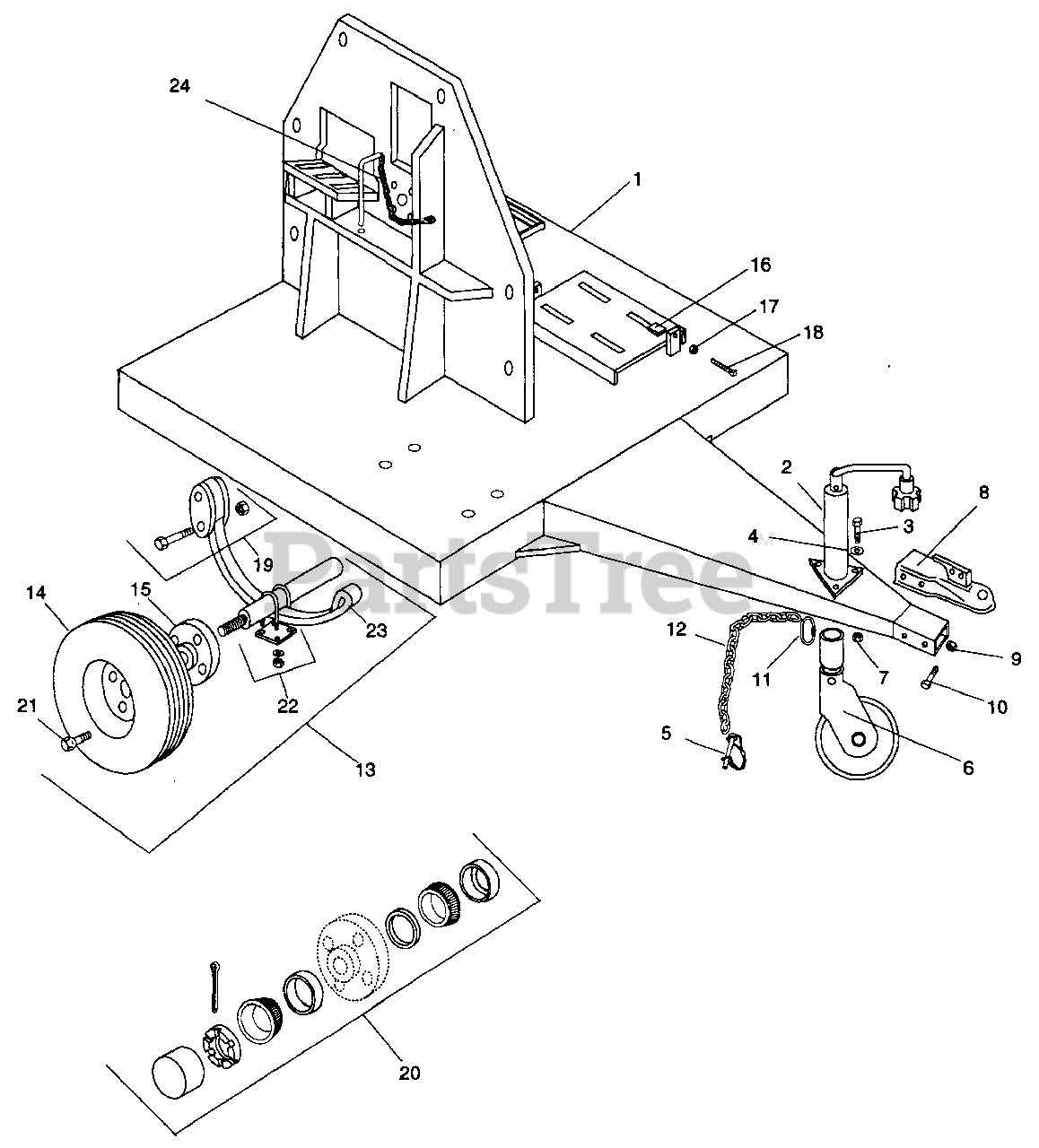

993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) TRAILER Parts Diagram

Pro-Chip Chipper, 18hp Kohler

TRAILER Parts Diagram

  • Title

1

Gravely 4100153

TRAILER BED

$

$

Not available

2

Gravely 093017

JACK ASSEMBLY
(Superseded to 09301700)

$

$

Not available

3

Gravely 059244

BLT HEX .44-14X1.25 PL GR 5
(Superseded to 05964800)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 064008

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 093020

QUICK LATCH PIN JACK WHEEL
(Superseded to 09302000)

$

$

Not available

6

Gravely 093019

SWIVEL WHEEL
(Superseded to 09301900)

$

$

Not available

7

Gravely 065082

NUT-LK-CROWN .437-14 PL
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 093001

2" COUPLER BALL TYPE
(Superseded to 09300100)

$

$

Not available

9

Gravely 065197

NUT-LK-CTR .500-13 PL
(Superseded to 06519700)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 059457

BLT-HEX .50-13X4.00 GR 8 PL
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

11

Gravely 093003

QUICK LINK 5/16 SAFETY TYPE
(Superseded to 09300300)

$

$

Not available

12

Gravely 093002

SAFETY CHAIN INCLUDES "S" HOOK
(Superseded to 09300200)

$

$

Not available

13

Gravely 093009

TRAILER AXLE COMPLETE-(LESS TIRE)
(Superseded to 09353300)

Note: (LESS TIRE)

$392.99

$

Usually ships in 4-12 days

0

14

Gravely 071197

TIRE & WHEEL ASSEMBLY
(Superseded to 07119700)

$

$

Not available

15

Gravely 093010

AXLE HUB, COMPLETE
(Superseded to 09301000)

$

$

Not available

16

4104253

ENGINE ADJUSTMENT BLOCK

$

$

Not available

17

Gravely 065018

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 7

0

18

Gravely 060041

SCR-SET .38-16X3.50 SQH PL
(Superseded to 05967800)

$

$

Not available

19

Gravely 593003

HARDWARE KIT LUG BOLT DEXTER
(Superseded to 59300300)

$

$

Not available

20

Gravely 593001

BEARING KIT DEXTER AXLE 2000#
(Superseded to 05417300)

$

$

Not available

21

Gravely 593002

WHEEL BOLT KIT DEXTER AXLE
(Superseded to 59300200)

$

$

Not available

22

Gravely 593004

U-BOLT KIT DEXTER AXLE 2000#
(Superseded to 09301100)

$

$

Not available

23

Gravely 093011

AXLE SPRING
(Superseded to 09301100)

$

$

Not available

24

Gravely 093030

FLYWHEEL LOCK PIN
(Superseded to 59305300)

$

$

Not available
