993005 - Gravely PTO Chipper, 540 Rpm, 3 Point Hitch (SN: 000101 & Above)

PTO Chipper, 540 Rpm, 3 Point Hitch

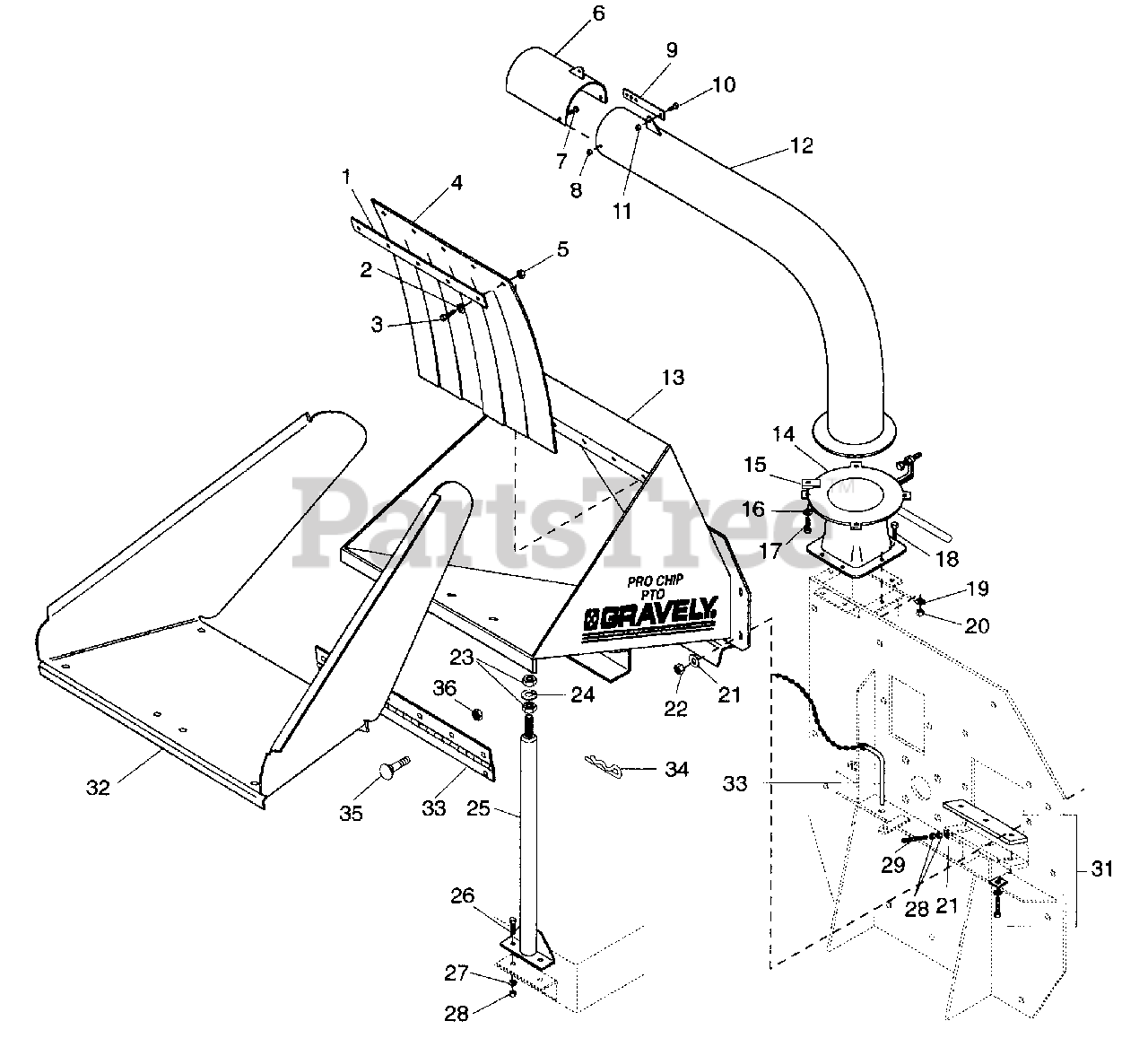

993005 - Gravely PTO Chipper, 540 Rpm, 3 Point Hitch (SN: 000101 & Above) > Parts Diagrams (3) > DISCHARGE CHUTE

  • Title
041027

1

Brace

Part# 041027

OEM Warranty Repair Part for Gravely

Not available

064094

2

Washer-Flat-Steel .265 x .500 x .087

Part# 064094 (Superseded to 06439500)

OEM Warranty Repair Part for Gravely

Not available

059082

3

Bolt-Hex .25-20 x .75 Grade 5

Part# 059082 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

093039

4

Rubber Flap

Part# 093039 (Superseded to 09303900)

OEM Warranty Repair Part for Gravely

Not available

065070

5

Nut-Locking Top .250-20

Part# 065070 (Superseded to 06529700)

OEM Warranty Repair Part for Gravely

Not available

041073

6

Deflector

Part# 041073 (Superseded to 04107300)

OEM Warranty Repair Part for Gravely

Not available

059249

7

Bolt-Hex .38-16 x 1.0

Part# 059249 (Superseded to 05924900)

OEM Warranty Repair Part for Gravely

Not available

065122

8

Nut-Locking Top .375-16

Part# 065122 (Superseded to 06529600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

041072

9

Deflector Arm

Part# 041072 (Superseded to 04107200)

OEM Warranty Repair Part for Gravely

Not available

059181

10

Bolt-Hex .31-18 x 1.00 Grade 5

Part# 059181 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

065124

11

Nut-Locking Top .312-18

Part# 065124 (Superseded to 06529800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

041071

12

Discharge Chute

Part# 041071 (Superseded to 04107100)

OEM Warranty Repair Part for Gravely

Not available

041183

13

PTO-Hopper Weldment

Part# 041183

OEM Warranty Repair Part for Gravely

Not available

041069

14

Discharge Neck

Part# 041069 (Superseded to 09349900)

OEM Warranty Repair Part for Gravely

Not available

041070

15

Clamp

Part# 041070

Not available

063003

16

Washer-Lock .312 x .097

Part# 063003 (Superseded to 06307400)

OEM Warranty Repair Part for Gravely

Not available

059266

17

Bolt-Hex .31-18 x .88 Grade 5

Part# 059266 (Superseded to 05947800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

059083

18

Bolt-Hex .25-20 x 1.00 Grade 5

Part# 059083 (Superseded to 05947700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

063002

19

Washer-Lock .250 x .077

Part# 063002 (Superseded to 06308000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

065032

20

Nut .250-20

Part# 065032 (Superseded to 06533200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

064130

21

Washer-Flat-Steel .406 x 1.000 x .188

Part# 064130 (Superseded to 06402800)

OEM Warranty Repair Part for Gravely

Not available

065122

22

Nut-Locking Top .375-16

Part# 065122 (Superseded to 06529600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

065025

23

Nut-Jam .75-10

Part# 065025 (Superseded to 06537700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

063008

24

Washer-Lock .750 x .188

Part# 063008 (Superseded to 06310300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

041019

25

Hopper Stand

Part# 041019 (Superseded to 20688700)

OEM Warranty Repair Part for Gravely

Not available

059145

26

Bolt-Hex .38-16 x 1.00 Grade 5

Part# 059145 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

063004

27

Washer-Lock .375 x .155

Part# 063004 (Superseded to 06306500)

OEM Warranty Repair Part for Gravely

Not available

065018

28

Nut-Hex .375-16 Grade 2

Part# 065018 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

060041

29

Screw-Set .38-16 x 3.50

Part# 060041 (Superseded to 05967800)

OEM Warranty Repair Part for Gravely

Not available

093030

30

Flywheel Lock Pin

Part# 093030 (Superseded to 59305300)

OEM Warranty Repair Part for Gravely

Not available

793001

31

Bed Knife Kit 210/PTO

Part# 793001

OEM Warranty Repair Part for Gravely

Not available

093114

32

Safety Bonnet Weldment

Part# 093114 (Superseded to 09311400)

OEM Warranty Repair Part for Gravely

Not available

093108

33

Hinge

Part# 093108 (Superseded to 09310800)

OEM Warranty Repair Part for Gravely

Not available

067022

34

Pin-Hair Internal .14 x .43 x 2.75

Part# 067022 (Superseded to 06714000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

062086

35

Bolt Round Head Square Neck .25-20 x .50

Part# 062086 (Superseded to 06220600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

065087

36

Nut-Locking-Center .250-20

Part# 065087 (Superseded to 06508700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
