993016 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 80hp Perkins Diesel (SN: 000101 & Above) BELTS AND IDLER Parts Diagram

Pro-Chip Chipper, 80hp Perkins Diesel

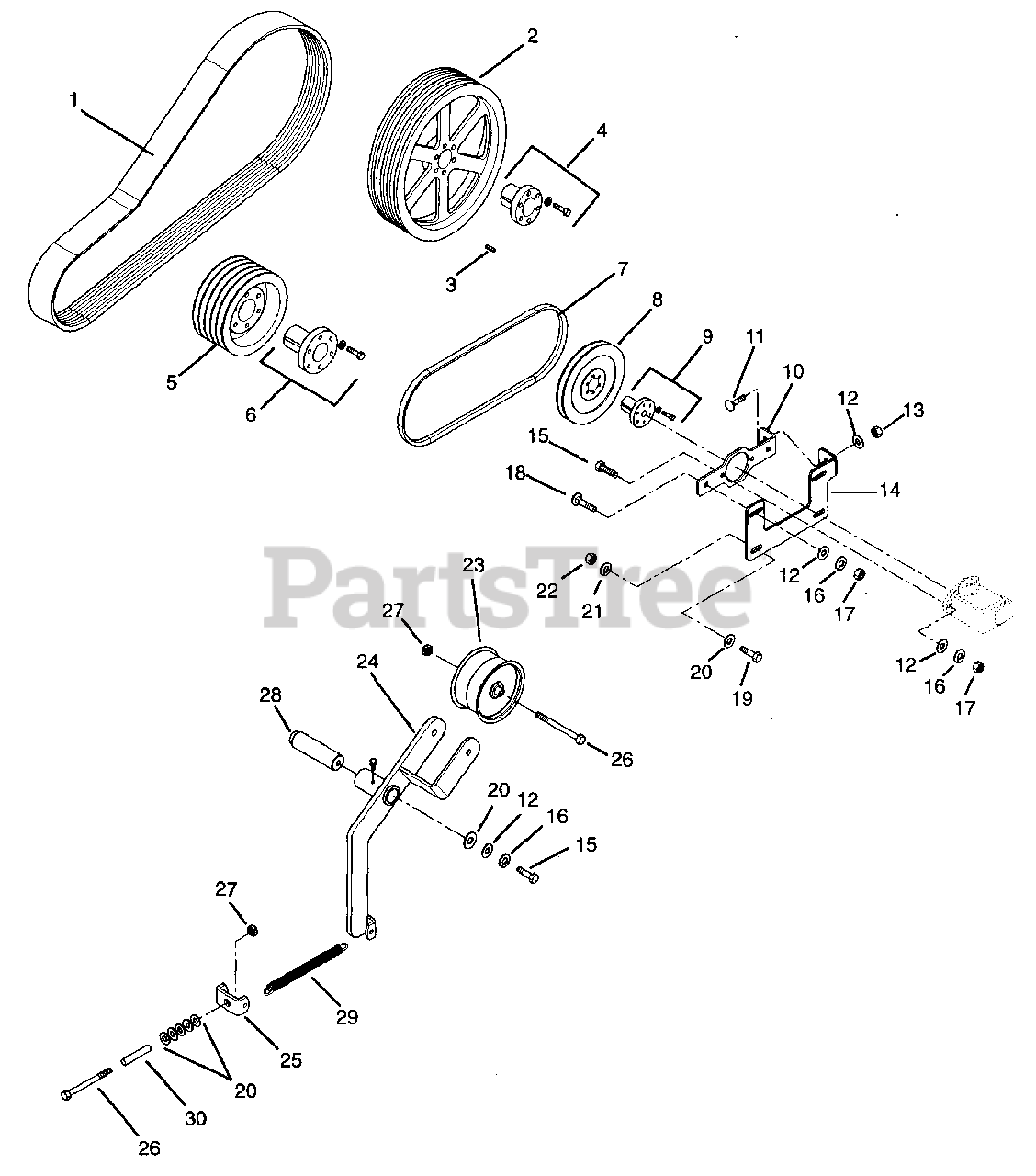

BELTS AND IDLER Parts Diagram

  • Title

1

Gravely 07229800

Drive Belt
(Superseded to 07234100)

$

$

Not available

2

Gravely 07322100

Pulley Driven 16 in

$

$

Not available

3

Gravely 06606400

Key-Straight .50 x .50 x 1.75

$

$

Not available

4

Gravely 07322400

Bushing-Sheave

$

$

Not available

5

Gravely 07322200

Drive Sheave

$

$

Not available

6

Gravely 07322400

Bushing-Sheave

Note: (Used Only On Model(s): 017).

$

$

Not available

Gravely 07323200

Bushing - 2.250 Bore w/.625 Key

Note: (Used Only On Model(s): 016).

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 07215300

V-Belt 23 HP Matched Set

$64.99

$

Usually ships in 4-12 days

0

8

Gravely 07322600

Pump Sheave

$

$

Not available

9

Gravely 07322500

Bushing-Sheave

$

$

Not available

10

Gravely 09317500

Hydraulic Pump Bracket

$

$

Not available

11

Gravely 06208900

Bolt-Round Head Square Neck .38-16 x 2.75
(Superseded to 06225400)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06400800

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06503900

Nut-Locking .375-16
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09317600

Hydraulic Pump Mount Bracket

$

$

Not available

15

Gravely 035952

Bolt-Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

16

Gravely 131100

Washer-Lock .438 x .133
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 06503500

Nut .437-14

$3.49

$

In Stock, only 4 left!

0

18

Gravely 06214700

Bolt-Round Head Square Neck .44-14 x 1.50
(Superseded to 06224500)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 05905200

Bolt-Hex .50-20 x .75 Grade 5

$

$

Not available

20

Gravely 06412000

Washer-Flat-Steel .563 x 1.375 x .109
(Superseded to 06442000)

$3.49

$

In Stock, Qty 15

0

21

Gravely 120384

Washer-Lock .50 Reg
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

22

Gravely 120378

Nut .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 07322300

Pulley-Idler

$

$

Not available

24

Gravely 09315300

Idler Arm Weldment
(Superseded to 09355200)

$

$

Not available

25

Gravely 09315302

Spring Bracket

$

$

Not available

26

Gravely 443734

Bolt-Hex .50-13 x 6.00
(Superseded to 05961800)

$

$

Not available

27

Gravely 06504600

Nut-Locking-Center .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

28

Gravely 09316600

Idler Arm Rod
(Superseded to 59311100)

$

$

Not available

29

Gravely 039364

Spring-Tension .156 x 1.062 x 2.68
(Superseded to 08310700)

$39.99

$

Usually ships in 4-12 days

0

30

Gravely 09321200

Spacer-Idler Spring

$

$

Not available
