993016 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 80hp Perkins Diesel (SN: 000101 & Above) FEED HOPPER Parts Diagram

Pro-Chip Chipper, 80hp Perkins Diesel

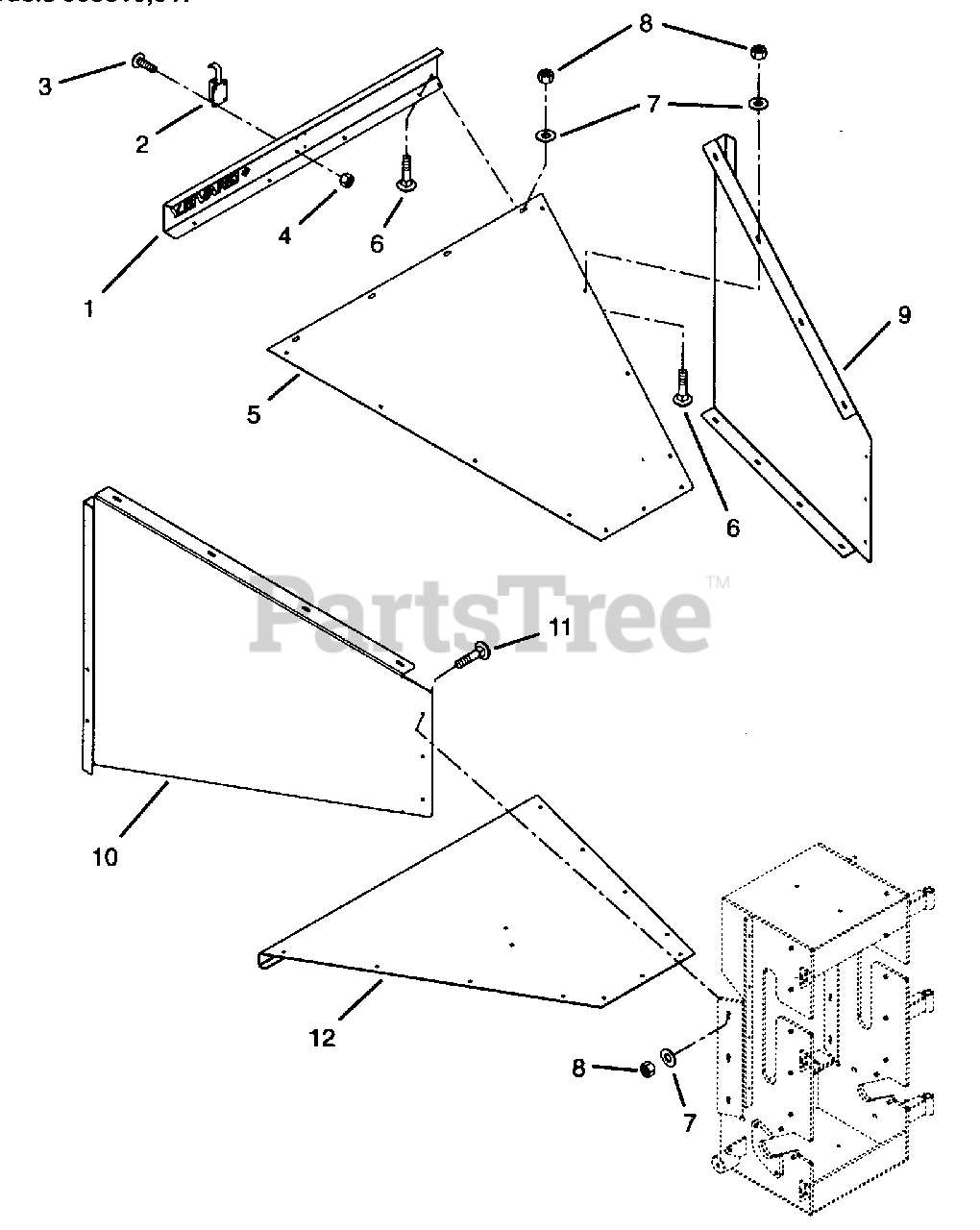

FEED HOPPER Parts Diagram

  • Title

1

Gravely 09317100

Hopper Safety Tab

$

$

Not available

2

Gravely 09321100

Latch - 495

$

$

Not available

3

Gravely 06104000

Screw-Machine 10-24 x .50

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 036191

Nut-Keps 10-24
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

5

Gravely 09316800

Hopper Top

$

$

Not available

6

Gravely 06216600

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06215700)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 06503900

Nut-Locking .375-16
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09317000

Hopper Left Hand Side
(Superseded to 09324400)

$

$

Not available

10

Gravely 09316900

Hopper Right Hand Side
(Superseded to 09310100)

$

$

Not available

11

Gravely 036552

Bolt-Round Head Square Neck .312-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

12

Gravely 09316700

Hopper Bottom
(Superseded to 09337500)

$

$

Not available
