993016 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 80hp Perkins Diesel (SN: 000101 & Above) FLYWHEEL AND HOUSING Parts Diagram

Pro-Chip Chipper, 80hp Perkins Diesel

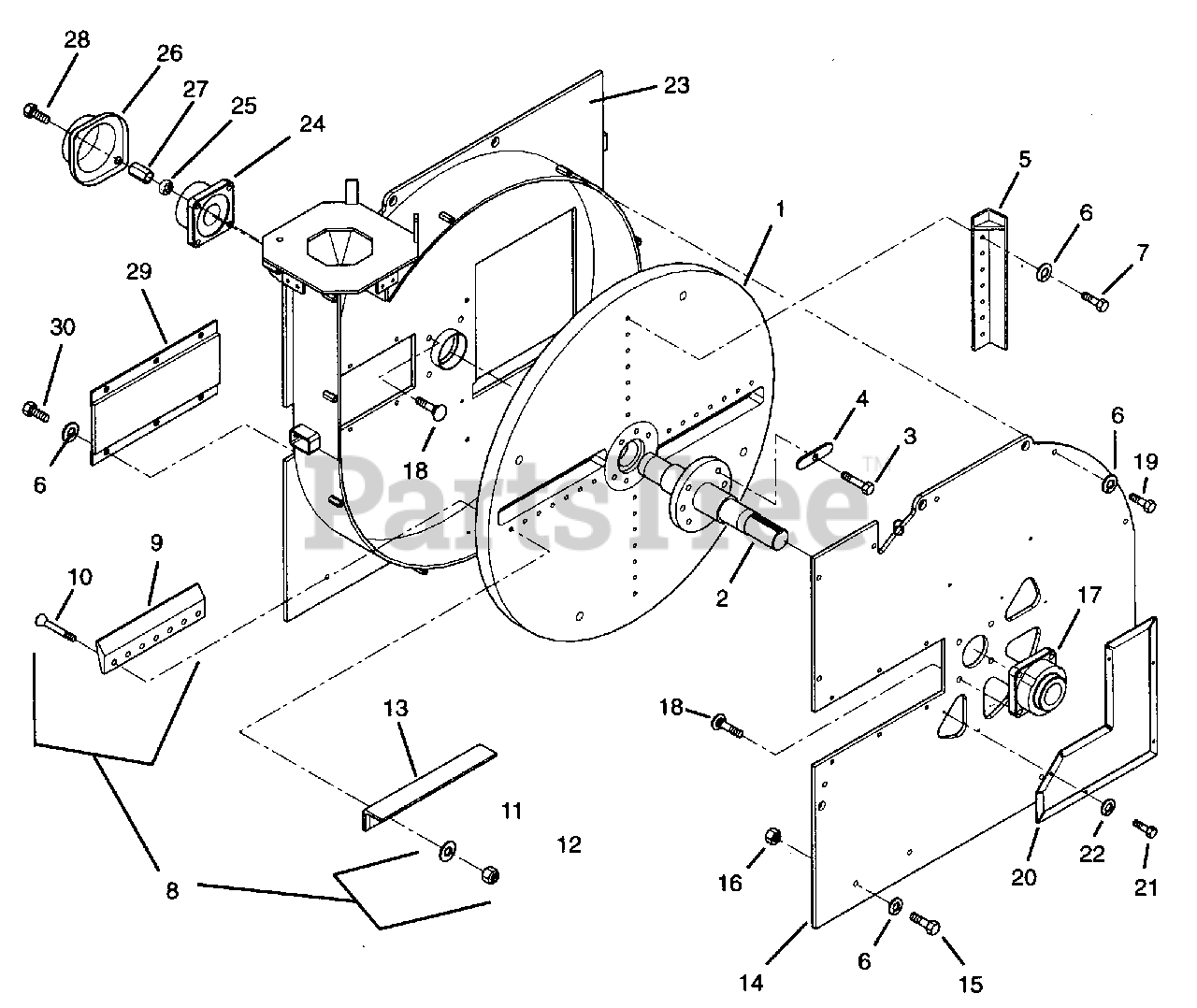

FLYWHEEL AND HOUSING Parts Diagram

  • Title

1

Gravely 09311800

Flywheel

$

$

Not available

2

Gravely 09312400

Flywheel Shaft Weldment

$

$

Not available

3

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

4

Gravely 04125200

Lock Tab

$

$

Not available

5

Gravely 09321000

Impeller Weldment

$

$

Not available

6

Gravely 131101

Washer-Lock .500 x .151
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

7

Gravely 180175

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 59304700

Chipper Knife Set 495(Contains Items 9-12)

Note: (Contains Items 9-12)

$

$

Not available

9

Gravely 09313400

Cutter Knife
(Superseded to 59304700)

$

$

Not available

10

Gravely 05929700

Screw-Socket Head .50-13 x 3.5 Grade 8

$

$

Not available

11

Gravely 06403200

Washer-Flat-Steel .568 x 1.750 x .219

$

$

Not available

12

Gravely 06512700

Nut-Locking-Crown .50-13
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 09321000

Impeller Weldment

$

$

Not available

14

Gravely 09314600

Housing(Front)

Note: (Front)

$

$

Not available

15

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 8

$

$

Not available

16

Gravely 06512700

Nut-Locking-Crown .50-13
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 05418400

Bearing-Flange 2.00

$

$

Not available

18

Gravely 04129900

Rib Neck Bolt

$

$

Not available

19

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 8

$

$

Not available

20

Gravely 09315700

Screen Frame Weldment

$

$

Not available

21

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 2 left!

0

22

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09314500

Housing(Rear)

Note: (Rear)

$

$

Not available

24

Gravely 05418300

Bearing-Flange 2.00 Inside Diameter,Non-Expandable

$

$

Not available

25

Gravely 06519200

Nut-Locking Flex

$

$

Not available

26

Gravely 09309200

Bearing Cover

$

$

Not available

27

Gravely 09309500

Coupler

$

$

Not available

28

Gravely 05948900

Bolt .625-18 x .875

$

$

Not available

29

Gravely 09315100

Access Cover Weldment

$

$

Not available

30

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0
