993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) APRON AND FEED CONTROL BAR Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

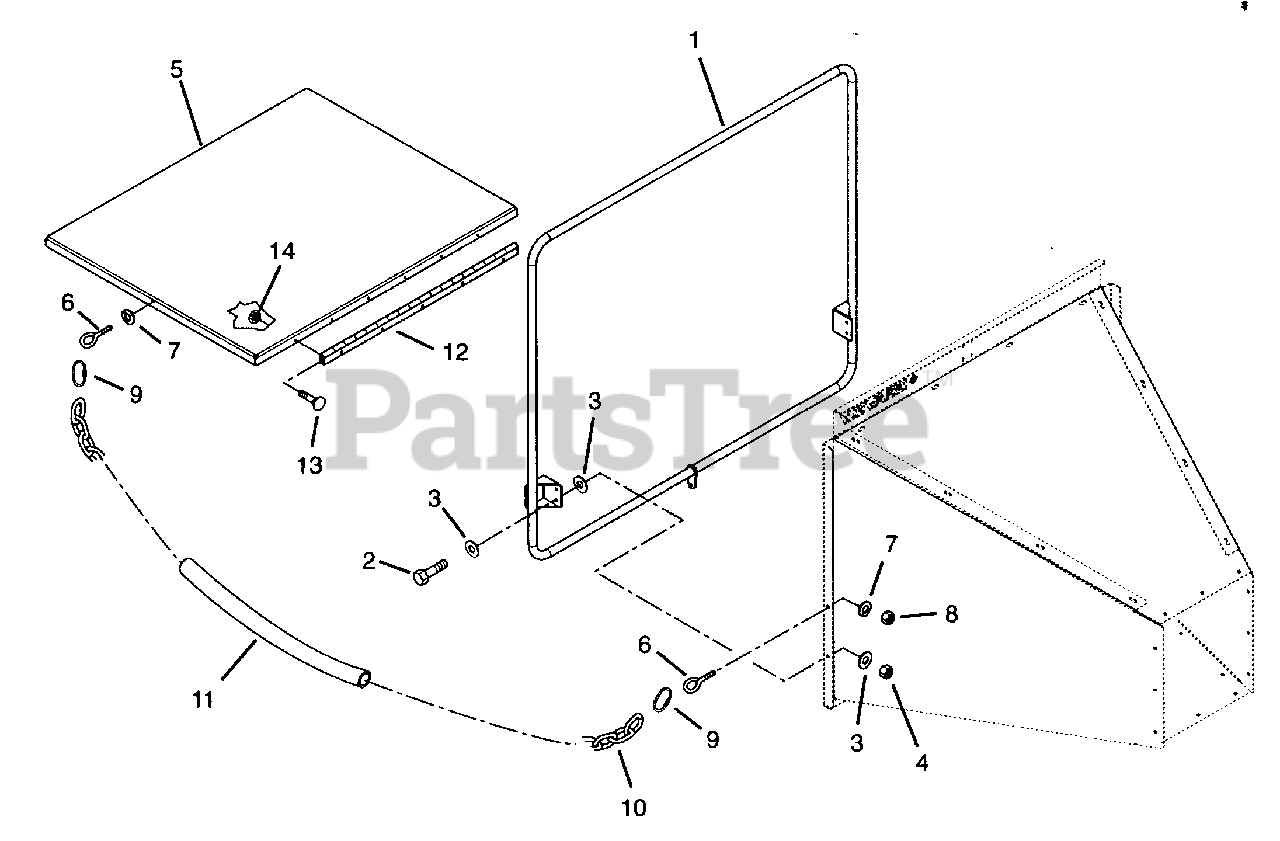

APRON AND FEED CONTROL BAR Parts Diagram

  • Title

1

Gravely 09315200

Feed control Bar
(Superseded to 59305700)

$

$

Not available

2

Gravely 180128

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 06400800

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 06503900

Nut-Locking .375-16
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09316500

Apron Weldment
(Superseded to 09327400)

$

$

Not available

6

Gravely 04138200

Eye Bolt .375 x 1.25

$

$

Not available

7

Gravely 131099

Washer-Lock .375 x .155
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

8

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 09300300

Quick Link 5/16"

$

$

Not available

10

Gravely 09325800

Apron Chain - 495
(Superseded to 09328300)

$

$

Not available

11

Gravely 04130700

Vinyl Tubing 1 - 1/2"

$

$

Not available

12

Gravely 04125400

Hinge

$

$

Not available

13

Gravely 06208600

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06220600)

$0.99

$

In Stock, Qty 7

0

14

Gravely 06504000

Nut-Locking-Center .250-20
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0
