993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) BED KNIFE Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

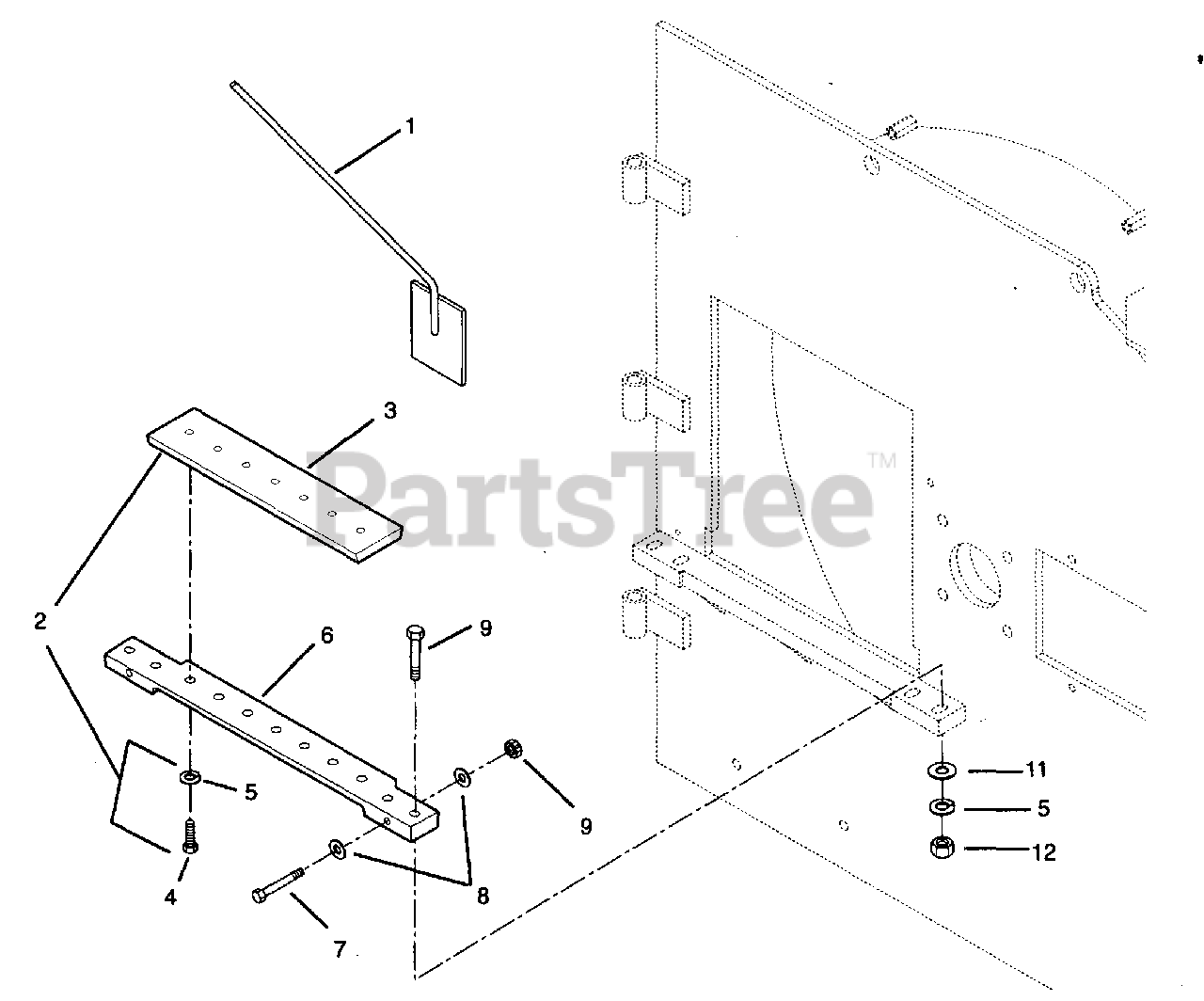

BED KNIFE Parts Diagram

  • Title

1

Gravely 04133651

KNIFE GAUGE (.060)

$

$

Not available

2

Gravely 59304800

BED KNIFE KIT 495

Note: (Inc. 3,4,5)

$

$

Not available

3

Gravely 09313500

BED KNIFE
(Superseded to 59304800)

$

$

Not available

4

Gravely 05930600

BLT-HEX .50-13X1.25 YZ GR5

$

$

Not available

5

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09314800

ADJUSTMENT BAR

$

$

Not available

7

Gravely 05953600

BLT-HEX .38-24X2.75 PL GR5

$

$

Not available

8

Gravely 06439900

WSHR-HDND .406X.812X.075

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 06524500

NUT-LK-NYL .375-24 W/INSR
(Superseded to 06538800)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06412000

WSHR-FL-STL.563X1.37X.109PL
(Superseded to 06442000)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0
