993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) BELTS AND IDLER Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

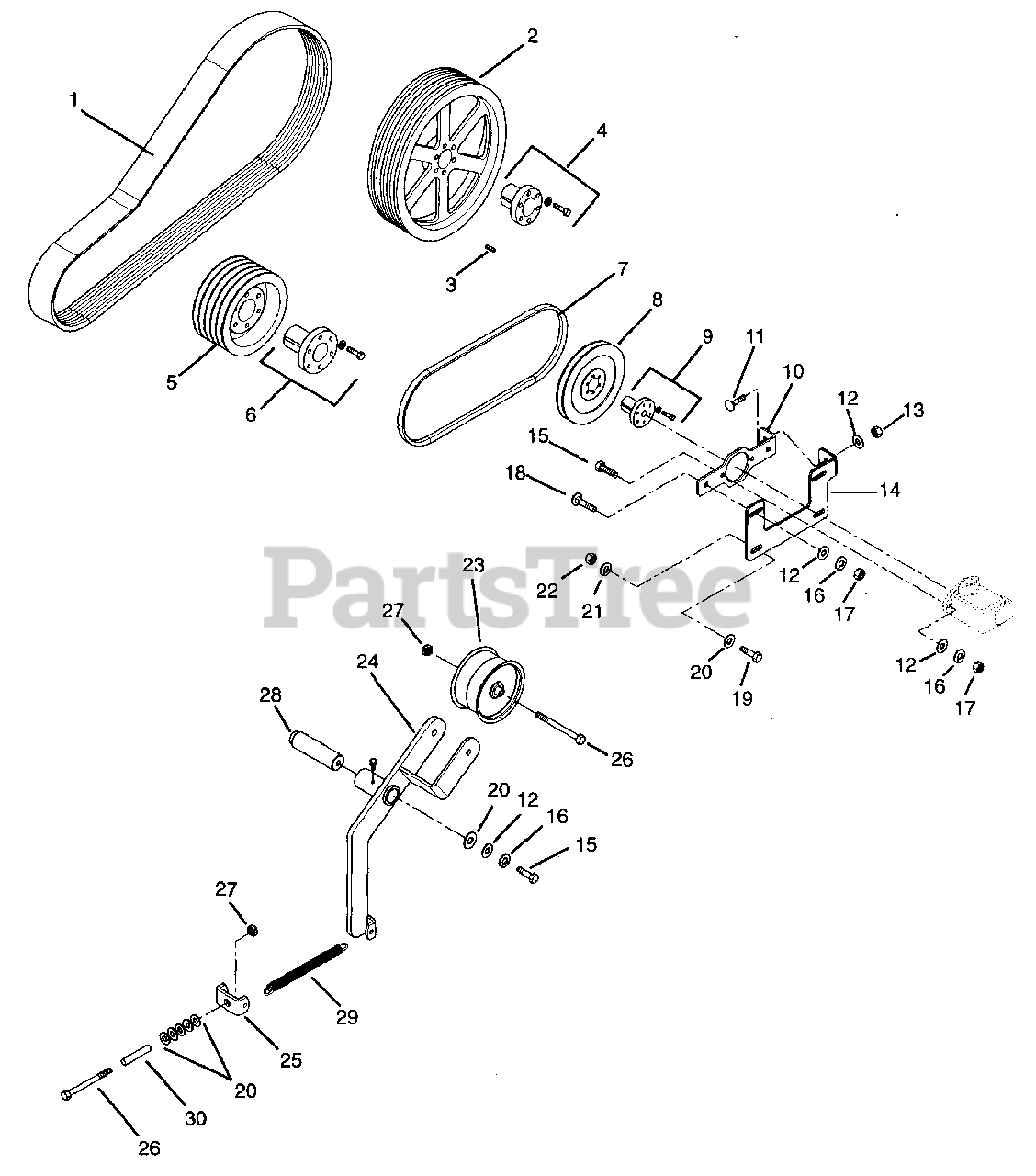

BELTS AND IDLER Parts Diagram

  • Title

1

Gravely 07229800

OBSOLETE
(Superseded to 07234100)

$

$

Not available

2

Gravely 07322100

PULLEY DRIVEN 16 IN

$

$

Not available

3

Gravely 06606400

KEY-STR .50X.50X1.75

$

$

Not available

4

Gravely 07322400

BUSHING - SHEAVE

$

$

Not available

5

Gravely 07322200

DRIVE SHEAVE

$

$

Not available

6

Gravely 07322400

BUSHING - SHEAVE

Note: (Used Only On Model(s): 017).

$

$

Not available

Gravely 07323200

BUSHING-2.250 BORE W/.625 KEY

Note: (Used Only On Model(s): 016).

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 07215300

V-BELT, HB-WRAPPED (SET)

$74.99

$

Usually ships in 4-12 days

0

8

Gravely 07322600

PUMP SHEAVE

$

$

Not available

9

Gravely 07322500

BUSHING - SHEAVE

$

$

Not available

10

Gravely 09317500

HYD PUMP BRACKET

$

$

Not available

11

Gravely 06208900

BLT-RDHDSQNK .38-16X2.75 GR5PL
(Superseded to 06225400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09317600

HYD PUMP MOUNT BRKT

$

$

Not available

15

Gravely 035952

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 6

0

16

Gravely 131100

WSHR-LK .438X.133 HVY YWZC
(Superseded to 06310700)

$3.49

$

In Stock, only 1 left!

0

17

Gravely 06503500

NUT-HEX .44-14 YWZC

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06214700

BLT-RDHDSQNK .44-14X1.50 PL
(Superseded to 06224500)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 05905200

BLT-HEX .75-16X2.50 PL GR5

$

$

Not available

20

Gravely 06412000

WSHR-FL-STL.563X1.37X.109PL
(Superseded to 06442000)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 07322300

PULLY IDLER

$

$

Not available

24

Gravely 09315300

IDLER ARM WELD
(Superseded to 09355200)

$

$

Not available

25

Gravely 09315302

SPRING BRACKET

$

$

Not available

26

Gravely 443734

BLT-HEX .50-13X6.00 GR5 YWZC
(Superseded to 05961800)

$

$

Not available

27

Gravely 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$4.99

$

In Stock, Qty 19

0

28

Gravely 09316600

IDLER ARM ROD
(Superseded to 59311100)

$

$

Not available

29

Gravely 039364

SG-TENS .156X1.062X8.68 WLD ??
(Superseded to 08310700)

$

$

Not available

30

Gravely 09321200

IDLER SPRING SPACER

$

$

Not available
