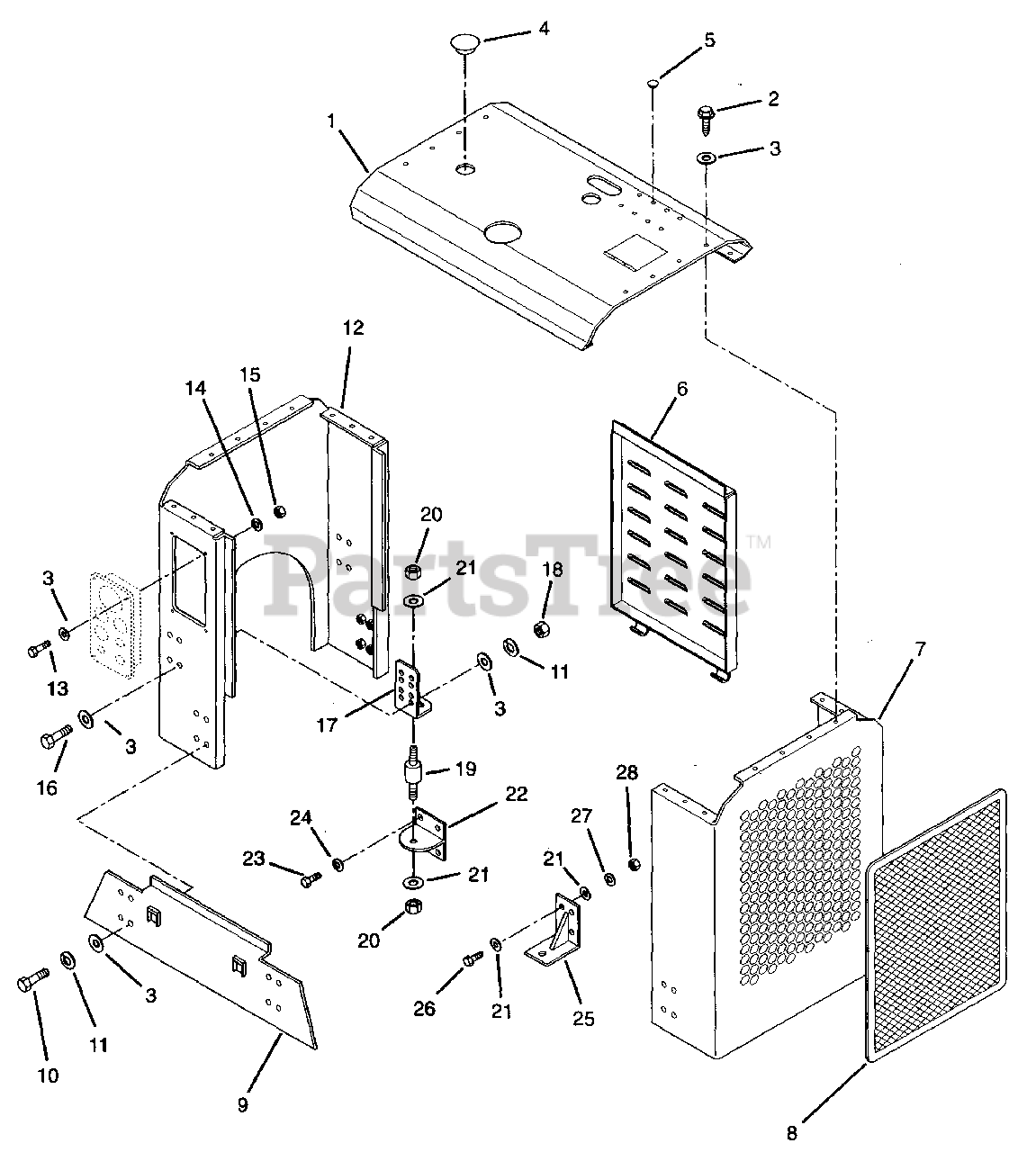

993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) ENGINE HOUSING Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

ENGINE HOUSING Parts Diagram

  • Title

1

Gravely 09322753

HOOD

$

$

Not available

2

Gravely 036905

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09323200

HOLE PLUG

$

$

Not available

5

Gravely 09323300

HOLE PLUG

Note: (Used Only On Model(s): 016).

$

$

Not available

Gravely 09323300

HOLE PLUG

Note: (Used Only On Model(s): 017).

$

$

Not available

6

Gravely 09322853

DOOR
(Superseded to 09322850)

$

$

Not available

7

Gravely 09322653

FRONT PANEL
(Superseded to 09322650)

$

$

Not available

8

Gravely 09320800

RADIATOR SCREEN
(Superseded to 59311000)

$

$

Not available

9

Gravely 09322953

SIDE FILLER PANEL

$

$

Not available

10

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09322553

REAR PANEL
(Superseded to 09322550)

$

$

Not available

13

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

14

Gravely 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

In Stock, Qty 7

0

15

Gravely 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 10

0

16

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 09323000

OUTER SUPPORT BRACKET

$

$

Not available

18

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

19

Gravely 09323400

ISOLATOR

$

$

Not available

20

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 09323100

INNER SUPPORT BRACKET

$

$

Not available

23

Gravely 180173

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

24

Gravely 131101

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 2 left!

0

25

Gravely 09323500

INNER SUPPORT BRACKET

$

$

Not available

26

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0
