993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) FEED HOPPER Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

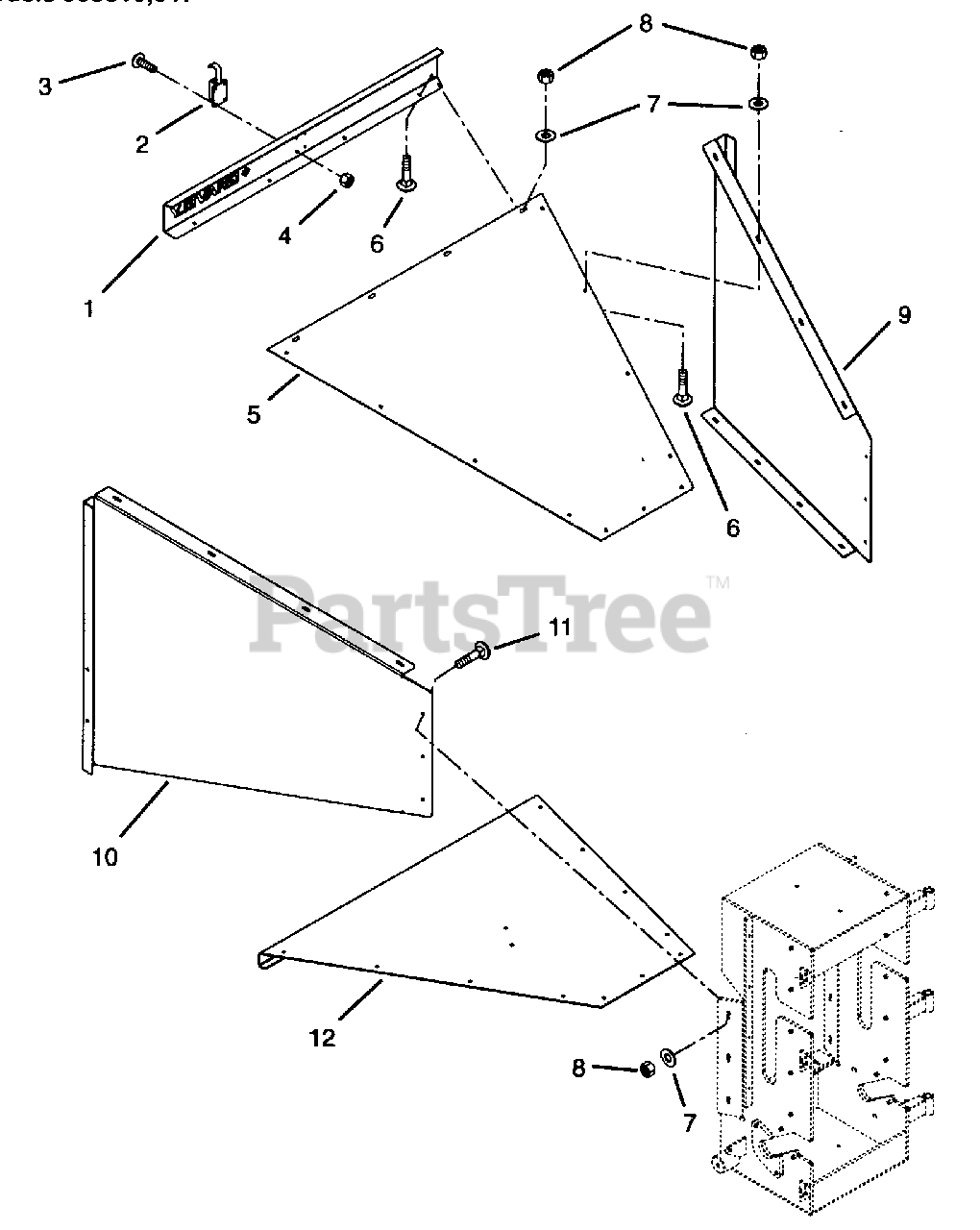

FEED HOPPER Parts Diagram

  • Title

1

Gravely 09317100

HOPPER SAFETY TAB

$

$

Not available

2

Gravely 09321100

LATCH-495

$

$

Not available

3

Gravely 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 036191

NUT-HEX 10-24 YWZC
(Superseded to 06536600)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 09316800

HOPPER TOP

$

$

Not available

6

Gravely 06216600

BLT-RDHDSQNK .31-18X.75
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09317000

HOPPER LH SIDE
(Superseded to 09324400)

$

$

Not available

10

Gravely 09316900

HOPPER RH SIDE
(Superseded to 09310100)

$

$

Not available

11

Gravely 036552

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09316700

HOPPER BOTTOM
(Superseded to 09337500)

$

$

Not available
