993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) FLYWHEEL AND HOUSING Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

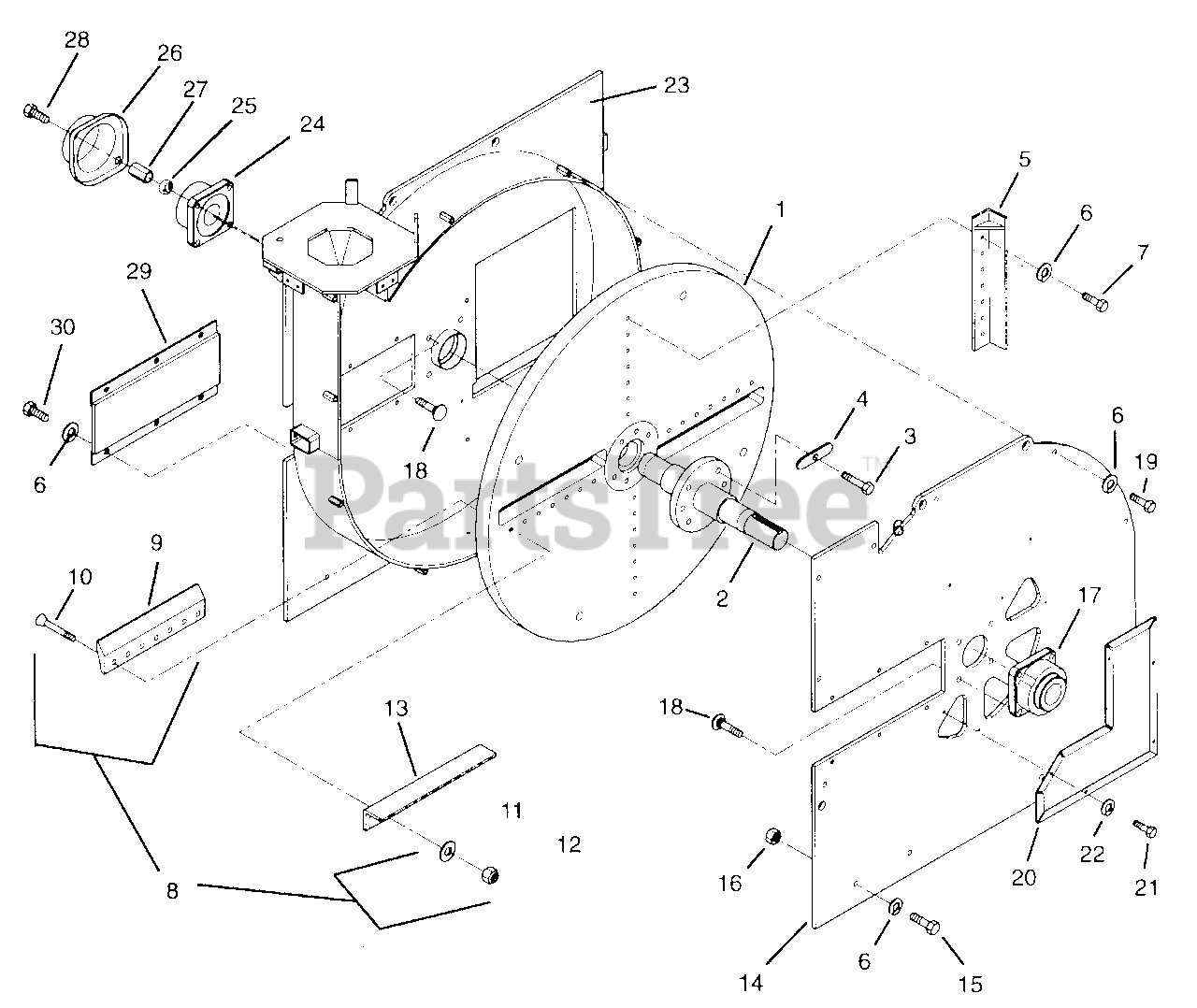

FLYWHEEL AND HOUSING Parts Diagram

  • Title

1

Gravely 09311800

FLYWHEEL 495

$

$

Not available

2

Gravely 09312400

FLYWHEEL SHAFT WELDMENT

$

$

Not available

3

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 04125200

LOCK TAB

$

$

Not available

5

Gravely 09321000

IMPELLER WELDMENT

$

$

Not available

6

Gravely 131101

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 2 left!

0

7

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

8

Gravely 59304700

CHIPPER KNIFE SET 495

Note: (Contains Items 9-12)

$

$

Not available

9

Gravely 09313400

CUTTER KNIFE
(Superseded to 59304700)

$

$

Not available

10

Gravely 05929700

BLT-FL-SKH.50-13X3.50 GR8 BP&O

$

$

Not available

11

Gravely 06403200

WSHR-FL-STL .568X1.750X.219

$

$

Not available

12

Gravely 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, Qty 5

0

13

Gravely 09321000

IMPELLER WELDMENT

$

$

Not available

14

Gravely 09314600

HOUSING (FRONT)

Note: (Front)

$

$

Not available

15

Gravely 05946000

BLT-HEX .50-13X1.75 YZ GR8

$

$

Not available

16

Gravely 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, Qty 5

0

17

Gravely 05418400

BRG-FLG 2.4375ID EXPANDABLE

$

$

Not available

18

Gravely 04129900

BOLT-RIB NECK .625-18 X 2.19

$

$

Not available

19

Gravely 05946000

BLT-HEX .50-13X1.75 YZ GR8

$

$

Not available

20

Gravely 09315700

SCREEN FRAME WELDMENT

$

$

Not available

21

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 09314500

REAR HOUSING WELDMENT

Note: (Rear)

$

$

Not available

24

Gravely 05418300

BRG-FLG 2.4375 ID NON-EXPANDAB

$

$

Not available

25

Gravely 06519200

NUT-LK .625-18 FLEX YWZC

$

$

Not available

26

Gravely 09309200

BEARING COVER

$

$

Not available

27

Gravely 09309500

COUPLER

$

$

Not available

28

Gravely 05948900

BLT-HEX .62-18X1.00 GR5 YWZC

$

$

Not available

29

Gravely 09315100

ACCESS COVER WELDMENT

$

$

Not available

30

Gravely 180173

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0
