993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) HYDRAULIC RESERVOIR AND FILTER Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

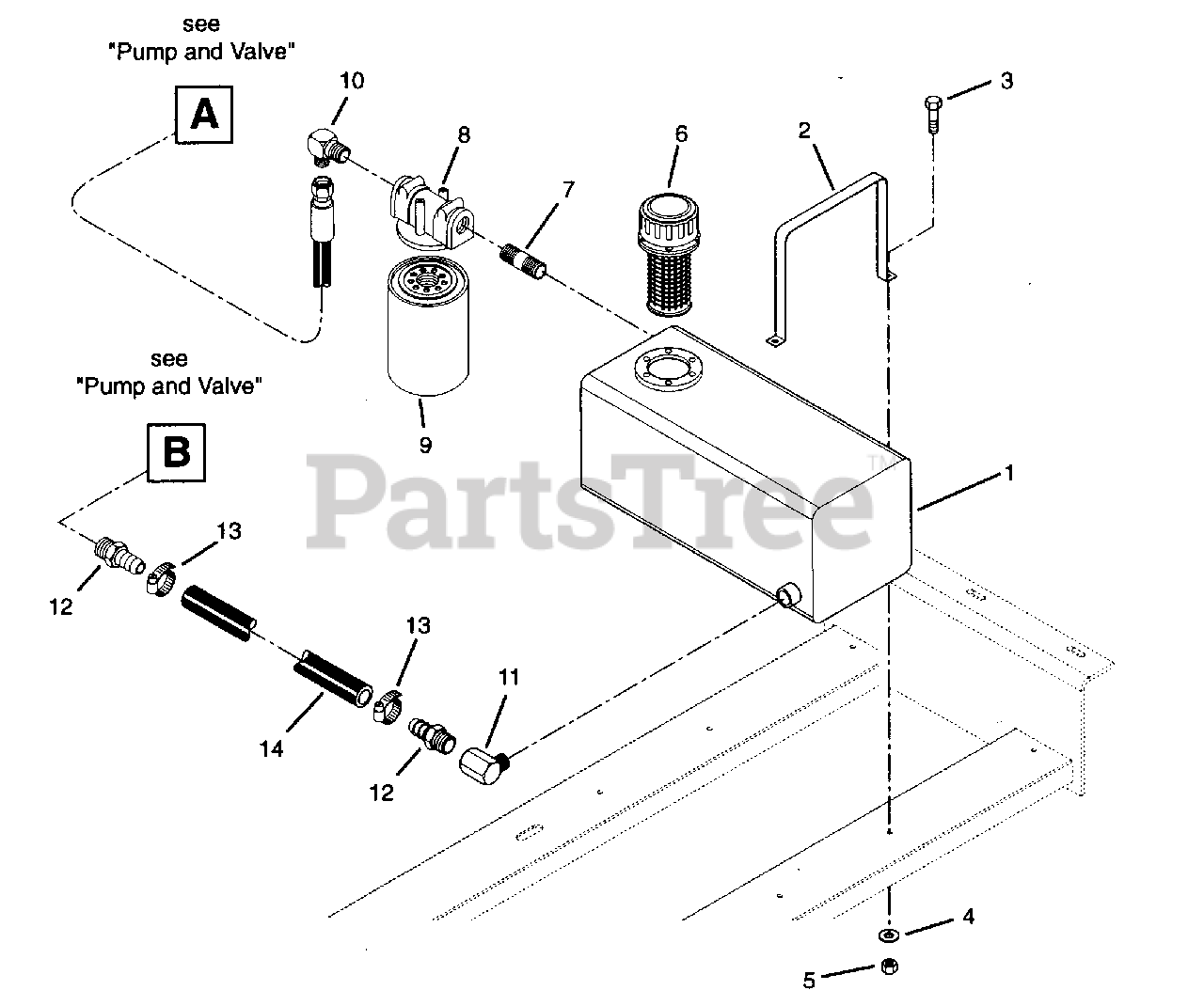

HYDRAULIC RESERVOIR AND FILTER Parts Diagram

  • Title

1

Gravely 04122253

HYDRAULIC TANK WELDMENT
(Superseded to 04122250)

$

$

Not available

2

Gravely 09321900

HYD. TANK STRAP

$

$

Not available

3

Gravely 180128

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04105800

FILLER CAP ASSEMBLY

$

$

Not available

7

Gravely 04133400

STANDARD PIPE NIPPLE

$

$

Not available

8

Gravely 04108000

FILTER PARKER 307690 12ATIOC

$

$

Not available

9

Gravely 04108100

REPLACEMENT ELEMENT

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 050961

ADPTR-HYD EL 3/4 "O" TO 3/4
(Superseded to 07018200)

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 09324000

90 DEG. STREET ELBOW

$

$

Not available

12

Gravely 07027300

ADPTR-BARBED INSERT

$

$

Not available

13

Gravely 04132100

CLAMP-HOSE 1 3/16 TO 1 3/4 H20

$

$

Not available

14

Gravely 09323900

SUCTION HOSE

$

$

Not available
