993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) WHEELS, BRAKES, SUSPENSION Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

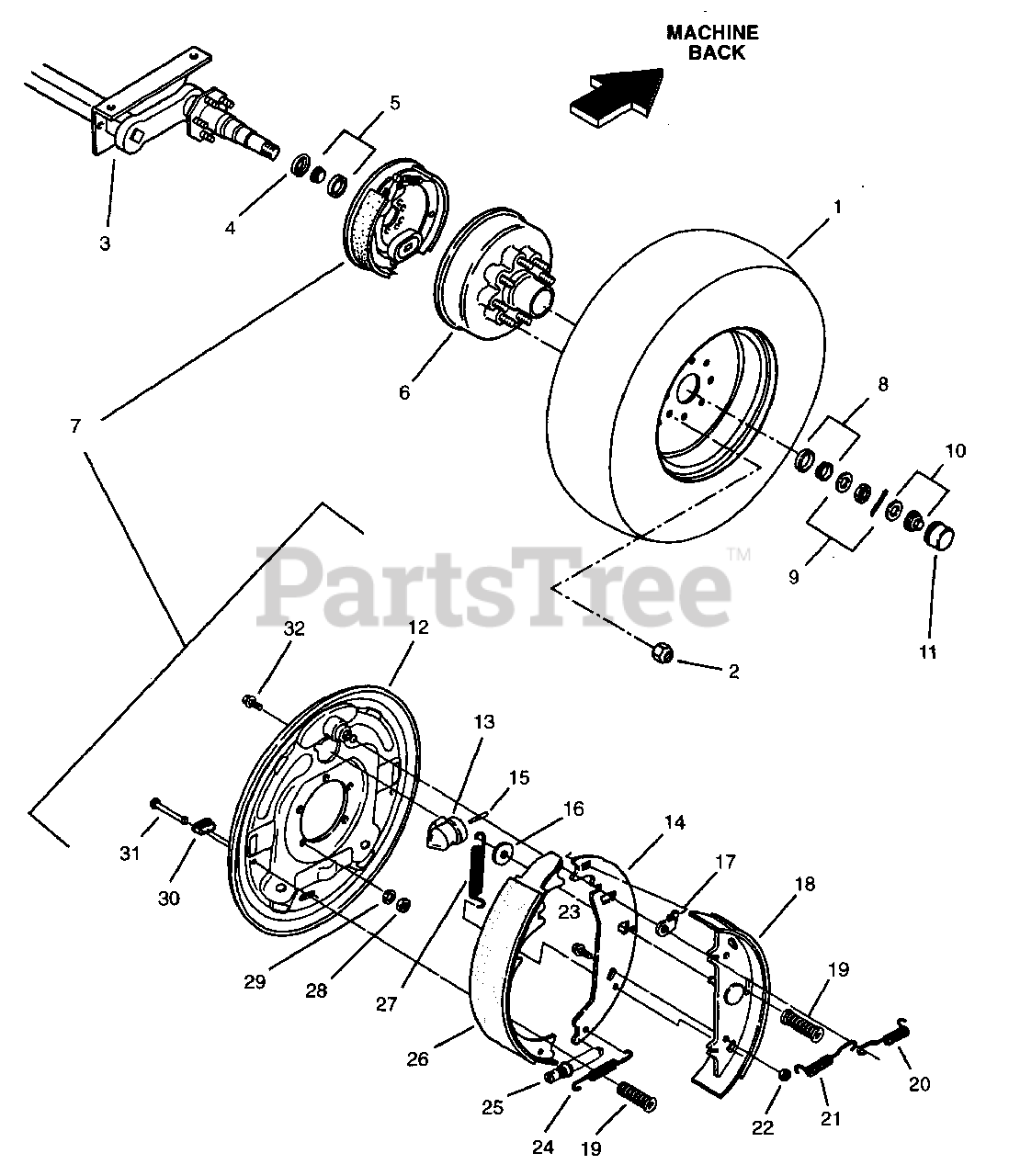

WHEELS, BRAKES, SUSPENSION Parts Diagram

  • Title

1

Gravely 07140100

T/RIM ASSY 3170 LB CAP

$

$

Not available

2

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 09317200

AXLE 6000LB 8 LUG HYD SURGE

$

$

Not available

4

Gravely 59303300

GREASE SEAL

$

$

Not available

5

Gravely 59303400

BEARING CUP AND CONE-INNER

$

$

Not available

6

Gravely 59303200

HUB AND DRUM

$

$

Not available

7

Gravely 59302300

LH BRAKE ASSEMBLY,HYD

Note: (Contains Items12-32)

$

$

Not available

Gravely 59302400

RH BRAKE ASSEMBLY,HYD

Note: (Contains Items12-32)

$

$

Not available

8

Gravely 59303500

BEARING CUP AND CONE-OUTER

$

$

Not available

9

Gravely 59303800

HARDWARE KIT

$

$

Not available

10

Gravely 59303700

PLUG KIT

$

$

Not available

11

Gravely 59303600

GREASE CAP

$

$

Not available

12

Gravely 59302500

BACKING PLATE ASSEMBLY,HYD

$

$

Not available

13

Gravely 59302600

LH BRAKE CYLINDER KIT (HYD)

$

$

Not available

Gravely 59302700

RH BRAKE CYLINDER KIT (HYD)

$

$

Not available

14

Gravely 59303900

SHOE LEVER,HYD

$

$

Not available

Gravely 59302900

BRAKE SHOE & LINING KIT-LH,HYD

Note: (Inc. 18,19,26,31)

$

$

Not available

5

Gravely 09303000

FLYWHEEL LOCK PIN
(Superseded to 59305300)

Note: (Inc. 18,19,26,31)

$

$

Not available

5

Gravely 09303100

SHIM-FLYWHEEL SHAFT

Note: (Inc. 19,20,21,24,27)

$

$

Not available

5

Gravely 09302800

RETAINER
(Superseded to 06401108)

Note: (Inc. 24,25)

$2.99

$

In Stock, Qty 20+

0
