993019 - Gravely PTO Chipper, 540 Rpm, 3 Point Hitch (SN: 000101 & Above) DRIVE SHAFT Parts Diagram

PTO Chipper, 540 Rpm, 3 Point Hitch

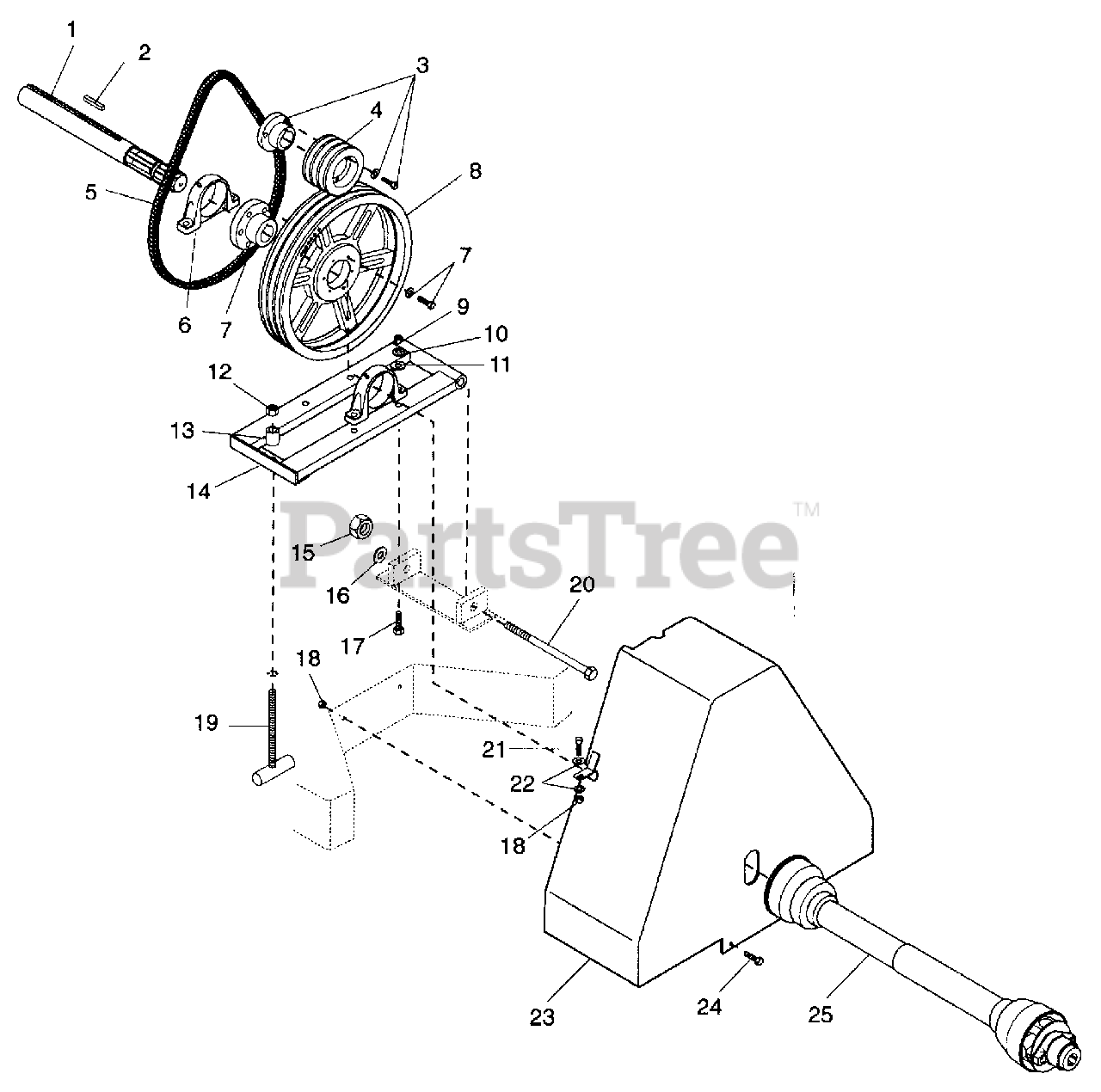

DRIVE SHAFT Parts Diagram

  • Title

1

Gravely 041189

PTO JACK SHAFT
(Superseded to 04118900)

$

$

Not available

2

Gravely 066056

KEY-STR .38X2.0X.38
(Superseded to 06605600)

$

$

Not available

3

Gravely 041188

ENG,20HP KOHLER MAG. PS.49562

$

$

Not available

4

Gravely 073144

PLY-V 3GR A/B 4.20 FOR T BSHG
(Superseded to 07314400)

$

$

Not available

5

Gravely 072193

OBSOLETE
(Superseded to 07233700)

$

$

Not available

6

Gravely 054179

BRG-P-BLOCK 1.500X2BLTX2.344
(Superseded to 05417900)

$

$

Not available

7

Gravely 093045

BUSHING SK X 1-1/2
(Superseded to 09304500)

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 073142

PLY-V 3GR A/B 15.40 FOR T BSHG
(Superseded to 07314200)

$

$

Not available

9

Gravely 065021

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 063006

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 064201

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 065158

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 041187

WLDMT,HANDLEBAR
(Superseded to 21257100)

$

$

Not available

14

Gravely 041185

BRACKET, FIXED HANDLEBAR L.H.

$

$

Not available

15

Gravely 065139

NUT-LK-FLEX 1.0-8 (ND)
(Superseded to 06513900)

$

$

Not available

16

Gravely 064046

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 059213

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

18

Gravely 065062

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 041186

BRKT,FIXED HANDLEBAR R.H

$

$

Not available

20

Gravely 059270

BLT-HEX 1-8X11 PL G8
(Superseded to 05927000)

$

$

Not available

21

Gravely 059181

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 064002

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 04119000

BELT GUARD WELDMENT

$121.99

$

Usually ships in 4-12 days

0

24

Gravely 059135

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 741003

PTO KIT

$

$

Not available
