993022 (Pro-Chip 310) - Gravely Pro-Chip Chipper, Less Trailer & Engine (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Chip Chipper, Less Trailer & Engine

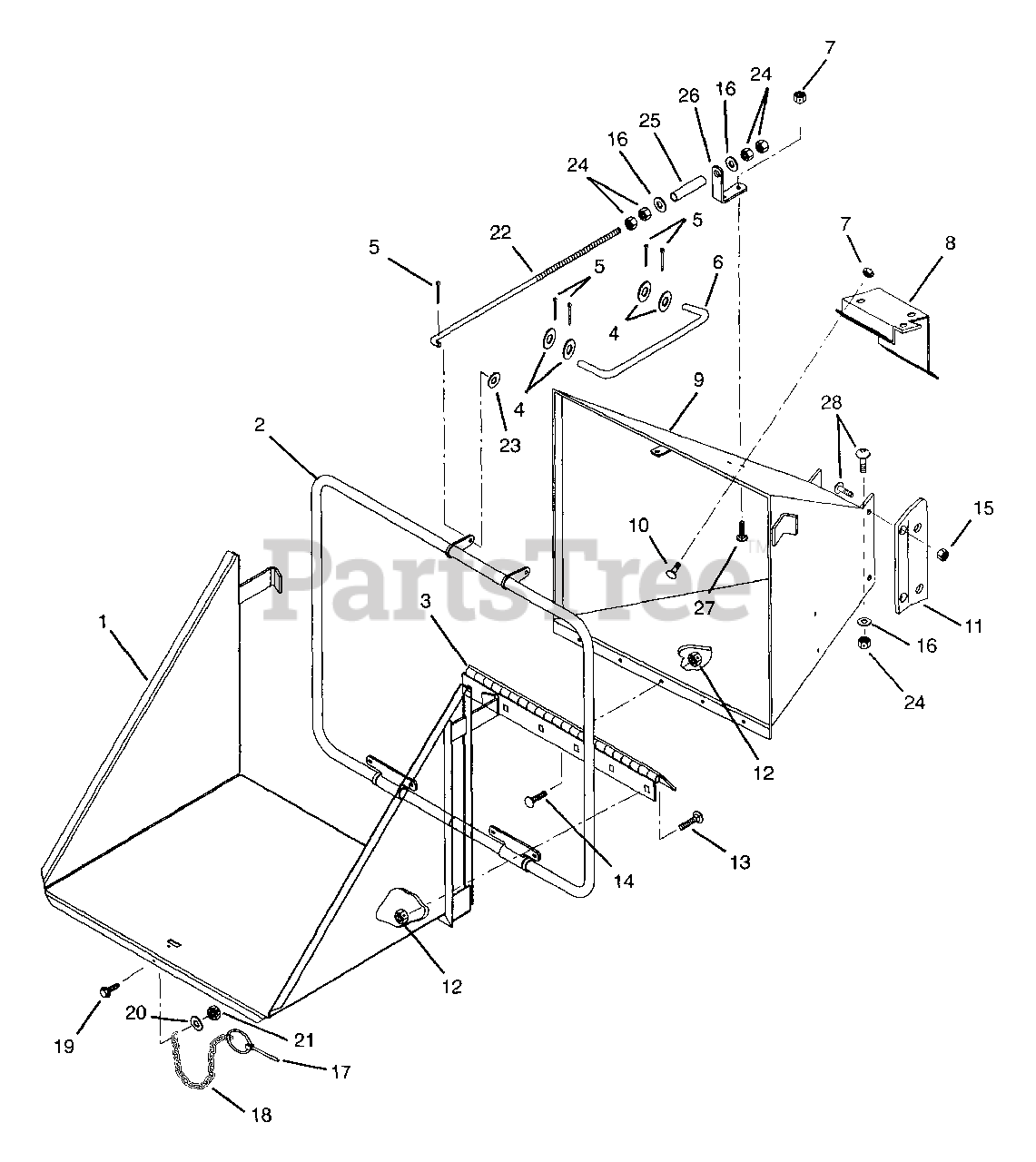

HOPPER Parts Diagram

  • Title

1

Gravely 09310400

APRON WELDMENT

$

$

Not available

2

Gravely 09340500

BAR-FEED CONTROL WELD ASSY

$

$

Not available

3

Gravely 09310800

HINGE

$

$

Not available

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

6

Gravely 09311000

VALVE CONTROL ROD

$

$

Not available

7

Gravely 06528800

NUT-HEX M6X1.0 PL
(Superseded to 06500925)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 09309751

VALVE MOUNT

$

$

Not available

9

Gravely 09310553

HOPPER

$

$

Not available

10

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 09310653

LH SUPPORT

$

$

Not available

Gravely 09310753

RH SUPPORT

$

$

Not available

12

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

14

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 07015800

PIN-LOK .31X2.00

$7.49

$

In Stock, only 2 left!

0

18

Gravely 09335200

CHAIN-5 STRAIGHT LINK #4 YWZC

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

20

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 06553000

NUT, 1/2-20 LUG, GRADE 5
(Superseded to 06517600)

Note: (Models 993007, 013, 022)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 09338300

ROD-VALVE STOP

Note: (Models 993007, 013, 022)

$

$

Not available

23

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06931900

RETAINER CLIP

$

$

Not available

26

Gravely 09337700

BRACKET-VALVE STOP

$

$

Not available

27

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 05924900

BOLT-HEX.38-16X1.0 BTHD

$

$

Not available
