993025 - Gravely PTO Chipper (SN: 000101 & Above) DISCHARGE CHUTE Parts Diagram

PTO Chipper

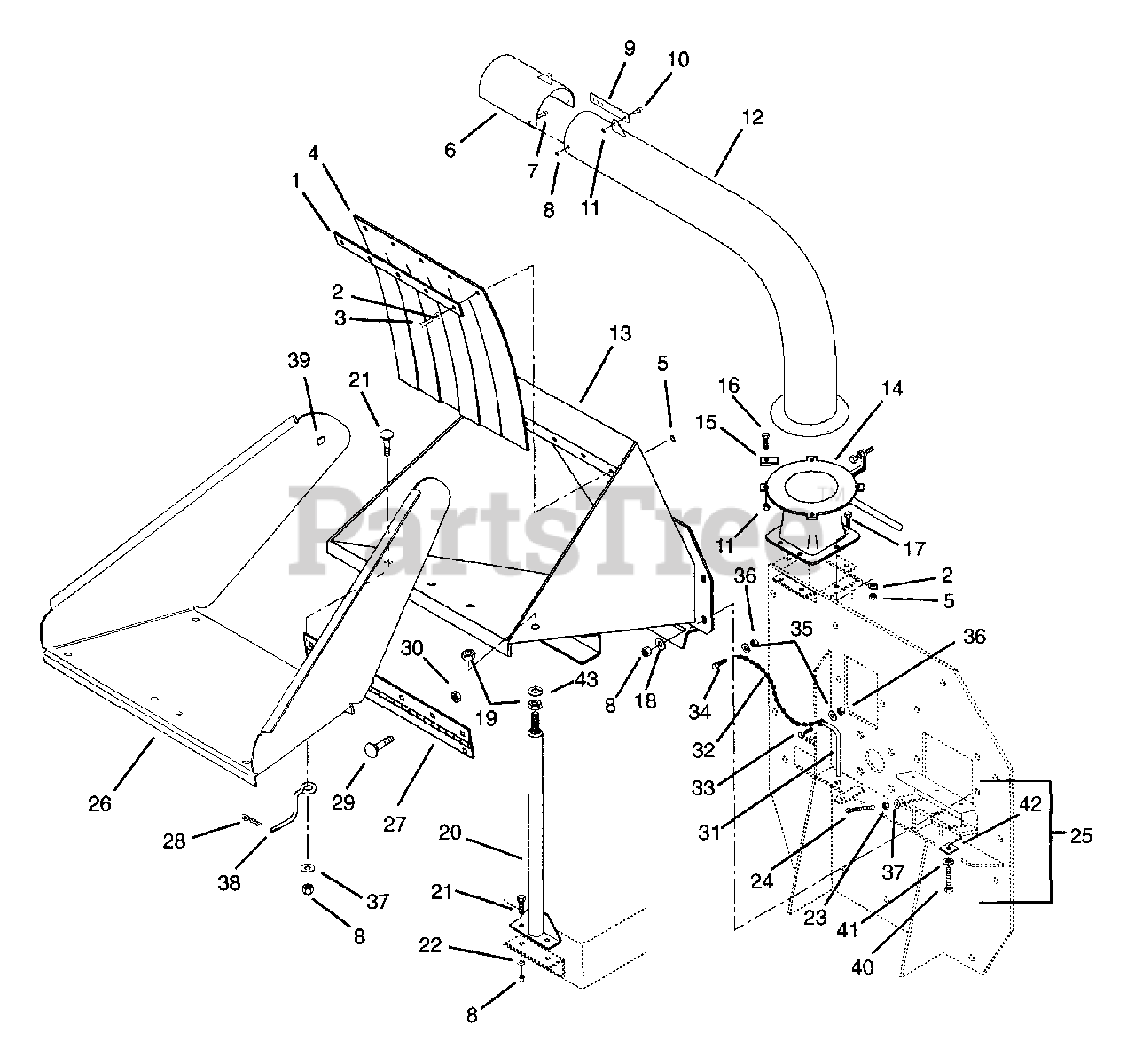

DISCHARGE CHUTE Parts Diagram

  • Title

1

Gravely 04102753

BRACE
(Superseded to 04102700)

$

$

Not available

2

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

4

Gravely 09303900

FLAP-PROTECTIVE

$

$

Not available

5

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 04107353

DEFLECTOR
(Superseded to 04107300)

$

$

Not available

7

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04107253

DEFLECTOR ARM
(Superseded to 04107200)

$

$

Not available

10

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 04107153

DISCHARGE CHUTE
(Superseded to 04107100)

$

$

Not available

13

Gravely 04118300

PTO HOPPER WELDMENT

$

$

Not available

14

Gravely 09349900

NECK-DISCHARGE WELD ASSY

$

$

Not available

15

Gravely 09333353

CLAMP
(Superseded to 09333300)

$

$

Not available

16

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

17

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

18

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06537600

NUT-HEX .75-10 YWZC

$

$

Not available

20

Gravely 04101900

HOPPER STAND

$

$

Not available

21

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06004100

SCR-SET .38-16X3.50 SQH YWZC
(Superseded to 05967800)

$

$

Not available

25

Gravely 59305200

BED KNIFE KIT 210/6PTO/618R

Note: (Includes items 40,41,42)

$

$

Not available

26

Gravely 09311400

SAFETY BONNET

$

$

Not available

27

Gravely 09310800

HINGE

$

$

Not available

28

Gravely 06713200

PIN-HAIR-INT .15X.43X2.75 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

29

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

30

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 09335300

PIN-ARBOR SHAFT LOCK

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 09335400

CHAIN-14 STRAIGHT LINK #4 YWZC

$5.99

$

Usually ships in 4-12 days

0

33

Gravely 06118500

SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

35

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

36

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 09326600

BONNET POSITIONER

$

$

Not available

39

Gravely 07525100

STOP

$2.49

$

In Stock, only 3 left!

0

40

Gravely 05965900

BLT-HEX .38-16X1.25 GR8 YWZC

$

$

Not available

41

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 04127300

DOUBLE HOLE WASHER

$

$

Not available

43

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0
