993025 - Gravely PTO Chipper (SN: 000101 & Above) DRIVE SHAFT Parts Diagram

PTO Chipper

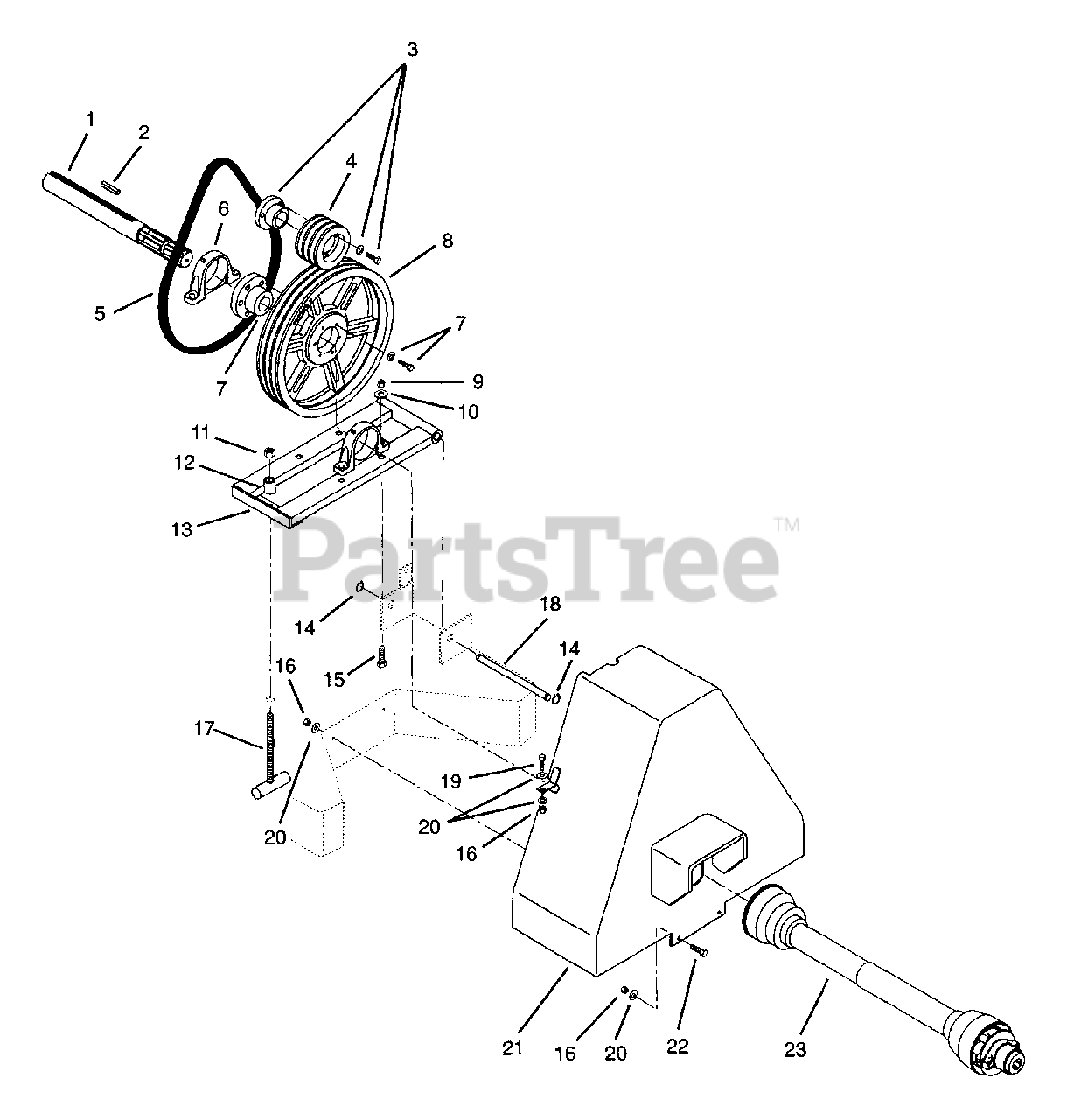

DRIVE SHAFT Parts Diagram

  • Title

1

Gravely 04118900

PTO JACK SHAFT

$

$

Not available

2

Gravely 06605600

KEY-STR .38X2.0X.38

$

$

Not available

3

Gravely 04118800

BUSHING, TAPERED

$

$

Not available

4

Gravely 07314400

PLY-V 3GR A/B 4.20 FOR T BSHG

$

$

Not available

5

Gravely 07233700

OBSOLETE

$

$

Not available

6

Gravely 05417900

BRG-P-BLOCK 1.500X2BLTX2.344

$

$

Not available

7

Gravely 09304500

BUSHING SK X 1-1/2

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 07314200

PLY-V 3GR A/B 15.40 FOR T BSHG

$

$

Not available

9

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 15

0

10

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$3.49

$

In Stock, only 2 left!

0

12

Gravely 04118700

SPACER, ADJUSTER

$

$

Not available

13

Gravely 04118553

SWING ARM
(Superseded to 04118500)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 05706200

RG-RTNG-EXT 1.00X.042

$3.49

$

In Stock, Qty 5

0

15

Gravely 05965500

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 04118600

THREADED T HANDLE

$

$

Not available

18

Gravely 09333600

PIN-SWING ARM

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 04119053

BELT GUARD WELDMENT
(Superseded to 04119000)

$121.99

$

Usually ships in 4-12 days

0

22

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 74100300

PTO KIT

$

$

Not available
