993025 - Gravely PTO Chipper (SN: 000101 & Above) FRAME Parts Diagram

PTO Chipper

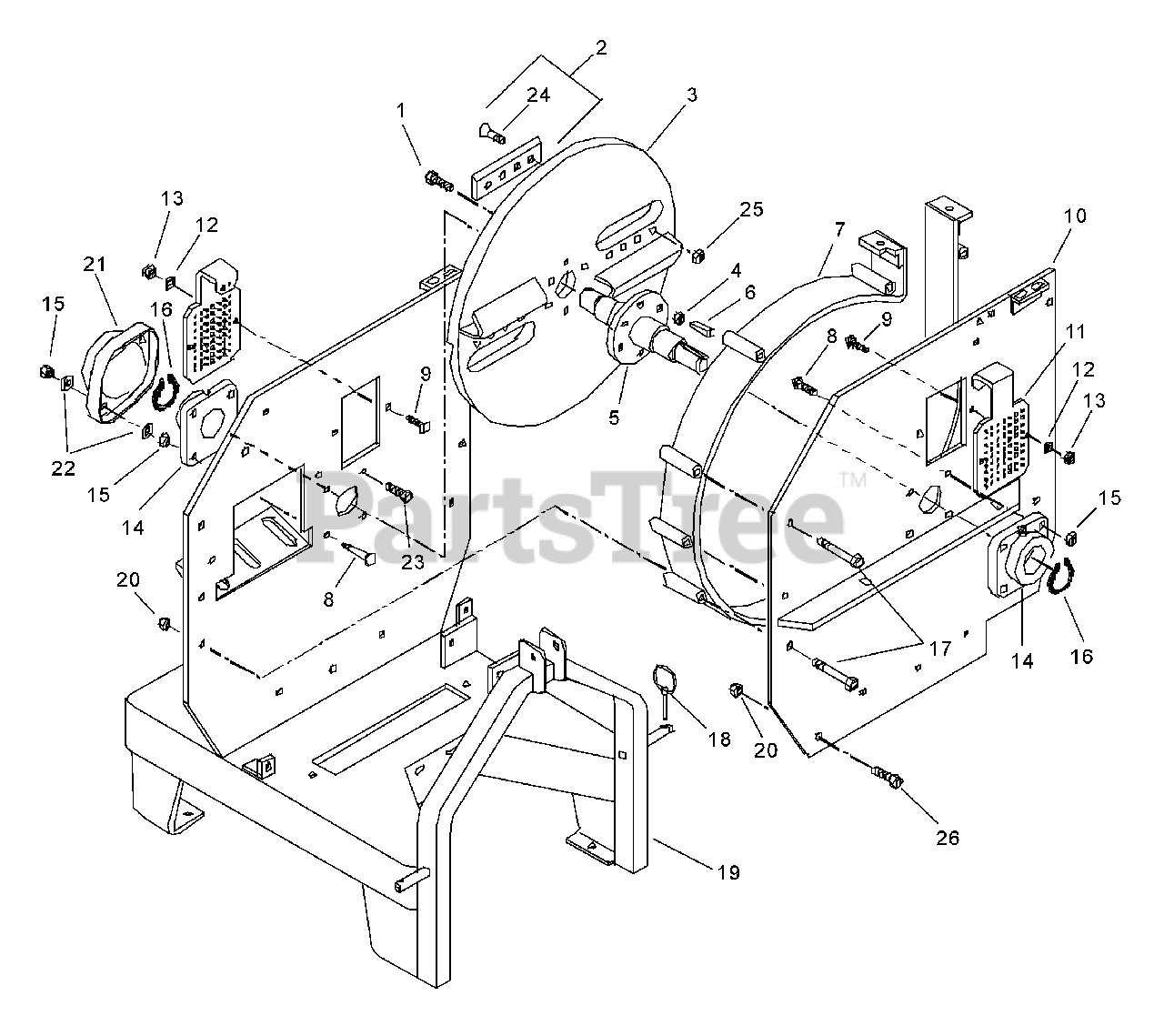

FRAME Parts Diagram

  • Title

1

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 59304100

CHIPPER KNIFE SET 210/PTO

$

$

Not available

3

Gravely 04119300

FLYWHEEL PTO

$969.99

$

Usually ships in 4-12 days

0

4

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 17

0

5

Gravely 04120000

ARBOR SHAFT

$

$

Not available

6

Gravely 06605600

KEY-STR .38X2.0X.38

$

$

Not available

7

Gravely 09349800

RING-FLYWHL HSG DRUM

$

$

Not available

8

Gravely 07009700

BLT-LUG .50-20X1.50 BRZC

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 07009800

BLT-CARR SPLRIB.38-16X1.0GR5PL

$

$

Not available

10

Gravely 09349700

PLATE-FLYWHL HSG DR SIDE WLD/A

$102.99

$

Usually ships in 4-12 days

0

11

Gravely 09348600

PLATE-KNIFE ACCESS

$

$

Not available

12

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 09302100

BRG-FLG 1.500X4X2.047

$

$

Not available

15

Gravely 06530000

NUT-LK-CTR .50-20 YWZC

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 05710400

RG-RTNG-EXT 1.500X.109
(Superseded to 05715500)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 05966100

BLT-HEX .38-16X5.75 GR5 YWZC

$

$

Not available

18

Gravely 04119100

PIN-W/RING .43 DIA X 1.50

$

$

Not available

19

Gravely 09333500

FRAME-PTO PROCHIP WELDMENT

$581.99

$

Usually ships in 4-12 days

0

20

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 09308900

BEARING COVER

$30.99

$

Usually ships in 4-12 days

0

22

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 07029400

BLT-LUG .50-20X3.00 YWZC

$

$

Not available

24

Gravely 05924800

BLT-FL-SKH.50-13X1.75 GR8 BP&O

$

$

Not available

25

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$4.99

$

In Stock, Qty 5

0

26

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 12

0
