993025 - Gravely PTO Chipper (SN: 000101 & Above) FRAME Parts Diagram

PTO Chipper

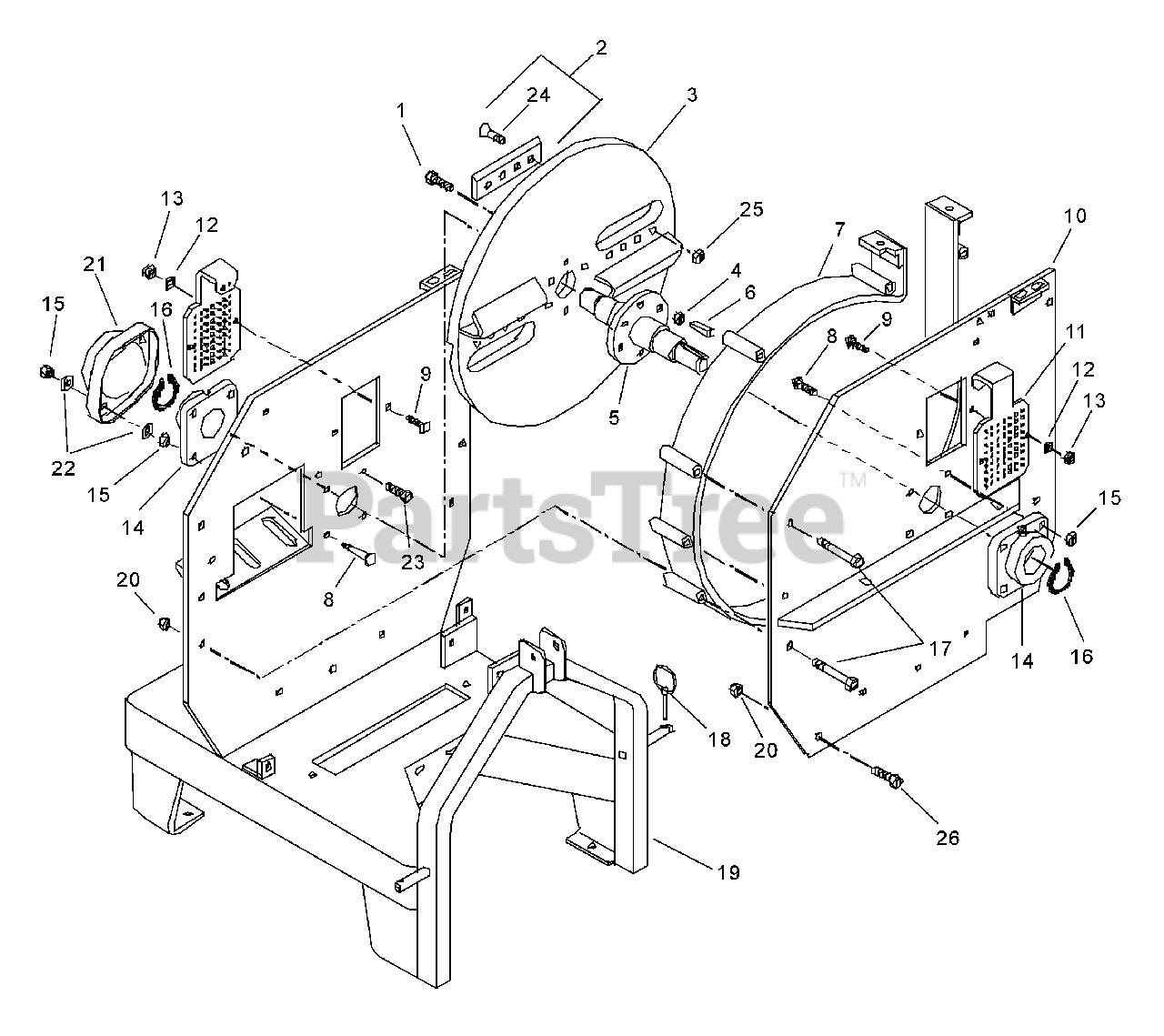

FRAME Parts Diagram

  • Title

1

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 59304100

Chipper Knife Kit 210/PTO

$

$

Not available

3

Gravely 04119300

Flywheel PTO

$969.99

$

Usually ships in 4-12 days

0

4

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 04120000

Arbor Shaft

$

$

Not available

6

Gravely 06605600

Key-Straight .38 x 2.0 x .38

$

$

Not available

7

Gravely 09349800

Ring-Flywheel Housing Drum

$

$

Not available

8

Gravely 07009700

Bolt-Lug .50-20 x 1.50

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 07009800

Bolt-Carriage Special Rib .38-16 x 1.0

$

$

Not available

10

Gravely 09349700

Plate-Flywheel Housing Side

$102.99

$

Usually ships in 4-12 days

0

11

Gravely 09348600

Plate-Knife Access

$

$

Not available

12

Gravely 06308800

Washer-Lock .375 x .155
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

13

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 7

0

14

Gravely 09302100

Four Hole Flange Bearing

$

$

Not available

15

Gravely 06530000

Nut-Locking-Center .50-20

$2.49

$

In Stock, only 1 left!

0

16

Gravely 05710400

Ring-Retaining-External 1.500 x .109
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 05966100

Bolt-Hex .38-16 x 5.75

$

$

Not available

18

Gravely 04119100

Yoke Pin

$

$

Not available

19

Gravely 09333500

Frame - PTO Pro Chip Weldment

$581.99

$

Usually ships in 4-12 days

0

20

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09308900

Bearing Cover

$30.99

$

Usually ships in 4-12 days

0

22

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07029400

Bolt-Lug .50-20 x 2.50

$

$

Not available

24

Gravely 05924800

Bolt-Flat Socket Head .50-13 x 1.75 Grade 8

$

$

Not available

25

Gravely 06528200

Nut-Locking .50-13 Grade C

$3.99

$

In Stock, only 2 left!

0

26

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0
