993025 - Gravely PTO Chipper (SN: 000101 & Above) WIRING HARNESS Parts Diagram

PTO Chipper

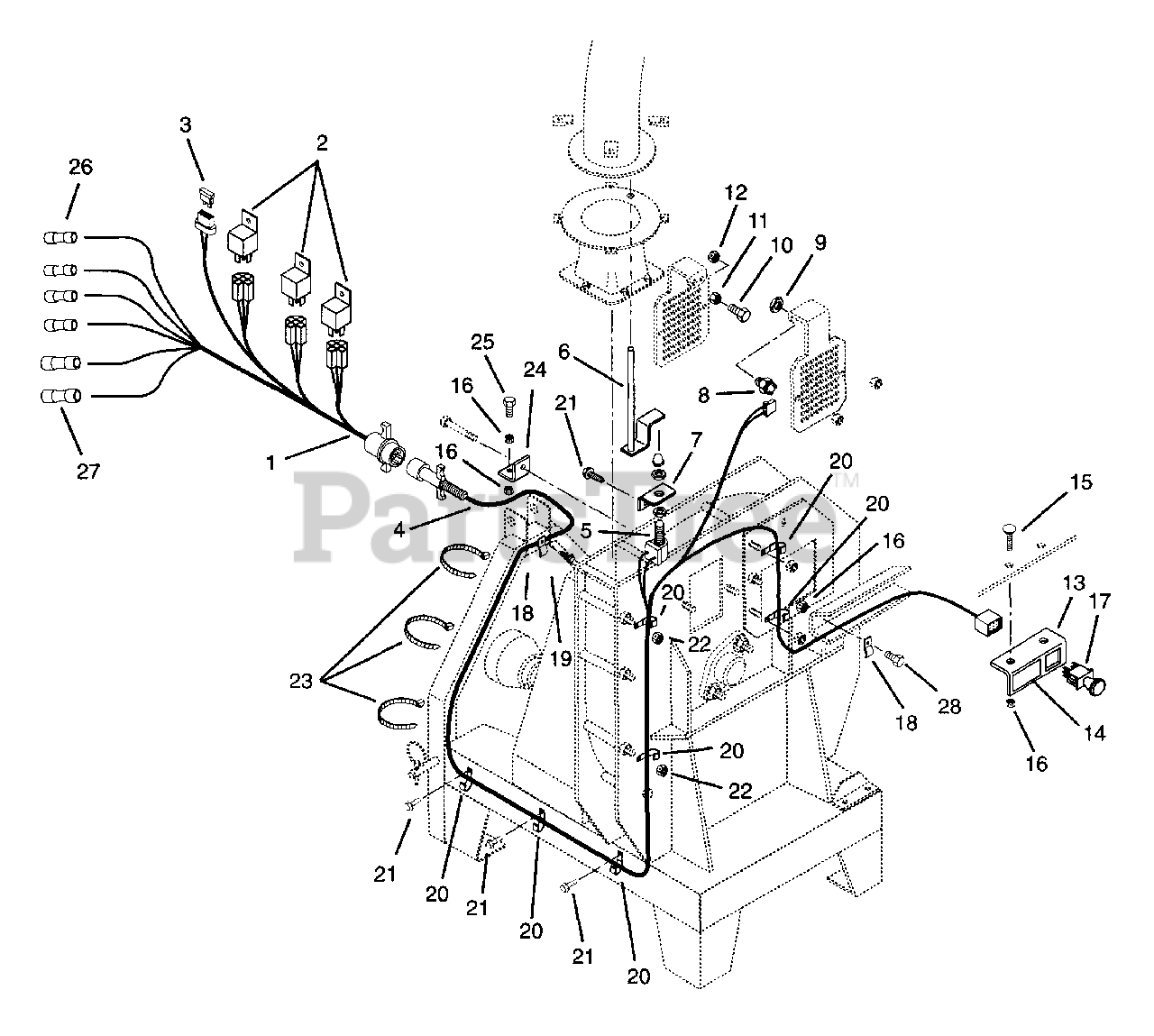

WIRING HARNESS Parts Diagram

  • Title

1

Gravely 09350200

Harness-Wiring PTO6 - Tractor

Note: (Includes items 2 & 3)

$

$

Not available

2

Gravely 03042800

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 040216

Fuse-25 Amp
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

4

Gravely 09350100

Harness-Wiring PTO6 - Chipper

Note: (Includes item 5)

$

$

Not available

5

Gravely 09348500

Switch-Sealed Safety

$

$

Not available

6

Gravely 09350000

Actuator-Switch

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 09348300

Bracket-Switch and Relay

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 01526100

Switch, Safety

$55.99

$

Usually ships in 4-12 days

0

9

Gravely 07015100

Nut, Stamped .56-18

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

11

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

12

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09348700

Bracket-Stop Switch

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 07780600

Decal, Emergency Stop

$

$

Not available

15

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

16

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 01545600

Switch, Emergency Stop

$22.99

$

In Stock, Qty 10

0

18

Gravely 06904800

Clip

$

$

Not available

19

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 11

0

21

Gravely 07412900

Screw-Tapping .38-13 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

22

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 040038

Tie Wrap
(Superseded to 03129300)

$27.99

$

Usually ships in 4-12 days

0

24

Gravely 08872600

L-Bracket

$

$

Not available

25

Gravely 05952500

Bolt-Hex .25-20 x 1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

26

Gravely 04126600

Butt Connector 16-14

$

$

Not available

27

Gravely 04107700

Butt Connector 12-10 Gauge

$

$

Not available

28

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0
