993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Battery And Fuel Tank Parts Diagram

Pro-Chip Chipper

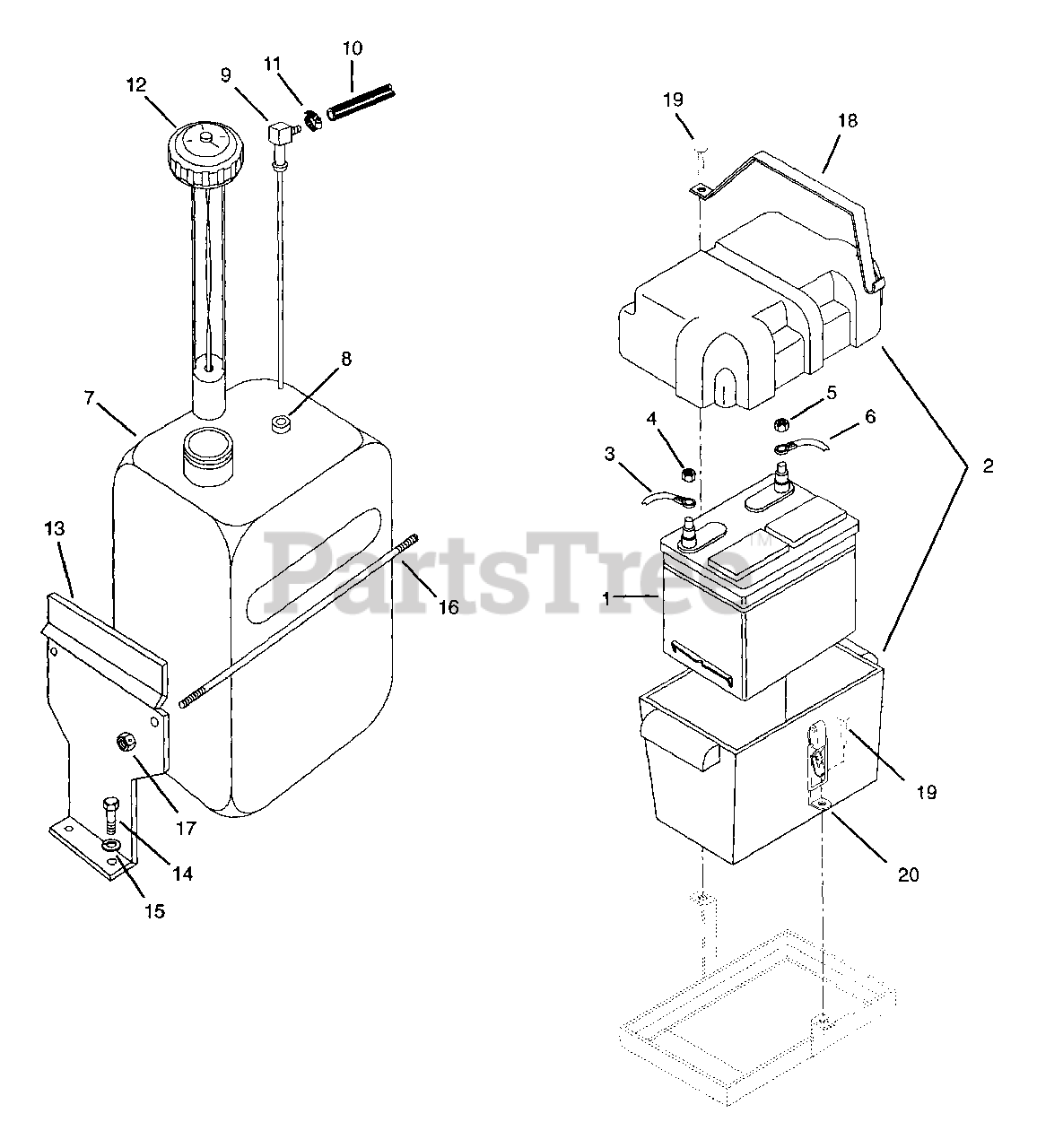

Battery And Fuel Tank Parts Diagram

  • Title

1

Gravely 09305100

Battery

$

$

Not available

2

Gravely 09305200

Battery Box

$

$

Not available

3

Gravely 09304200

Battery Cable (Negative)

Note: (Negative)

$

$

Not available

4

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

5

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

6

Gravely 09304300

Battery Cable (Positive)

Note: (Positive)

$

$

Not available

7

Gravely 047612

Tank, Fuel
(Superseded to 08983000)

$

$

Not available

8

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 047614

Fitting, Tank
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 021134

Gas Line - Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 047615

Gauge, Fuel
(Superseded to 08983200)

$47.99

$

In Stock, only 1 left!

0

13

Gravely 049296

Weldment, Tank Bracket
(Superseded to 08987900)

$

$

Not available

14

Gravely 05947000

Bolt-Hex .32-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

15

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09037800

Rod, Tank

$29.99

$

Usually ships in 4-12 days

0

17

Gravely 06529800

Nut-Lock-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09329351

Strap-Battery Hold Down

$

$

Not available

19

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

20

Gravely 09329451

Latch Assembly-Battery Hold Down

$

$

Not available
