993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Battery And Fuel Tank Parts Diagram

Pro-Chip Chipper

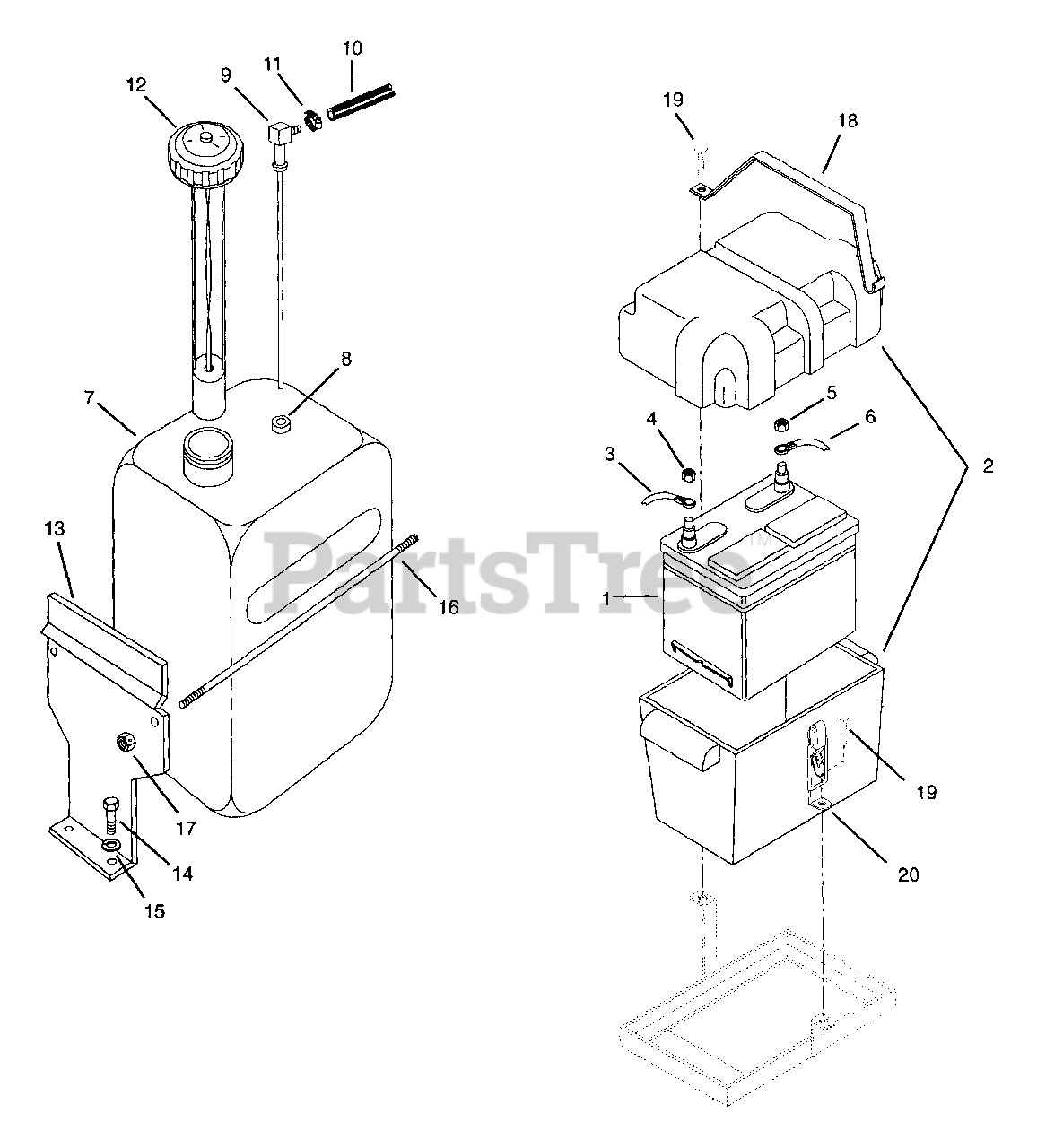

Battery And Fuel Tank Parts Diagram

  • Title

1

Gravely 09305100

BATTERY MARINE TYPE

$

$

Not available

2

Gravely 09305200

BATTERY BOX

$

$

Not available

3

Gravely 09304200

BATTERY CABLE

Note: (Negative)

$

$

Not available

4

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

5

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09304300

BATTERY CABLE

Note: (Positive)

$

$

Not available

7

Gravely 047612

TANK,FUEL
(Superseded to 08983000)

$

$

Not available

8

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

13

Gravely 049296

WLDMT,TANK BRACKET
(Superseded to 08987900)

$

$

Not available

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09037800

ROD, TANK

$30.99

$

Usually ships in 4-12 days

0

17

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 09329351

STRAP-BATTERY HOLD-DOWN

$

$

Not available

19

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0

20

Gravely 09329451

LATCH ASSY-BATTERY HOLD-DOWN

$

$

Not available
