993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Chip Chipper

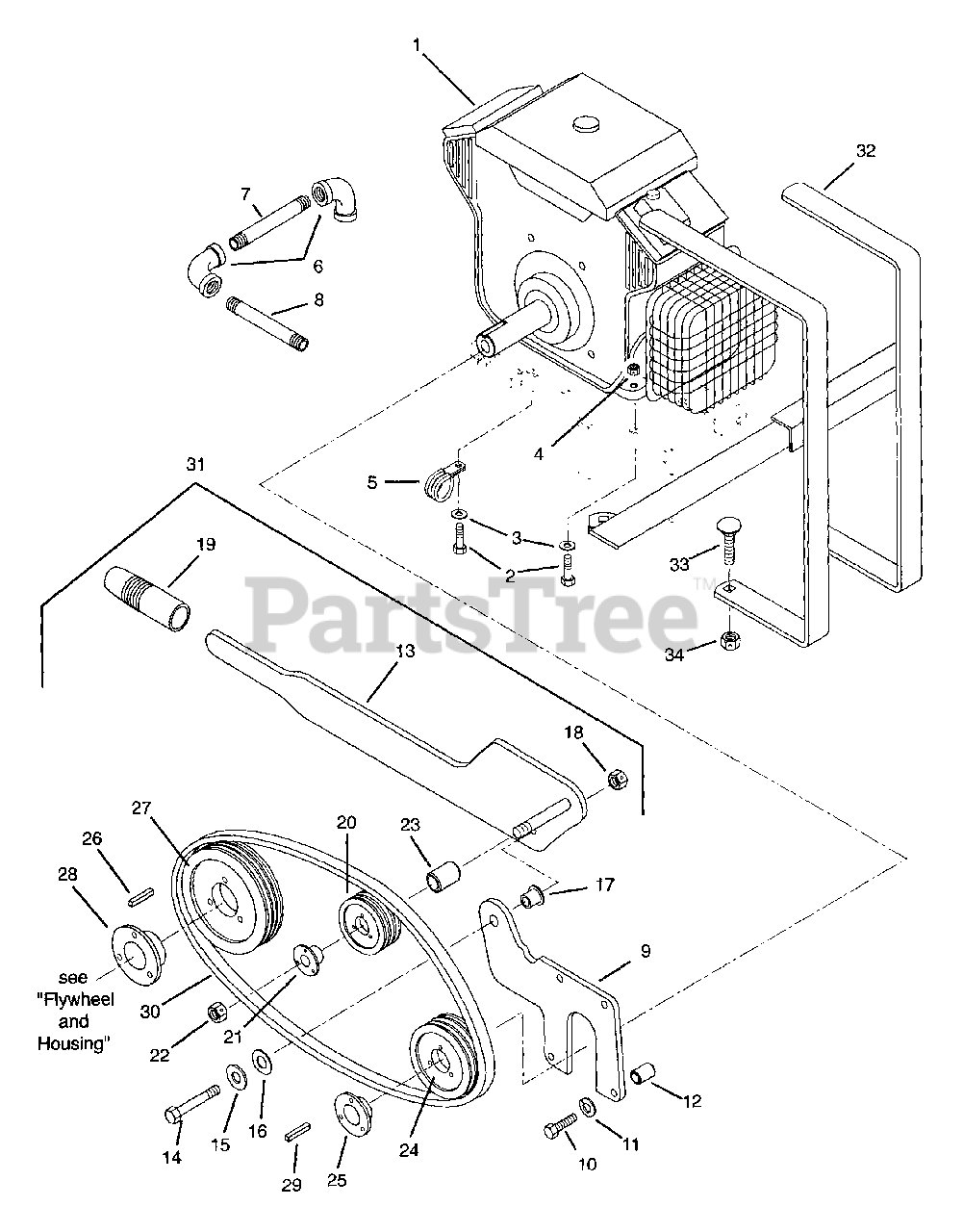

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08242800

ENG 18HP KOHLER COMD. PS-62556

$

$

Not available

2

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09303700

CLAMP-LINE

$

$

Not available

6

Gravely 07023500

ELBOW .375-18 NPTF

$

$

Not available

7

Gravely 03475800

NIPPLE
(Superseded to 07000830)

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 09304100

NIPPLE

$

$

Not available

9

Gravely 04129051

ENGINE BRACKET WELDMENT

$

$

Not available

10

Gravely 05969400

BLT-HEX .44-14X2.25 GR5 YWZC

$

$

Not available

11

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 09344600

SPACER .47X.75X1.18

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 04138151

CLUTCH HANDLE WELDMENT

$

$

Not available

14

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

15

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06425100

WSHR .50 BRONZE (ND)

$

$

Not available

17

Gravely 05511000

BSHG-FLG .500X.750X.625X.937

$11.99

$

In Stock, Qty 5

0

18

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

19

Gravely 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

20

Gravely 07316500

PLY-? 3P3V4.1

$

$

Not available

21

Gravely 09304900

BUSHING-IDLER W/BRGS & BOLTS

$

$

Not available

22

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 2 left!

0

23

Gravely 09304700

SPACER .630X.878X1.000

$

$

Not available

24

Gravely 07316400

PLY-? 3-3V41

$

$

Not available

25

Gravely 09304600

BUSHING SH 1 1/8

$

$

Not available

26

Gravely 06605600

KEY-STR .38X2.0X.38

$

$

Not available

27

Gravely 07316600

FLYWHEEL SHEAVE 3-3V80

$

$

Not available

28

Gravely 09304500

BUSHING SK X 1-1/2

$43.99

$

Usually ships in 4-12 days

0

29

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

30

Gravely 07219400

OBSOLETE

$

$

Not available

31

Gravely 74100700

IDLER CLUTCH KIT - 1 1/8 IN.

Note: (Contains Items 9-11,13-30)

$

$

Not available

32

Gravely 09344700

GUARD-ENGINE HEAT WELD ASSY

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
