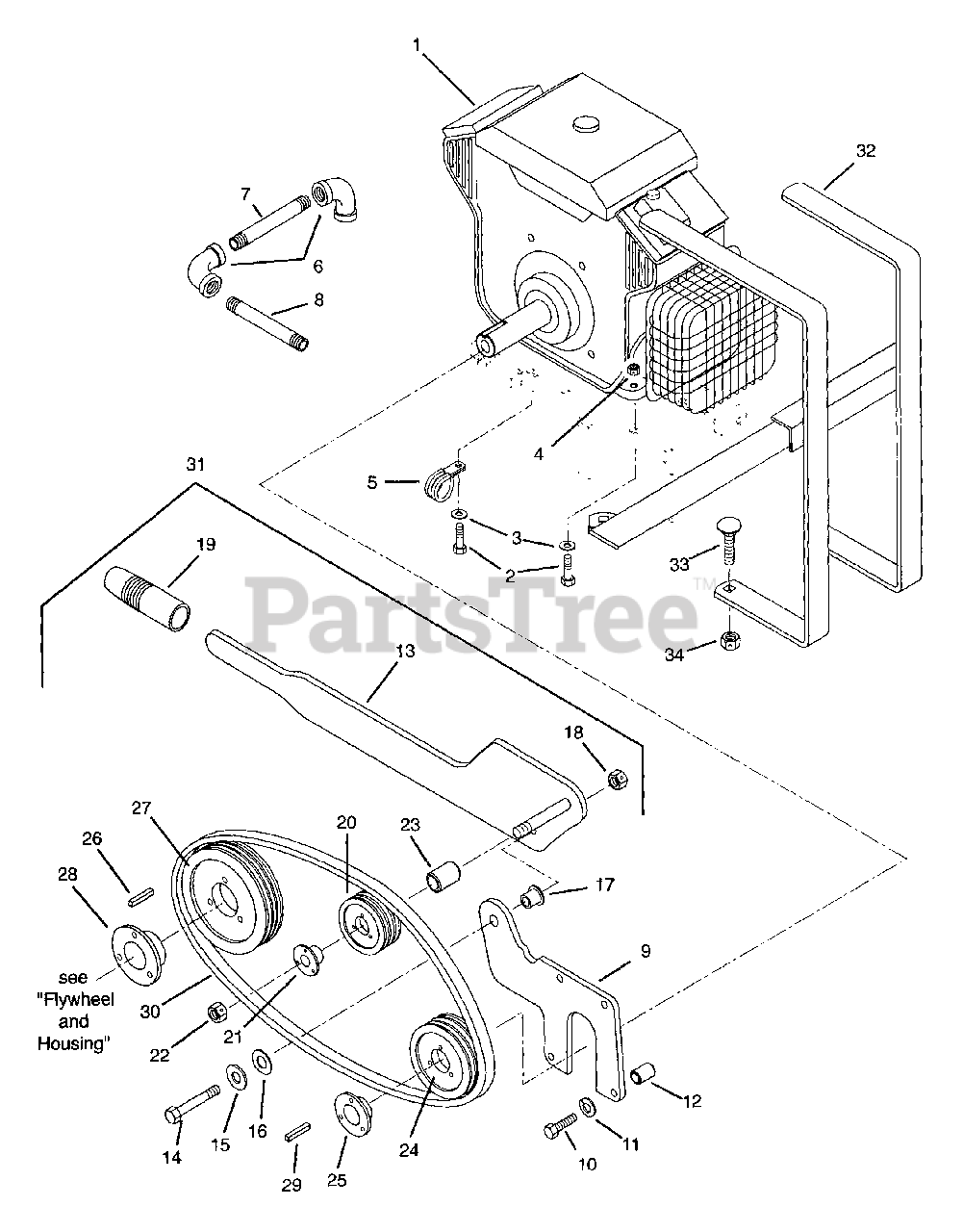

993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Chip Chipper

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08242800

Engine Kohler 18 HP Spec. # PS62556

$

$

Not available

2

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

3

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09303700

Clamp

$

$

Not available

6

Gravely 07023500

Elbow .375-18

$

$

Not available

7

Gravely 03475800

Nipple
(Superseded to 07000830)

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 09304100

Nipple

$

$

Not available

9

Gravely 04129051

Engine Bracket Weldment

$

$

Not available

10

Gravely 05969400

Bolt-Hex .44-14 x 2.25 Grade 5

$

$

Not available

11

Gravely 06309300

Washer-Lock .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

12

Gravely 09344600

Spacer .47 x .75 x 1.18

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 04138151

Clutch Handle Weldment

$

$

Not available

14

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 06441900

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06425100

Washer .50 Bronze

$

$

Not available

17

Gravely 05511000

Bushing-Flange .500 x .750 x .625 x .937

$9.99

$

In Stock, Qty 5

0

18

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

19

Gravely 07500600

Grip
(Superseded to 07500113)

$

$

Not available

20

Gravely 07316500

Pulley 3P 3V4.1

$

$

Not available

21

Gravely 09304900

Idler with Bearings and Bolts

$

$

Not available

22

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

In Stock, only 1 left!

0

23

Gravely 09304700

Spacer .630 x .878 x 1.000

$

$

Not available

24

Gravely 07316400

Pulley

$

$

Not available

25

Gravely 09304600

Bushing-SH 1-1/8 in.

$

$

Not available

26

Gravely 06605600

Key-Straight .38 x 2.0 x .38

$

$

Not available

27

Gravely 07316600

Flywheel Sheave 3-3V80

$

$

Not available

28

Gravely 09304500

Bushing, Sk x 1-1/2 in.

$43.99

$

Usually ships in 4-12 days

0

29

Gravely 06603400

Key-Square .25 x 1.25 x .25 SAE

$3.99

$

In Stock, only 1 left!

0

30

Gravely 07219400

V-Belt 3/3VX500

$

$

Not available

31

Gravely 74100700

Idler Clutch Kit 1-1/8 in.

Note: (Contains Items 9-11,13-30)

$

$

Not available

32

Gravely 09344700

Guard-Engine Heat Weldment Assembly

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 06215500

Bolt-Round Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

34

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
