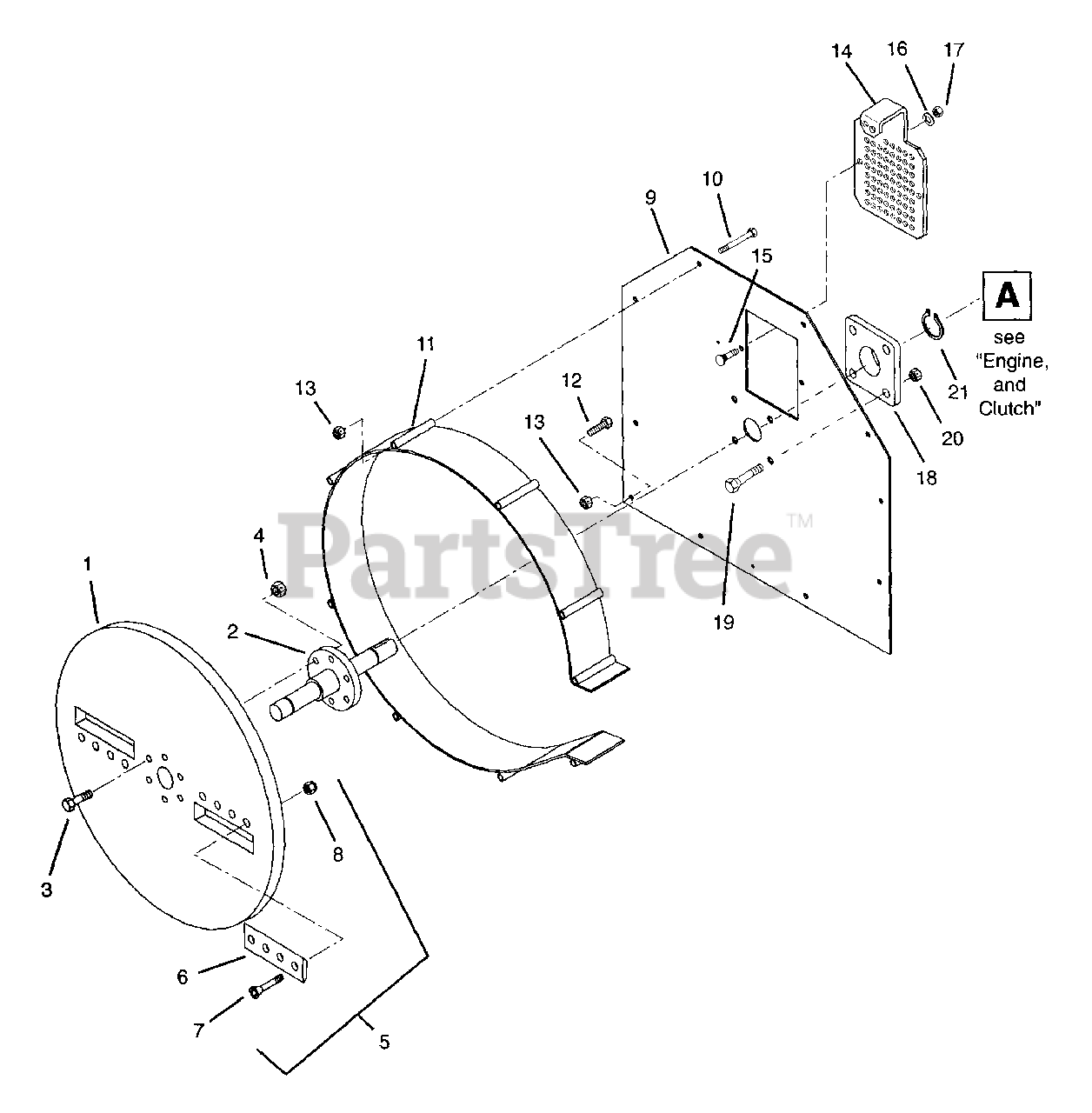

993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Flywheel And Housing Parts Diagram

Pro-Chip Chipper

Flywheel And Housing Parts Diagram

  • Title

1

Gravely 09302300

FLYWHEEL

$1429.99

$

Usually ships in 4-12 days

0

2

Gravely 09302200

SHAFT-FLYWHEEL

$

$

Not available

3

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

4

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

5

Gravely 59304100

CHIPPER KNIFE SET 210/PTO

Note: (Contains Items 6-8)

$

$

Not available

6

Chipper Knife

$

$

Not available

7

Gravely 05924800

BLT-FL-SKH.50-13X1.75 GR8 BP&O

$

$

Not available

8

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

9

Gravely 04100900

BLOWER SIDE LH
(Superseded to 04100953)

$

$

Not available

10

Gravely 05966100

BLT-HEX .38-16X5.75 GR5 YWZC

$

$

Not available

11

Gravely 04100800

DRUM STRAP

$

$

Not available

12

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09348600

PLATE-KNIFE ACCESS

$

$

Not available

15

Gravely 07009800

BLT-CARR SPLRIB.38-16X1.0GR5PL

$

$

Not available

16

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09302100

BRG-FLG 1.500X4X2.047

$

$

Not available

19

Gravely 07009700

BLT-LUG .50-20X1.50 BRZC

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 06530000

NUT-LK-CTR .50-20 YWZC

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05710400

RG-RTNG-EXT 1.500X.109
(Superseded to 05715500)

$6.49

$

Usually ships in 4-12 days

0
